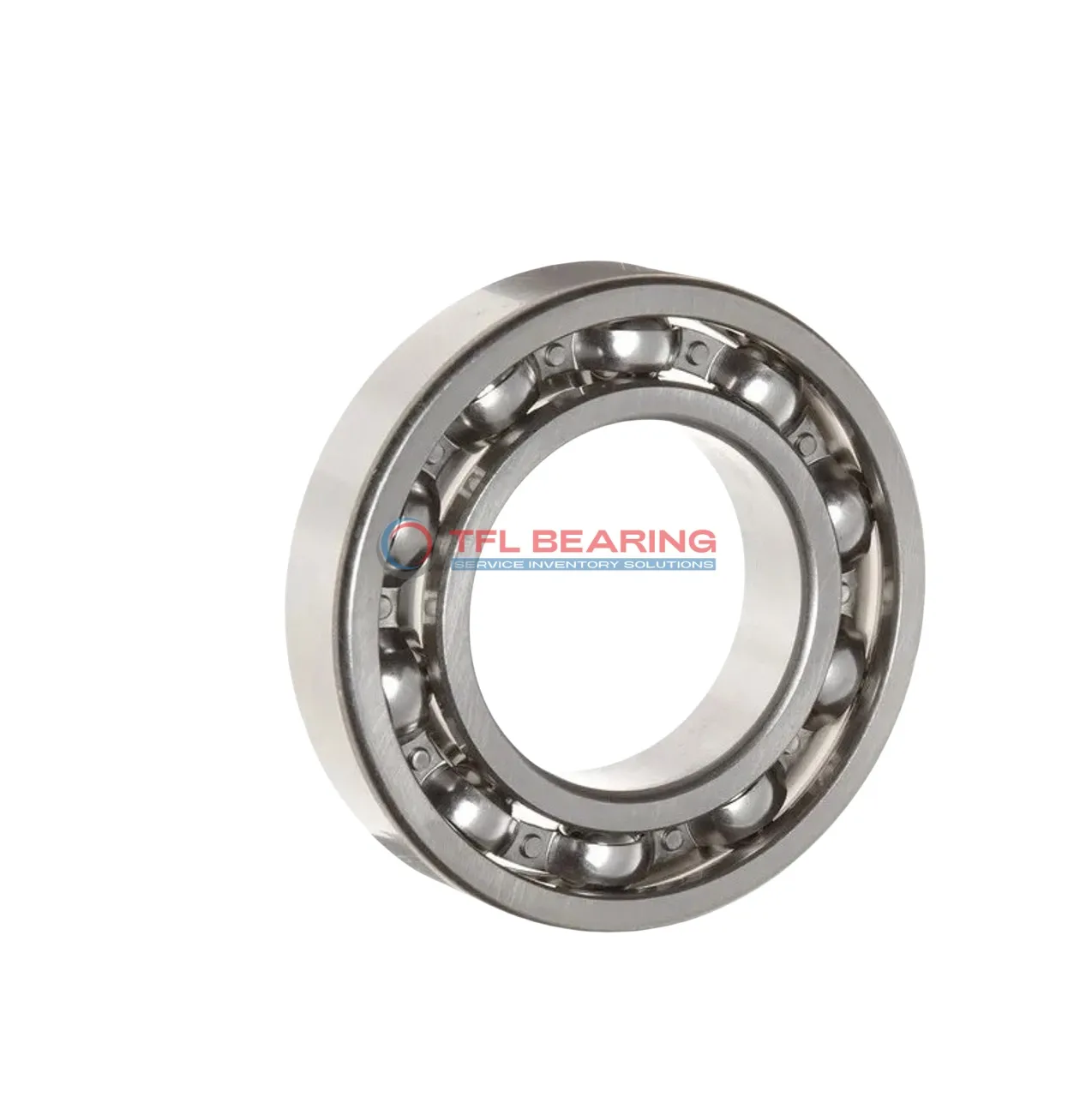

Single Row Deep Groove Ball Bearings 61968 MA

Single Row Deep Groove Ball Bearings 61968 MA

The 61968 MA is a single-row deep groove ball bearing with a 340mm bore and 460mm outer diameter, built from sturdy chrome steel for reliable performance. It handles radial loads up to 63171 lbf and operates smoothly at speeds up to 2200 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability under heavy use. The bearing works efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for industrial machinery or large equipment where high radial loads are common.

Weighing 26.5kg, it’s a robust option for demanding applications. Compliant with RoHS and REACH standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61968 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 340 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 56 mm
  • Width Tolerance -0.4mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 63171 lbf
  • Static Radial Load 95544 lbf
  • Max Speed 2200 rpm
  • Weight 26.5 kg
  • price（$） 1759.761
Single Row Deep Groove Ball Bearings 61968 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61968 MA Bearing

61968 MA Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 63171 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.

The stainless steel cage maintains ball alignment, reducing friction and extending bearing life.
With a maximum speed of 2,200 rpm, it balances performance and durability in various applications.

61968 MA Bearing operates in temperatures from -30° to 120°C, suitable for diverse environments.
Its P6 tolerance class ensures precision and reliability in demanding radial load scenarios.

Application

Industrial Uses of 61968 MA Bearing
The 61968 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its robust design handles significant radial loads. Its open seal type allows for easy lubrication, ensuring long service life in demanding environments.

In automotive applications, 61968 MA Bearing supports components like large gearboxes and drivetrains, providing reliable performance under high stress. The P6 tolerance class ensures precise operation, making it suitable for critical systems.

For automation equipment, 61968 MA Bearing’s stainless steel cage and chrome steel construction offer durability in robotic arms and conveyor systems. Its high static radial load capacity makes it a dependable choice for repetitive motion tasks.

Where Is 61968 MA Bearing Used?
You’ll often find 61968 MA Bearing in wind turbines, where its ability to handle dynamic radial loads is essential for smooth operation. The wide temperature range also makes it suitable for outdoor applications in varying climates.

In construction machinery, 61968 MA Bearing supports heavy equipment like cranes and excavators, thanks to its high load capacity. The metric sizing ensures compatibility with a range of industrial equipment worldwide.
