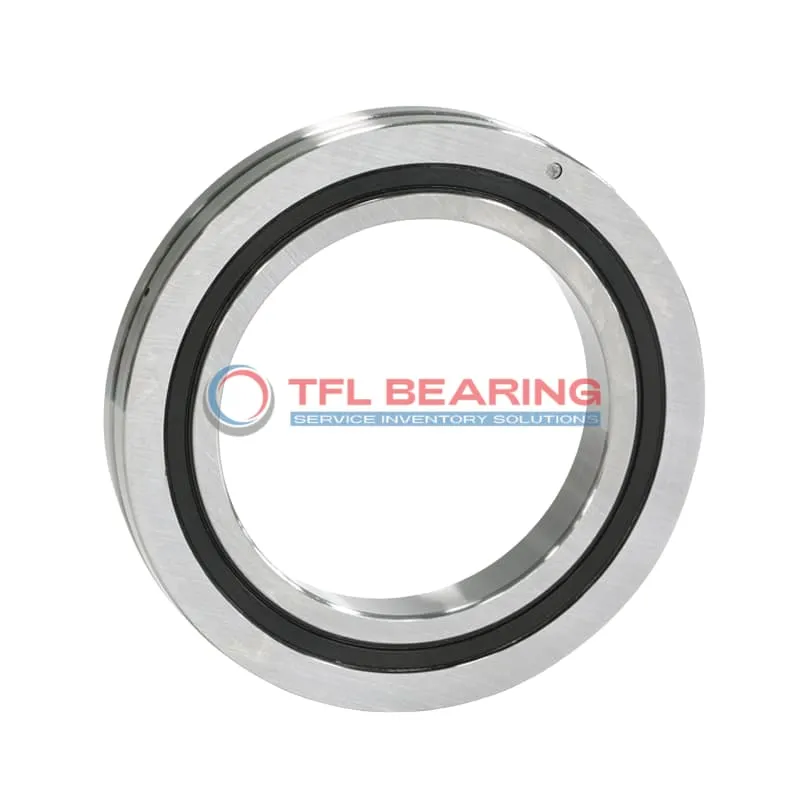

CRBH Crossed Roller Bearings CRBHV7013A

CRBH Crossed Roller Bearings CRBHV7013A

The CRBHV7013A is a crossed roller bearing with a compact 70mm bore and 100mm outer diameter, crafted from sturdy steel for reliable performance. It handles combined loads up to 20.1 kN and fits snugly with a press-fit mounting.

Its open design requires lubrication but offers easy maintenance, while the single-row construction ensures smooth operation. The bearing works in temperatures from 0°F to 230°F, making it versatile for various conditions.

With an ABEC5 rating (also available in ABEC7/9), it’s precise enough for applications like robotics or machine tools. Weighing just 0.38kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

The mounting dimensions (76mm and 94mm) simplify installation, and its crossed roller design provides excellent stability under load. Ideal for precision equipment where space and accuracy matter.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBHV7013A
  • Brand TFL
  • Size 70 mm x 100 mm x 13 mm
  • Bore Dia 70 mm
  • Outer Dia 100 mm
  • Width 13 mm
  • R(min) 0.6 mm
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Mounting Dimensions(da) 76 mm
  • Mounting Dimensions(Da) 94 mm
  • Basic Load Rating C 20 .100 kN
  • Basic Load Rating Co 27.700 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.38 Kg

Features

Performance Features of CRBHV7013A Bearing

CRBHV7013A Bearing is designed for combined load applications, offering reliable performance with its single-row construction.
The steel rings and rollers provide a basic load rating of 20.100 kN, ensuring durability under stress.

Its compact 70 mm x 100 mm x 13 mm size makes it suitable for space-constrained installations.
The press-fit shaft mounting simplifies assembly, reducing installation time.

CRBHV7013A Bearing operates efficiently within a temperature range of 0 to 230°F.
With an ABEC5 rating, it delivers precision for high-performance applications.

The open design allows for easy lubrication, maintaining smooth operation.
Its 0.6 mm chamfer ensures compatibility with various mounting configurations.

Application

Industrial Uses of CRBHV7013A Bearing
CRBHV7013A Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The steel construction ensures durability even in demanding industrial environments.

What Makes CRBHV7013A Bearing a Preferred Choice?
In robotics, CRBHV7013A Bearing offers smooth motion control for robotic arms, thanks to its combined load handling capability. Its compact size makes it ideal for space-constrained applications.

Built for Heavy-Duty Use: CRBHV7013A Bearing
For automation systems, CRBHV7013A Bearing supports high-precision linear motion in equipment like CNC machines. The press fit mounting ensures secure installation during high-speed operations.

Medical vs Industrial: Where CRBHV7013A Bearing Excels
CRBHV7013A Bearing finds use in medical imaging devices, where its ABEC5 precision meets strict accuracy requirements. In industrial settings, it handles heavy loads in packaging machinery with reliability.

Perfect Fit for Automation: CRBHV7013A Bearing
CRBHV7013A Bearing works well in 3D printers, providing stable movement for print heads. The open design allows for easy lubrication, extending service life in continuous operation.
