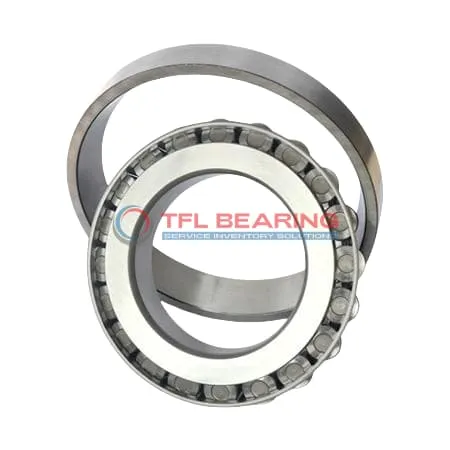

TS (Single Row Tapered Roller Bearings) (Imperial) 570X-563X

TS (Single Row Tapered Roller Bearings) (Imperial) 570X-563X

The 570X-563X is a single-row tapered roller bearing with a 2.76″ bore and 5″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it a versatile choice.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive applications where combined loads are common.

Weighing 4.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 570X-563X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.7559" x 5" x 1.4376"
  • Bore Dia 2.7559"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.12"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 3.74"
  • Cone Backface Backing Diameter 3.31"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.49"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 570X
  • Cup Part Number 563X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.2 lb

Features

Performance Features of 570X-563X Bearing

570X-563X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring reliable performance in demanding applications.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

570X-563X Bearing requires lubrication, but its robust design minimises maintenance needs.
The standard radial clearance allows for smooth operation in diverse industrial settings.

Application

Industrial Uses of 570X-563X Bearing
570X-563X Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 570X-563X Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial gearboxes, 570X-563X Bearing’s open design allows for easy lubrication, extending service life in high-speed operations. The steel cage adds stability, reducing wear over time.

What Makes 570X-563X Bearing a Preferred Choice?
570X-563X Bearing stands out in agricultural machinery, where its robust design copes with uneven loads and harsh conditions. The standard radial clearance offers flexibility for various setups.

In mining equipment, 570X-563X Bearing’s high dynamic radial load capacity ensures smooth operation under extreme stress. Its compatibility with Timken models simplifies replacements and maintenance.
