TS (Single Row Tapered Roller Bearings) (Imperial) 396A-393A

TS (Single Row Tapered Roller Bearings) (Imperial) 396A-393A

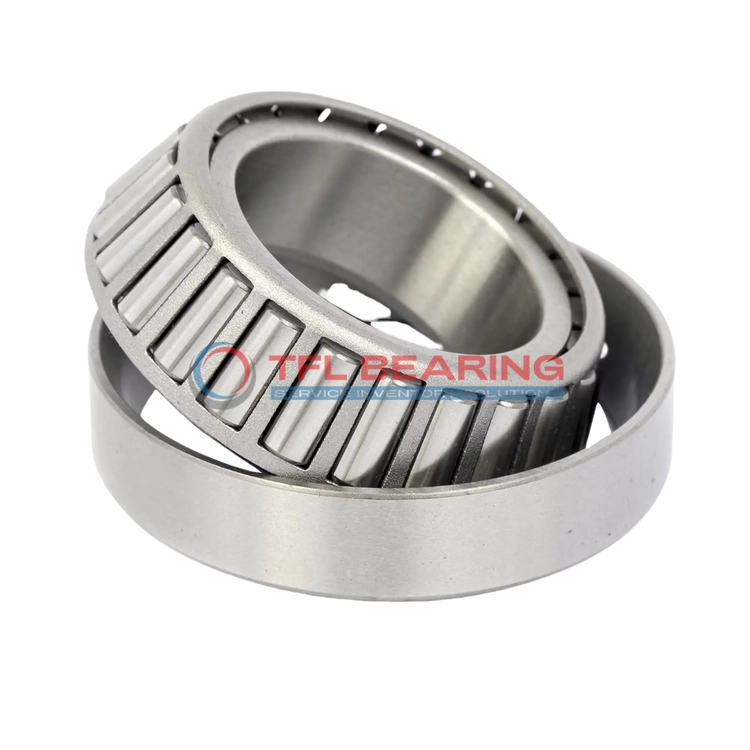

The 396A-393A is a single-row tapered roller bearing with a 1.7712″ bore and 4.4375″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22200 lbf radially and 3970 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are present.

Weighing 2.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most industrial environments.

The standard radial clearance and ABEC-1 rating ensure consistent performance. Its tapered roller design provides excellent load distribution, reducing wear over time.

Perfect for maintenance tasks or new installations, this bearing balances strength and ease of use. Its dimensions and tolerances make it a precise fit for demanding applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 396A-393A
  • Brand TFL
  • Interchangeable Timken
  • Size 1.7712" x 4.4375" x 0.8751"
  • Bore Dia 1.7712"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.866"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8751"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.24"
  • Cone Backface Backing Diameter 2.48"
  • Cup Frontface Backing Diameter 4.15"
  • Cup Backface Backing Diameter 3.94"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.05"
  • Effective Center Location -0.03"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 396A
  • Cup Part Number 393A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 395
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22200 lbf
  • Static Radial Load 28100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5760 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3970 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.5 lb

Features

Performance Features of 396A-393A Bearing

396A-393A Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,200 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 396A-393A Bearing Engineered for Reliability?

396A-393A Bearing features a tapered roller design, providing excellent load distribution and durability.
The chrome steel construction enhances its resistance to wear and extends service life.
Its standard radial clearance ensures smooth operation in most industrial applications.
The bearing’s effective center location of -0.03″ helps maintain precise alignment.

Built for Durability: 396A-393A Bearing

396A-393A Bearing’s single-row construction simplifies installation while maintaining high performance.
The open seal design allows for easy lubrication, ensuring consistent operation.
With a static radial load capacity of 28,100 lbf, it handles demanding conditions with ease.
The bearing’s ABEC-1 rating guarantees reliable precision for various applications.

Application

Industrial Uses of 396A-393A Bearing
396A-393A Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 396A-393A Bearing Used?
You’ll often find 396A-393A Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a good fit for vehicles following imperial measurement standards.

Built for Heavy-Duty Use: 396A-393A Bearing
396A-393A Bearing excels in industrial fans and pumps, thanks to its ability to manage both radial and thrust loads. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 396A-393A Bearing
In automotive settings, 396A-393A Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems. The steel cage provides stability across different temperature ranges.

Key Fields for 396A-393A Bearing
396A-393A Bearing is ideal for conveyor systems and material handling equipment, where its standard radial clearance ensures smooth operation. The ABEC-1 rating makes it suitable for general industrial use.
