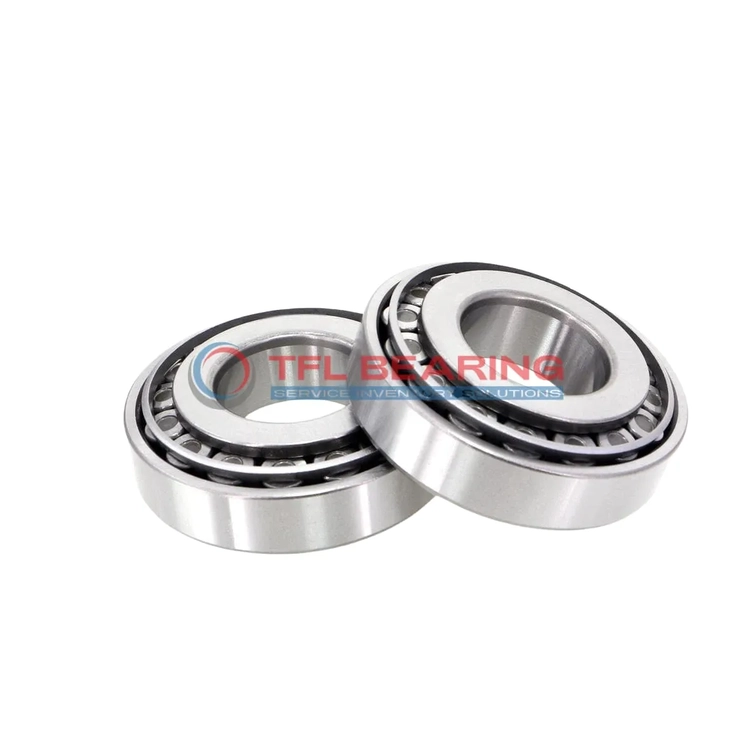

TS (Single Row Tapered Roller Bearings) (Imperial) 567A-563A

TS (Single Row Tapered Roller Bearings) (Imperial) 567A-563A

The 567A-563A is a single-row tapered roller bearing with a 2.8125″ bore and 4.875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 3.8 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets environmental and safety requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 567A-563A
  • Brand TFL
  • Interchangeable Timken
  • Size 2.8125" x 4.875" x 1.4376"
  • Bore Dia 2.8125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.82"
  • Cone Backface Backing Diameter 3.39"
  • Cup Frontface Backing Diameter 4.72"
  • Cup Backface Backing Diameter 4.37"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 567A
  • Cup Part Number 563A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.8 lb

Features

Performance Features of 567A-563A Bearing

567A-563A Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, ensuring smooth operation and reduced wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 567A-563A Bearing Engineered for Reliability?

567A-563A Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction enhances durability, while the open seal type allows for easy lubrication.
Its static radial load capacity of 58,900 lbf ensures long-term reliability.
The standard radial clearance option provides flexibility for different applications.

Designed for Durability: 567A-563A Bearing

567A-563A Bearing’s tapered roller design efficiently manages both radial and thrust loads.
The steel cage and chrome steel rollers work together to minimise friction and wear.
With an ABEC-1 rating, it balances precision and cost-effectiveness.
Its wide temperature range makes it adaptable to various industrial environments.

Steel vs Ceramic Bearings: Strengths of 567A-563A Bearing

567A-563A Bearing uses chrome steel for both rings and rollers, offering excellent strength and durability.
This material choice provides better cost-efficiency compared to ceramic options in many applications.
The bearing’s dynamic thrust rating of 7,130 lbf ensures reliable performance under load.
Its standard radial clearance makes it versatile for different installation requirements.

Application

Industrial Uses of 567A-563A Bearing
567A-563A Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 567A-563A Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For industrial conveyor systems, 567A-563A Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The steel cage adds stability, making it suitable for continuous operation.

What Makes 567A-563A Bearing a Preferred Choice?
567A-563A Bearing is often selected for agricultural machinery due to its ability to withstand heavy radial and thrust loads. The standard radial clearance offers flexibility for different operational needs.

In mining equipment, 567A-563A Bearing’s robust design ensures reliable performance under extreme conditions. The ABEC-1 rating provides a balance of precision and cost-effectiveness for industrial applications.

Built for Heavy-Duty Use: 567A-563A Bearing
567A-563A Bearing excels in forestry machinery, where its tapered rollers manage uneven loads effortlessly. The chrome steel rollers and rings enhance wear resistance.

For railway applications, 567A-563A Bearing’s effective center location improves alignment, reducing wear over time. Its compatibility with Timken models simplifies maintenance and replacements.

Automotive vs Aerospace: Applications of 567A-563A Bearing
In automotive drivetrains, 567A-563A Bearing handles high torque and variable speeds with ease. The inch measurements align well with standard US automotive components.

For aerospace ground support equipment, 567A-563A Bearing’s temperature range ensures performance in varying climates. Its steel cage provides stability without adding excessive weight.
