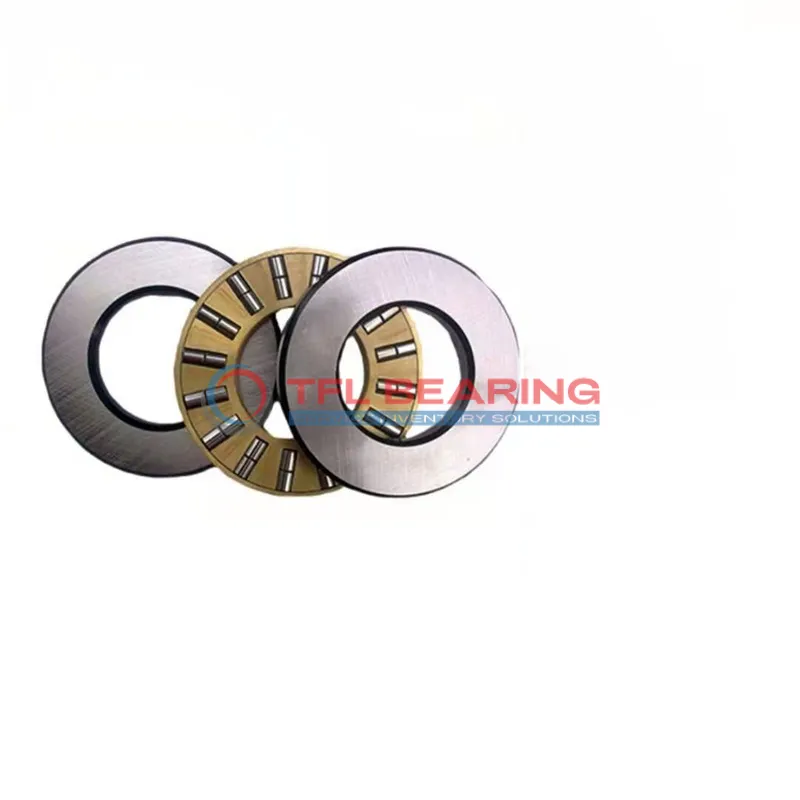

Double Row Cylindrical Roller Thrust Bearings 89432 M

Double Row Cylindrical Roller Thrust Bearings 89432 M

The 89432 M is a double-row cylindrical roller thrust bearing, measuring 160mm in bore diameter and 320mm in outer diameter, with a width of 95mm. Made from chrome steel, it’s built to handle heavy thrust loads up to 321750 lbf.

Its two-row design provides extra stability, while the machined brass cage ensures smooth operation at speeds up to 1000 RPM. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial presses or large gearboxes where high thrust loads are common.

Weighing 42kg, it’s a robust option for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 89432 M
  • Size 160 mm x 320 mm x 95 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.040mm to 0
  • Width 95 mm
  • Height Tolerance -0.40mm to +0.025mm
  • Outside Diameter Shaft Washer 320 mm
  • Bore Diameter Housing Washer 164 mm
  • Height Shaft Washer 31.5 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 5 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 321750 lbf
  • Static Radial Load 1440000 lbf
  • Max Speed 1000 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 42 kg
  • Roller And Cage Thrust Assembly K 89432 M
  • Shaft Washer WS 89432
  • Housing Washer GS 89432
Double Row Cylindrical Roller Thrust Bearings 89432 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 89432 M Bearing

89432 M Bearing is built with double-row cylindrical rollers, offering high thrust load capacity up to 1,440,000 lbf.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The machined brass cage maintains roller alignment, enhancing smooth operation and reducing friction.
With a maximum speed of 1,000 rpm, it balances performance and reliability under heavy loads.

89432 M Bearing operates in temperatures from -30° to 110°C, suitable for various industrial environments.
Its precise tolerances and robust design make it a dependable choice for thrust applications.

Application

Industrial Uses of 89432 M Bearing
The 89432 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its double-row design handles significant thrust loads. Its chrome steel construction ensures durability in demanding industrial environments.

Where Is 89432 M Bearing Used?
In wind turbines, the 89432 M Bearing supports the main shaft, providing stability under high radial and axial loads. The machined brass cage enhances performance by reducing friction and wear.

Built for Heavy-Duty Use: 89432 M Bearing
This bearing excels in steel mills, where its robust design withstands extreme loads and temperatures. The precise tolerances ensure reliable operation in critical applications.

Automotive vs Aerospace: Applications of 89432 M Bearing
In automotive applications, the 89432 M Bearing is found in large trucks and buses, supporting transmissions. For aerospace, it’s used in landing gear systems, where reliability is paramount.

Perfect Fit for Automation: 89432 M Bearing
The 89432 M Bearing is ideal for automated production lines, offering smooth operation in high-speed scenarios. Its metric sizing ensures compatibility with European and Asian machinery standards.
