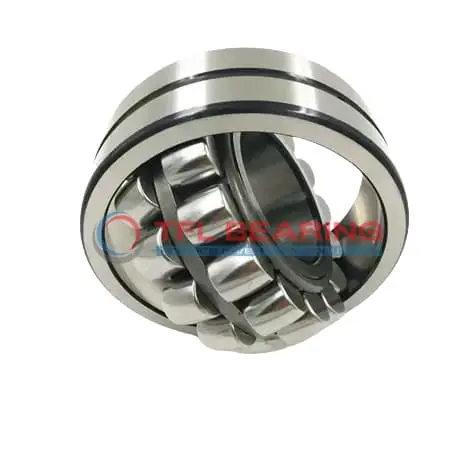

22216 E CJ W33 Double Row Spherical Roller Bearing

22216 E CJ W33 Double Row Spherical Roller Bearing

The 22216 E CJ W33 is a double-row spherical roller bearing with an 80mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 54629 lbf and operates smoothly at speeds up to 6000 RPM.
Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.
This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.
Weighing 2.1kg, it balances strength and practicality. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22216 E CJ W33
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 140 x 33 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 33 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 94.7 mm
  • Shoulder/Recess Dia Of Outer Ring 124 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 54629 lbf
  • Static Radial Load 60698 lbf
  • Max Speed 6000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 2.1 kg
  • Price （US$） 52.02

Features

Performance Features of 22216 E CJ W33 Bearing

22216 E CJ W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 54629 lbf, ensuring reliable performance in demanding conditions.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 6000 rpm, it balances durability and efficiency.

22216 E CJ W33 Bearing operates in temperatures from -30° to 200°C, making it suitable for varied environments.
The lubrication groove and holes ensure smooth operation, even under heavy loads.

Steel cage construction keeps the rollers aligned, minimising wear and extending service life.
Its standard radial clearance (CN) provides consistent performance across applications.

Application

Industrial Uses of 22216 E CJ W33 Bearing
22216 E CJ W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial loads with ease. The spherical roller construction also compensates for minor misalignments, ensuring smooth operation.

Where Is 22216 E CJ W33 Bearing Used?
In automotive applications, 22216 E CJ W33 Bearing supports components like drivetrains and axles, thanks to its robust chrome steel construction. Its high-speed capability makes it suitable for performance vehicles and commercial trucks alike.

Built for Heavy-Duty Use: 22216 E CJ W33 Bearing
For industrial fans and blowers, 22216 E CJ W33 Bearing’s open design allows for efficient lubrication, extending service life in demanding environments. The steel cage adds durability, making it a reliable choice for continuous operation.

Automotive vs Aerospace: Applications of 22216 E CJ W33 Bearing
In aerospace, 22216 E CJ W33 Bearing is used in auxiliary systems where its temperature resistance and load capacity are critical. Meanwhile, in automotive settings, it excels in transmissions and differentials due to its precision engineering.

Essential Roles of 22216 E CJ W33 Bearing
22216 E CJ W33 Bearing plays a key role in conveyor systems, where its ability to handle combined loads ensures reliable performance. The metric sizing and interchangeable design make it a versatile option for global equipment manufacturers.
