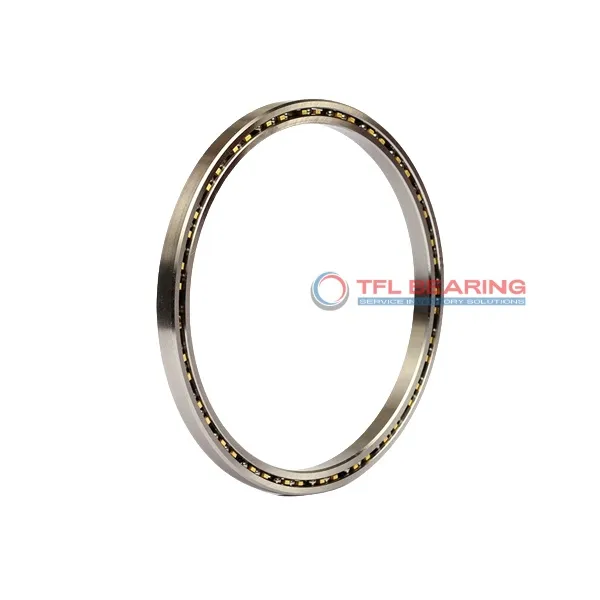

Constant Section (CS) Bearings SD055CP0

Constant Section (CS) Bearings SD055CP0

The SD055CP0 is a slim stainless steel bearing measuring 5.5″ by 6.5″ with a width of just 0.5″. Made from durable stainless steel and brass, it’s designed for radial loads up to 2063 lbf.

Its open design and ABEC-1 tolerance ensure smooth operation, while the thin section makes it ideal for space-constrained applications. The bearing works in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, offering a reliable replacement option. Perfect for use in machinery where a slim profile and radial load capacity are needed.

Weighing 1.06 lbs, it’s lightweight yet sturdy. Compliant with RoHS standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SD055CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5.5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 6.5"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SD 1/2" x 1/2"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.870"
  • Internal Diameter On Outer Ring (Small Side Face) 6.130"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 2063 lbf
  • Static Radial Load 4100 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.06 lbs
  • price（$） 245.37
Constant Section (CS) Bearings SD055CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of SD055CP0 Bearing

SD055CP0 Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion and wear.
Its dynamic radial load capacity of 2063 lbf ensures reliable performance in various radial load applications.

The brass cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a temperature range of -30°C to 110°C, it performs well in diverse environmental conditions.

SD055CP0 Bearing’s thin section design saves space without compromising strength or durability.
Its ABEC-1 tolerance class ensures consistent precision for smooth and efficient performance.

Application

Industrial Uses of SD055CP0 Bearing
SD055CP0 Bearing is commonly used in industrial machinery where space constraints are a concern, thanks to its slim design. The stainless steel construction ensures durability in environments with moderate loads and speeds.

Where Is SD055CP0 Bearing Used?
You’ll find SD055CP0 Bearing in automation systems, particularly in robotic arms and precision equipment. Its brass cage provides smooth operation, making it suitable for repetitive motion tasks.

Built for Heavy-Duty Use: SD055CP0 Bearing
SD055CP0 Bearing handles radial loads efficiently in applications like conveyor systems and packaging machines. The ABEC-1 tolerance ensures reliable performance without unnecessary complexity.

Automotive vs Aerospace: Applications of SD055CP0 Bearing
In automotive settings, SD055CP0 Bearing fits well in steering mechanisms due to its compact size. For aerospace, it’s often used in auxiliary equipment where weight savings are crucial.

Perfect Fit for Automation: SD055CP0 Bearing
SD055CP0 Bearing works seamlessly in 3D printers and CNC machines, where precision and low friction are key. The open design allows for easy lubrication, extending its service life.
