Single Row Deep Groove Ball Bearings 6312-2RS2/C3GWF

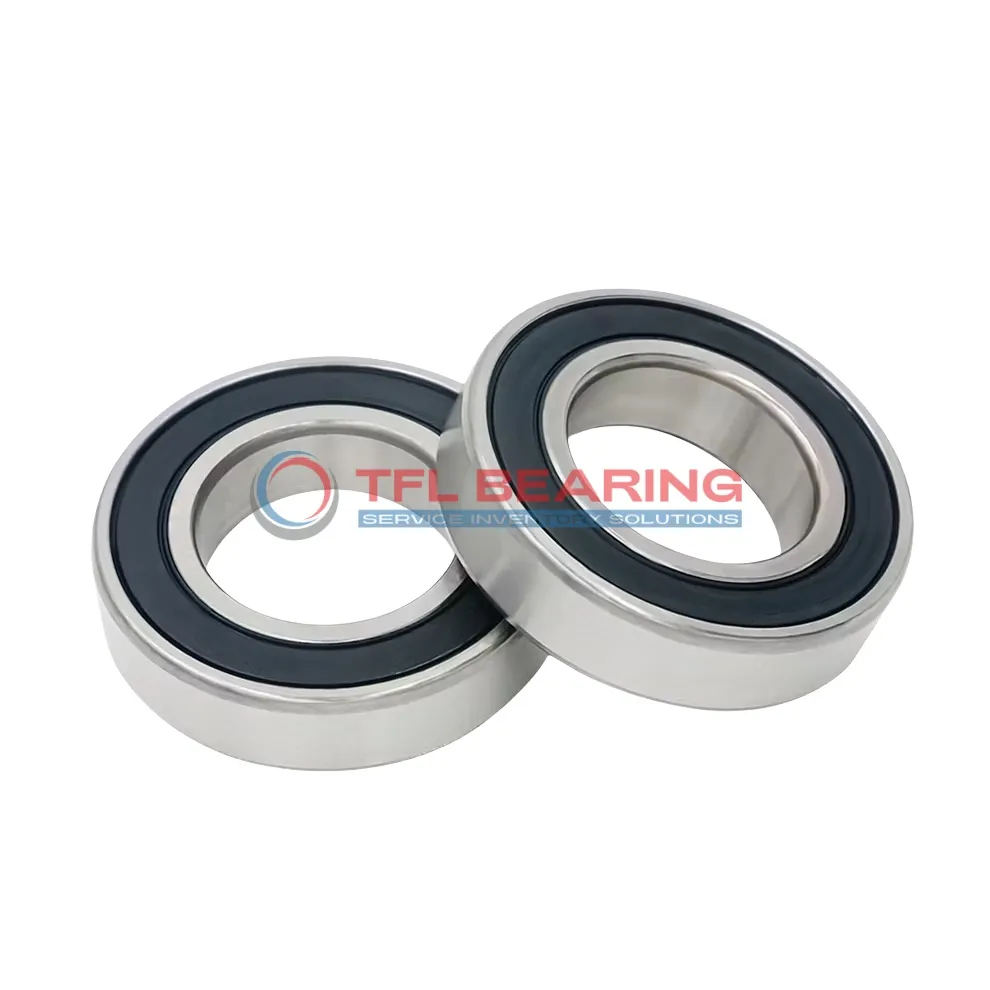

Single Row Deep Groove Ball Bearings 6312-2RS2/C3GWF

The 6312-2RS2/C3GWF is a single-row deep groove ball bearing with a 60mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 18412 lbf and runs smoothly at speeds up to 5300 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the chrome steel cage adds durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for applications like electric motors or pumps where radial loads are common.

Weighing 1699g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6312-2RS2/C3GWF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 18412 lbf
  • Static Radial Load 11735 lbf
  • Max Speed 5300 rpm
  • Weight 1699 g
  • price（$） 34.587
Single Row Deep Groove Ball Bearings 6312-2RS2/C3GWF dimension drawing
Download DWG Download PDF

Features

Performance Features of 6312-2RS2/C3GWF Bearing

6312-2RS2/C3GWF Bearing is designed for radial loads, with a dynamic radial load capacity of 18412 lbf.
Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.
The chrome steel rings and balls provide durability, while the C3 radial clearance allows for thermal expansion.
With a maximum speed of 5,300 rpm, it offers reliable performance in demanding applications.

Application

Industrial Uses of 6312-2RS2/C3GWF Bearing
6312-2RS2/C3GWF Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The C3 radial clearance ensures reliable performance even under varying thermal conditions.

Where Is 6312-2RS2/C3GWF Bearing Used?
You’ll find 6312-2RS2/C3GWF Bearing in automotive applications such as wheel hubs and alternators, thanks to its ability to handle radial loads smoothly. Its chrome steel construction offers durability in high-speed environments.

Built for Heavy-Duty Use: 6312-2RS2/C3GWF Bearing
6312-2RS2/C3GWF Bearing works well in conveyor systems, where its robust design can handle continuous operation. The sealed feature also makes it suitable for dusty or wet conditions.

Automotive vs Industrial: Applications of 6312-2RS2/C3GWF Bearing
In cars, 6312-2RS2/C3GWF Bearing supports components like fans and pulleys, while in factories, it’s often used in gearboxes. Its versatility and metric sizing make it a go-to choice across industries.

Perfect Fit for Automation: 6312-2RS2/C3GWF Bearing
6312-2RS2/C3GWF Bearing is ideal for robotic arms and automated assembly lines, where precision and reliability are key. The sealed design ensures long service life even in demanding setups.
