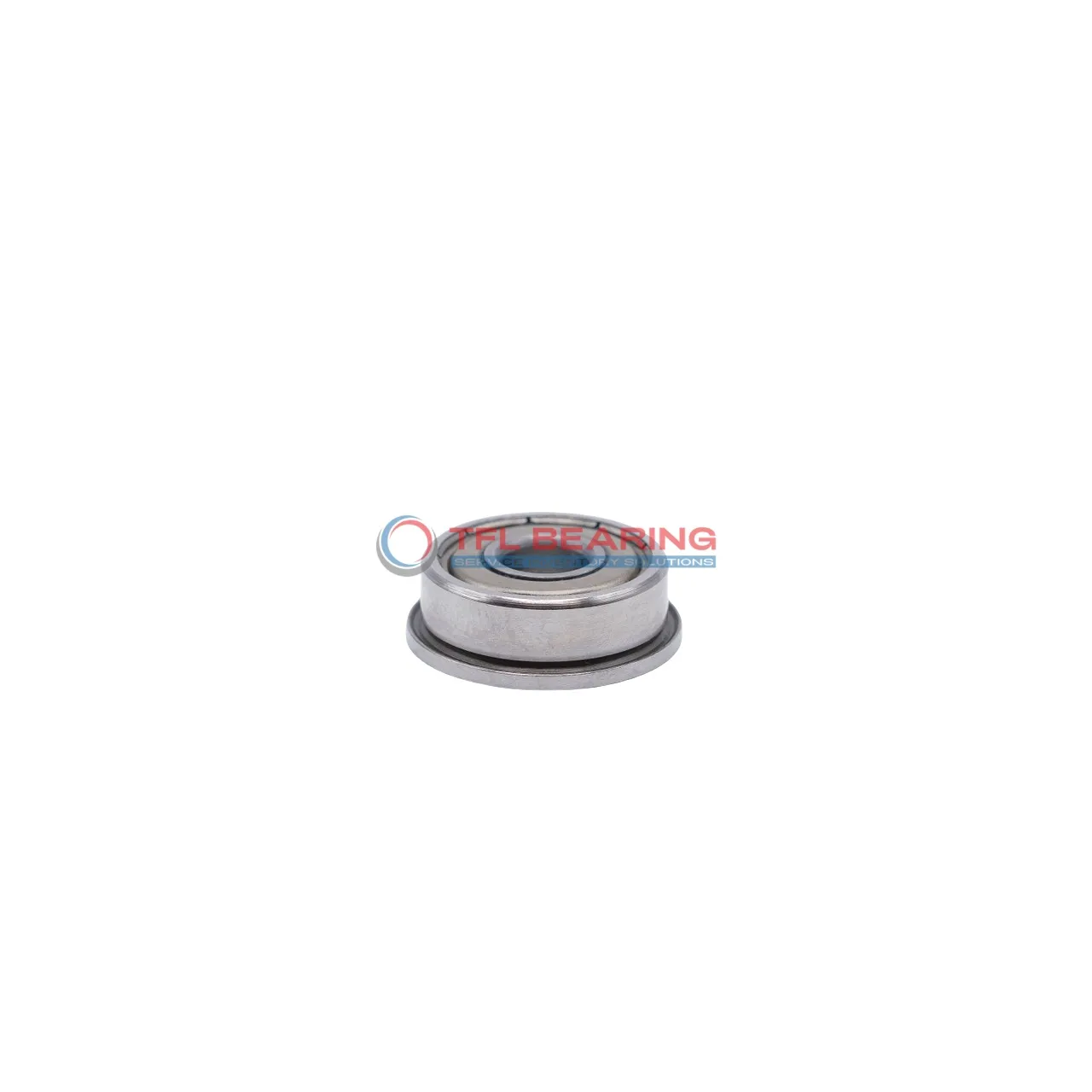

Inch Size Miniature Flanged Ball Bearings FR2zz

Inch Size Miniature Flanged Ball Bearings FR2zz

The FR2zz is a miniature flanged ball bearing with a 0.125″ bore and 0.375″ outer diameter, made from durable chrome steel. It handles radial loads up to 121 lbf and spins smoothly at speeds up to 56,000 RPM.

Its shielded design keeps dirt out while the stainless steel cage ensures long-lasting performance. The flange provides extra stability, making it easier to mount in tight spaces.

This bearing works well in temperatures from -86°F to 230°F and requires lubrication for optimal performance. Ideal for small devices like drones or precision instruments where space is limited.

Weighing just 1.53g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number FR2zz
  • Brand TFL
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Radial Clearance 0.00008" to 0.0005"
  • Ball Qty 7
  • Bore Dia 0.125"
  • Bore Dia Tolerance -0.0003" to 0"
  • Outer Dia 0.375"
  • Outer Dia Tolerance -0.0003" to 0"
  • Width 0.1562"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.44"
  • Flange Thickness 0.030"
  • Ball Dia 0.06252"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 121 lbf
  • Static Radial Load 39 lbf
  • Max Speed 56000 rpm
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.53 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.0935
Inch Size Miniature Flanged Ball Bearings FR2zz dimension drawing
Download DWG Download PDF

Features

Why Choose FR2zz Bearing for Precision Tasks?

FR2zz Bearing features a shielded design with stainless steel shields, protecting against dust and debris.
Its chrome steel construction ensures durability and smooth operation in radial load applications.

With a dynamic radial load capacity of 121 lbf, FR2zz Bearing handles light to moderate loads efficiently.
The ABEC1 tolerance class provides reliable precision for miniature applications.

FR2zz Bearing operates in temperatures from -86 to 230°F, making it versatile for various environments.
Its compact size and flanged design simplify installation in tight spaces.

Application

Where Is FR2zz Bearing Used?
FR2zz Bearing is commonly used in small electric motors and precision instruments due to its compact size and shielded design, which keeps dust out while maintaining smooth rotation. The inch sizing makes it ideal for American-made equipment where metric bearings aren’t suitable.

In automation systems, FR2zz Bearing fits neatly into robotic arms and 3D printers, where its low friction and high-speed capability ensure accurate movements. The stainless steel cage adds durability, even in continuous operation.

For consumer electronics like cooling fans or small appliances, FR2zz Bearing’s lightweight construction and reliable performance make it a go-to choice. Its temperature range also handles everyday use without issues.

The flanged design of FR2zz Bearing helps secure it in place during assembly, reducing misalignment in tight spaces. This feature is particularly handy in DIY tools or hobbyist projects where stability matters.
