Constant Section (CS) Bearings SB100AR0

Constant Section (CS) Bearings SB100AR0

The SB100AR0 is a slim stainless steel bearing with a 10-inch bore and 10.625-inch outer diameter, designed for angular contact loads. Its compact width of 0.3125 inches makes it ideal for space-saving applications.

Made from durable stainless steel, it handles radial loads up to 1461 lbf and static thrust loads up to 3760 lbf. The 30° contact angle ensures smooth performance in angular load scenarios.

Its open design and brass cage allow for easy maintenance and long service life. The bearing operates well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, offering a reliable replacement option. Suitable for precision equipment where slim profiles and angular load handling are needed.

Weighing just 0.71 lbs, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SB100AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 10"
  • Bore Dia Tolerance -0.0014"– 0"
  • Outer Dia 10.625"
  • Outer Dia Tolerance -0.0014"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 10.231"
  • Internal Diameter On Outer Ring (Small Side Face) 10.393"
  • Internal Diameter On Outer Ring (Large Side Face) 10.449"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 1461 lbf
  • Static Radial Load 4890 lbf
  • Static Thrust Load 3760 lbf
  • Static Moment 14120 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 2673 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.71 lbs
  • price（$） 526.57

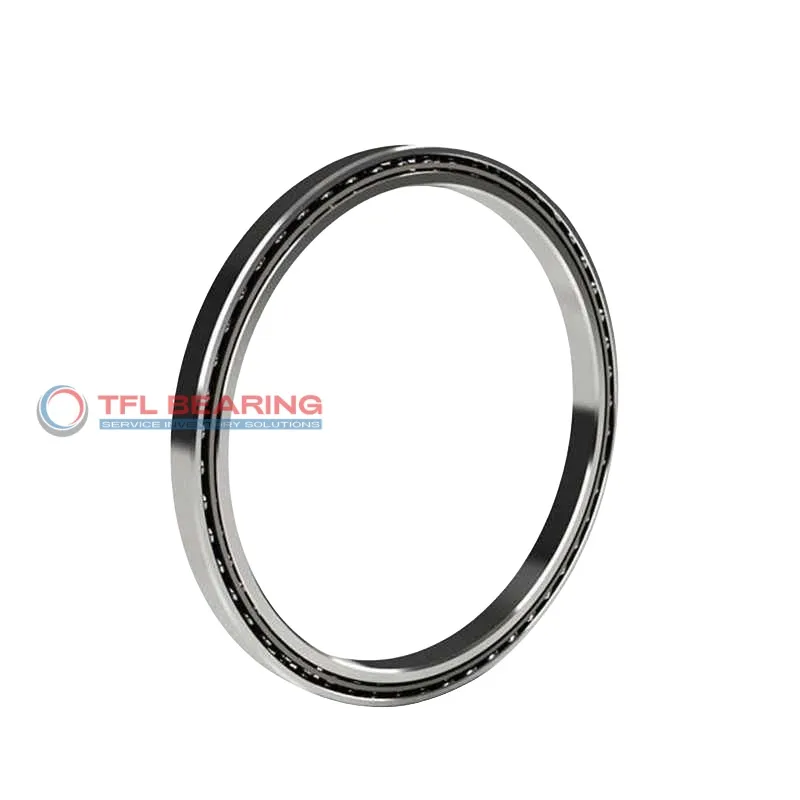

Constant Section (CS) Bearings SB100AR0 dimension drawing
Download DWG Download PDF
