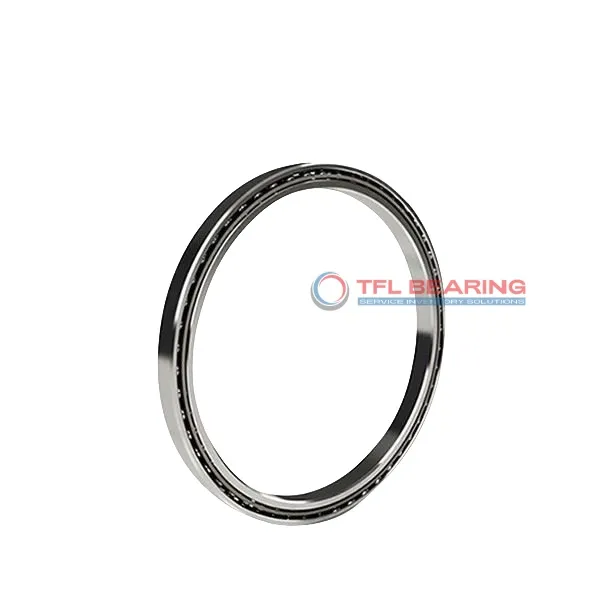

Constant Section (CS) Bearings SA025AR0

Constant Section (CS) Bearings SA025AR0

Why Choose SA025AR0 Bearing for Precision Tasks?

SA025AR0 Bearing features a 30° contact angle, optimised for angular contact applications requiring high precision.
Its stainless steel construction ensures resistance to corrosion, making it suitable for various environments.
The brass cage maintains ball alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 459 lbf, it handles demanding tasks efficiently.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SA025AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 2.5"
  • Bore Dia Tolerance -0.0006"– 0"
  • Outer Dia 3"
  • Outer Dia Tolerance -0.0005"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 2.686"
  • Internal Diameter On Outer Ring (Small Side Face) 2.814"
  • Internal Diameter On Outer Ring (Large Side Face) 2.869"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 459 lbf
  • Static Radial Load 960 lbf
  • Static Thrust Load 1100 lbf
  • Static Moment 2780 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1150 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.12 lbs
  • price（$） 113.64
Constant Section (CS) Bearings SA025AR0 dimension drawing
Download DWG Download PDF

Features

Industrial Uses of SA025AR0 Bearing
SA025AR0 Bearing is commonly used in robotics and automation systems, where its slim design saves space without compromising performance. The stainless steel construction ensures durability in demanding industrial environments.

What Makes SA025AR0 Bearing a Preferred Choice?
In medical imaging devices, SA025AR0 Bearing provides smooth and precise movement, essential for accurate diagnostics. Its brass cage reduces friction, enhancing the lifespan of sensitive equipment.

Built for Heavy-Duty Use: SA025AR0 Bearing
For aerospace applications, SA025AR0 Bearing handles angular contact loads efficiently, making it suitable for control systems. The ABEC-1 tolerance ensures reliable performance under varying conditions.

Automotive vs Aerospace: Applications of SA025AR0 Bearing
In automotive steering mechanisms, SA025AR0 Bearing offers reliable angular load support. Meanwhile, in aerospace, its lightweight design and precision make it ideal for flight control systems.

Perfect Fit for Automation: SA025AR0 Bearing
SA025AR0 Bearing is often found in 3D printers, where its thin section design allows for compact assembly. The stainless steel material resists wear, ensuring long-term reliability in high-use scenarios.

Application

Industrial Uses of SA025AR0 Bearing
SA025AR0 Bearing is commonly used in robotics and automation systems, where its slim design saves space without compromising performance. The stainless steel construction ensures durability in demanding industrial environments.

What Makes SA025AR0 Bearing a Preferred Choice?
In medical imaging devices, SA025AR0 Bearing provides smooth and precise movement, essential for accurate diagnostics. Its brass cage reduces friction, enhancing the lifespan of sensitive equipment.

Built for Heavy-Duty Use: SA025AR0 Bearing
For aerospace applications, SA025AR0 Bearing handles angular contact loads efficiently, making it suitable for control systems. The ABEC-1 tolerance ensures reliable performance under varying conditions.

Automotive vs Aerospace: Applications of SA025AR0 Bearing
In automotive steering mechanisms, SA025AR0 Bearing offers reliable angular load support. Meanwhile, in aerospace, its lightweight design and precision make it ideal for flight control systems.

Perfect Fit for Automation: SA025AR0 Bearing
SA025AR0 Bearing is often found in 3D printers, where its thin section design allows for compact assembly. The stainless steel material resists wear, ensuring long-term reliability in high-use scenarios.
