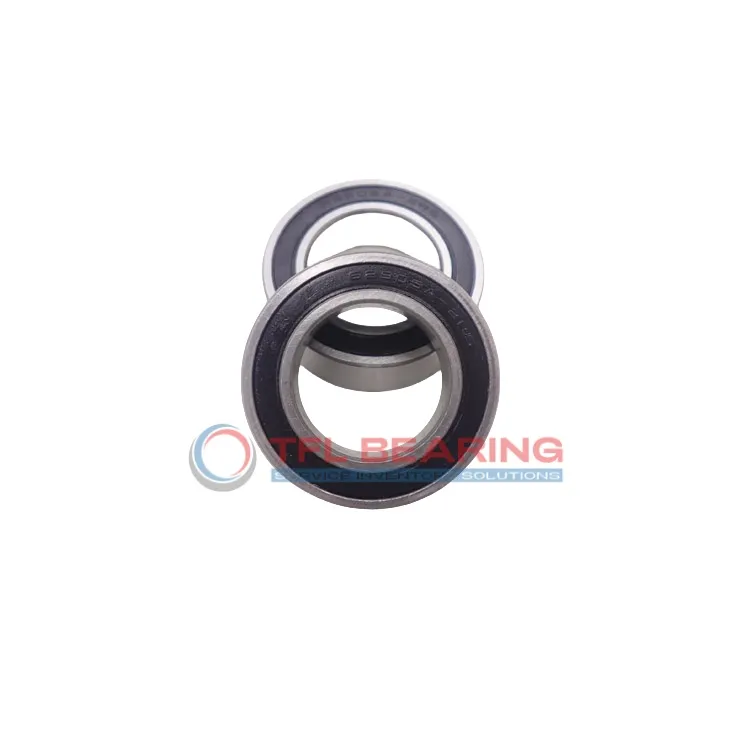

Stainless Steel Deep Groove Ball Bearings W 6004-2RS1

Stainless Steel Deep Groove Ball Bearings W 6004-2RS1

The W 6004-2RS1 is a stainless steel deep groove ball bearing with a 20mm bore and 42mm outer diameter, designed for radial loads. It handles dynamic loads up to 1812 lbf and spins smoothly at speeds up to 11000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance and durable. The all-stainless construction resists corrosion, ideal for humid or wet environments.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Perfect for small motors, pumps, or food processing equipment where hygiene matters.

Weighing just 0.064kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6004-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 1124 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.064 kg
  • Price（$） 12.41
Stainless Steel Deep Groove Ball Bearings W 6004-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6004-2RS1 Bearing for Precision Tasks?

W 6004-2RS1 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its stainless steel construction ensures corrosion resistance, making it suitable for various environments.
The bearing supports dynamic radial loads up to 1812 lbf, providing reliable operation in precision applications.
With a maximum speed of 11,000 rpm, it balances durability and efficiency for demanding tasks.

Application

Industrial Uses of W 6004-2RS1 Bearing
W 6004-2RS1 Bearing is commonly used in food processing equipment, where its stainless steel construction resists corrosion from frequent washdowns. The sealed design keeps contaminants out, ensuring long-lasting performance in demanding environments.

What Makes W 6004-2RS1 Bearing a Preferred Choice?
In automotive applications like electric window mechanisms, W 6004-2RS1 Bearing offers smooth rotation and reliable sealing against dust. Its compact size fits neatly into tight spaces without compromising load capacity.

Perfect Fit for Automation: W 6004-2RS1 Bearing
W 6004-2RS1 Bearing works well in robotic arms, providing precise movement with minimal maintenance. The grease lubrication ensures quiet operation, ideal for sensitive automated systems.

Medical vs Industrial: Where W 6004-2RS1 Bearing Excels
While W 6004-2RS1 Bearing handles industrial pumps effectively, it’s also suitable for medical devices like dental drills due to its hygienic stainless steel build. The temperature range accommodates sterilisation processes.

Light-Duty vs Heavy-Duty: Best Uses for W 6004-2RS1 Bearing
W 6004-2RS1 Bearing performs equally well in small appliances like blenders and larger equipment like conveyor rollers. Its balanced design adapts to varying load requirements with consistent reliability.
