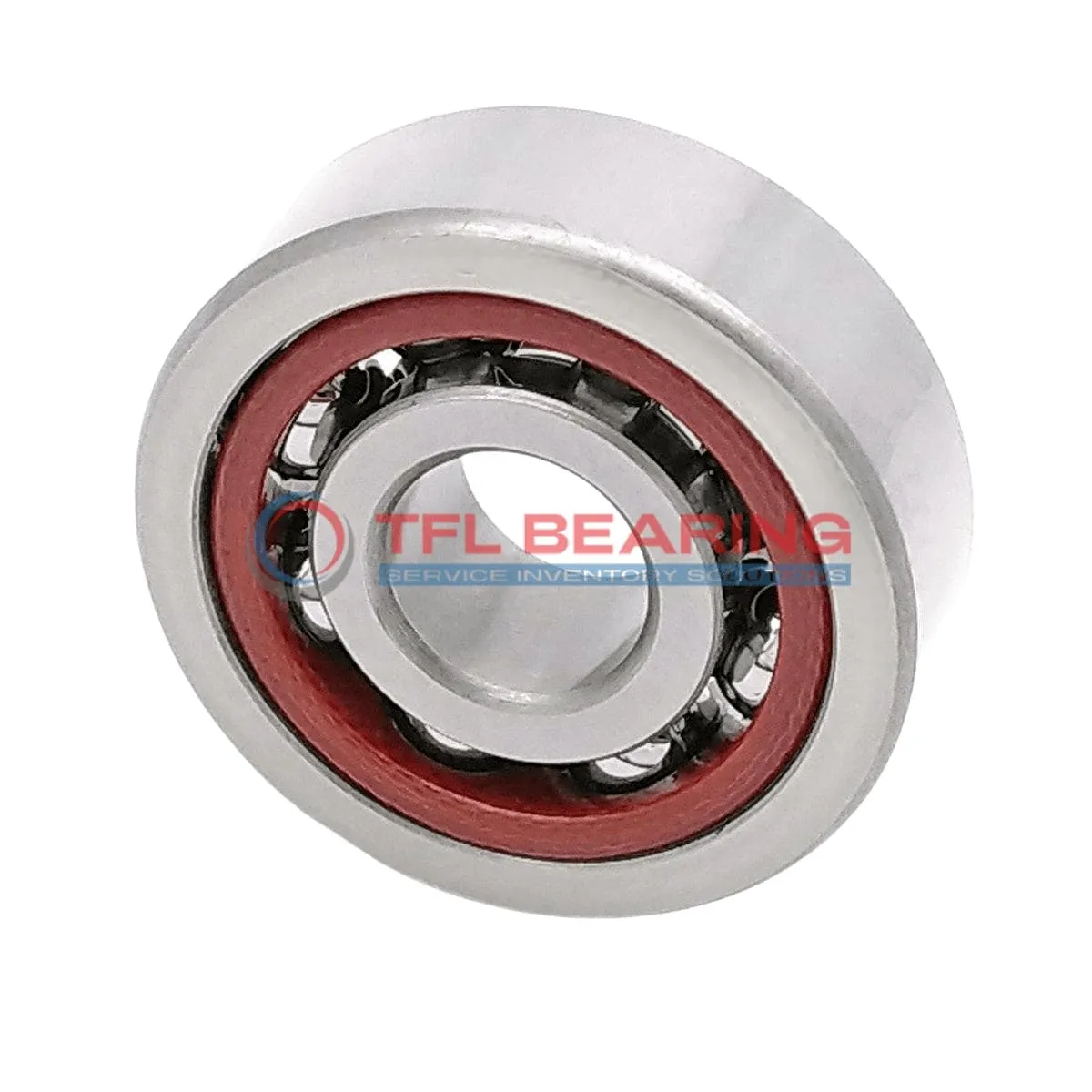

Super Precision Angular Contact Ball Bearings 7030 ACD/P4ATBTB

Super Precision Angular Contact Ball Bearings 7030 ACD/P4ATBTB

The 7030 ACD/P4ATBTB is a super precision angular contact ball bearing with a 150mm bore and 225mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 78975 lbf and spins smoothly at speeds up to 11000 RPM.

Its 25° contact angle and matched set of three bearings (arranged > TBT) provide excellent stability under angular loads. The phenolic cage ensures quiet operation and long service life.

Designed for light preload (Class B), this bearing suits high-precision applications like machine tool spindles or high-speed robotics. It operates reliably in temperatures from -30°C to 110°C.

Weighing 12.5kg, this P4A-tolerance bearing is interchangeable with SKF models, making it a practical choice for precision engineering needs. The open design allows for easy lubrication when required.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7030 ACD/P4ATBTB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 105 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 23.812 mm
  • Ball Qty 22
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 3 bearings <>> TBT
  • Number Of Bearings In Matched Set 3
  • Universal Matching Bearing No
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 78975 lbf
  • Static Radial Load 121500 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 11000 rpm
  • Weight 12.5 kg
Super Precision Angular Contact Ball Bearings 7030 ACD/P4ATBTB dimension drawing
Download DWG Download PDF

Features

Why Choose 7030 ACD/P4ATBTB Bearing for Precision Tasks?

7030 ACD/P4ATBTB Bearing features a 25° contact angle, optimised for high-precision angular contact applications.
Its chrome steel construction ensures durability and consistent performance under dynamic radial loads up to 78,975 lbf.

The matched arrangement of three bearings provides enhanced stability and load distribution.
With a maximum speed of 11,000 rpm, it delivers smooth operation in demanding conditions.

Phenolic cage material reduces friction and wear, contributing to longer service life.
Its P4A tolerance class guarantees exceptional precision for critical applications.

The open design allows for easy lubrication, maintaining optimal performance.
Operating temperatures range from -30°C to 110°C, ensuring reliability in various environments.

Application

Industrial Uses of 7030 ACD/P4ATBTB Bearing
7030 ACD/P4ATBTB Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched set of three bearings provides stability in heavy cutting operations.

In aerospace applications, 7030 ACD/P4ATBTB Bearing handles radial and axial loads in jet engine components. Its phenolic cage offers lightweight durability, crucial for high-speed performance.

For automation systems, 7030 ACD/P4ATBTB Bearing supports robotic arms with smooth, precise movement. The P4A tolerance class ensures consistent operation in repetitive tasks.

Medical imaging devices benefit from 7030 ACD/P4ATBTB Bearing’s low vibration and high rigidity. The chrome steel construction maintains precision even under continuous use.
