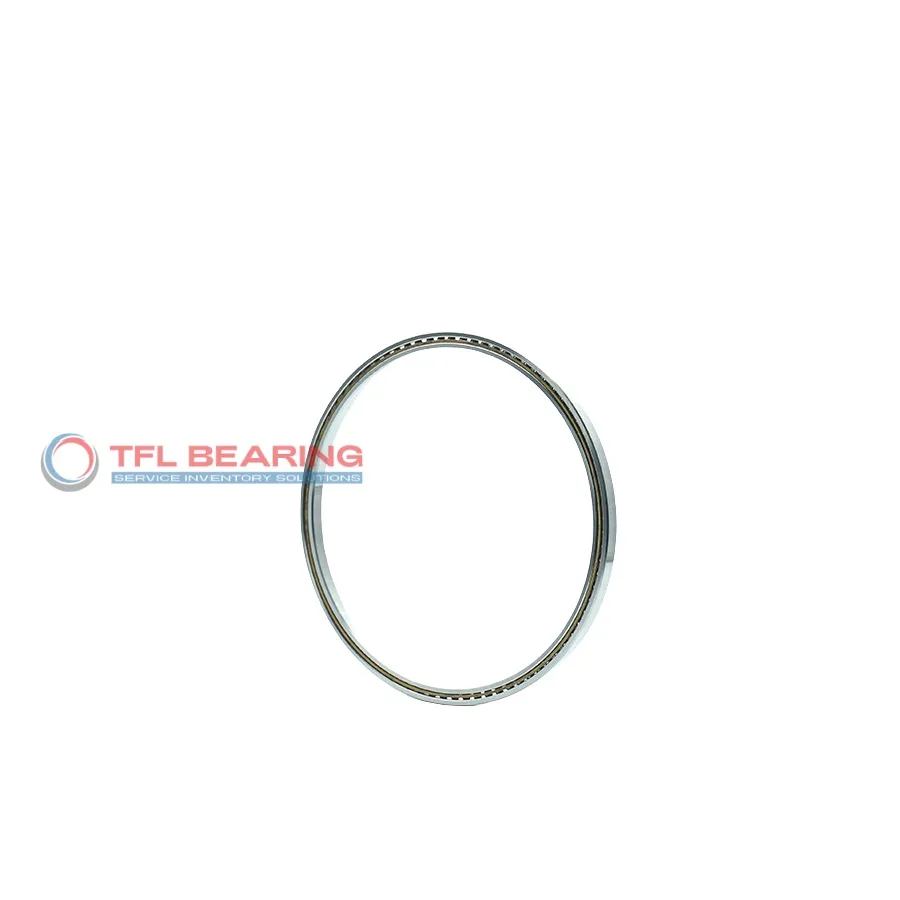

Constant Section (CS) Bearings NG100AR0

Constant Section (CS) Bearings NG100AR0

The NG100AR0 is a constant section bearing measuring 10″×12″×1″, designed for angular contact loads. Made from durable chrome steel with a brass cage, it handles radial loads up to 9561 lbf and static thrust loads up to 23060 lbf.

Its open design and Endura-kote plating ensure smooth operation in temperatures from -30°C to 110°C. The 30° contact angle provides stable performance under moment loads up to 60190 lbf.

This bearing is interchangeable with KAYDON models, making it a versatile choice for replacements. Ideal for applications requiring thin-section bearings, such as robotics or precision machinery.

Weighing 8.0 lbs, it’s robust yet compact. Compliant with RoHS standards and comes pre-lubricated for easy installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NG100AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 10"
  • Bore Dia Tolerance -0.0014"– 0"
  • Outer Dia 12"
  • Outer Dia Tolerance -0.0014"– 0"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 10.742"
  • Internal Diameter On Outer Ring (Small Side Face) 11.258"
  • Internal Diameter On Outer Ring (Large Side Face) 11.483"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 9561 lbf
  • Static Radial Load 20850 lbf
  • Static Thrust Load 23060 lbf
  • Static Moment 60190 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 13942 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 8.0 lbs
  • price（$） 360.01

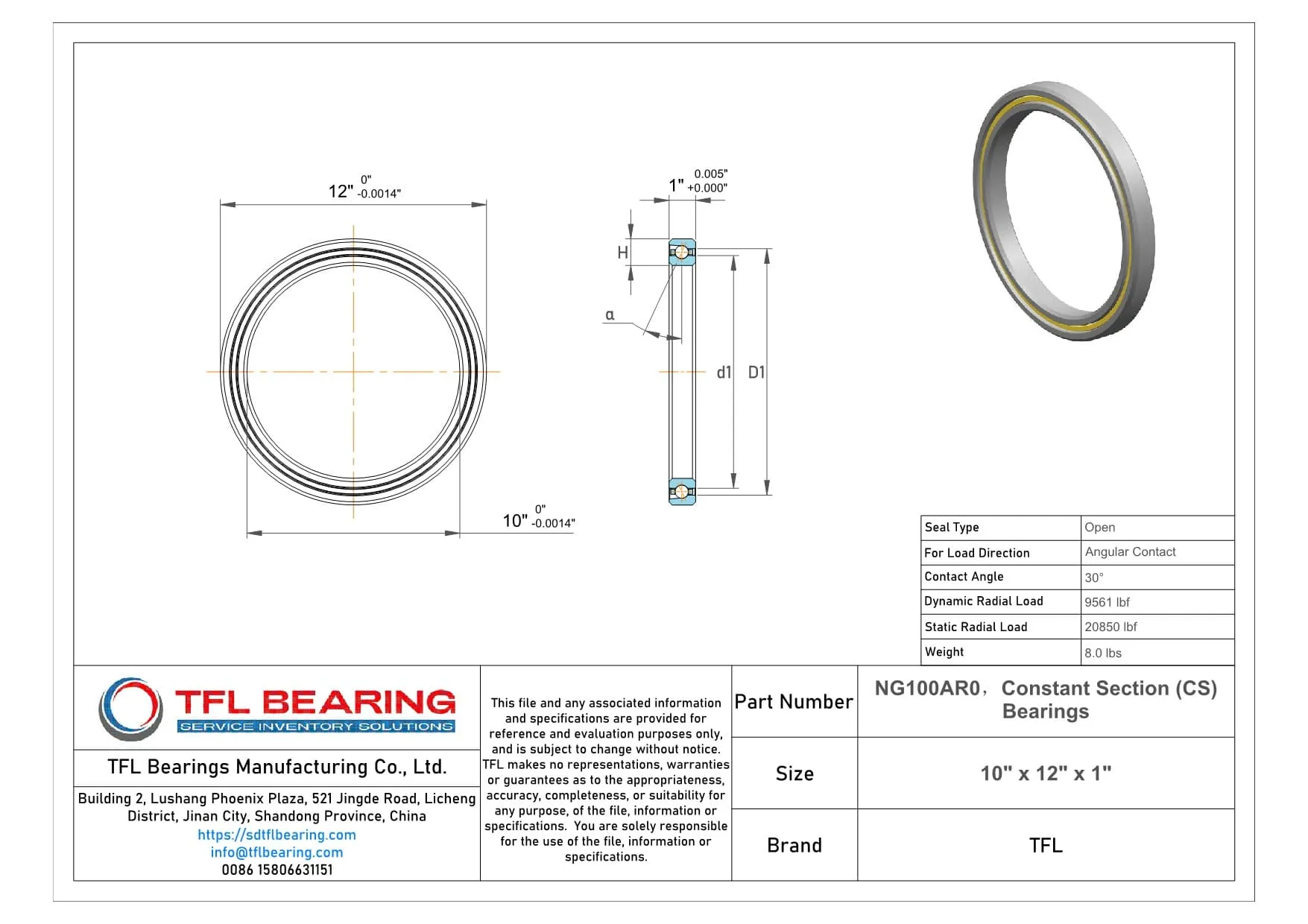

Constant Section (CS) Bearings NG100AR0 dimension drawing
Download DWG Download PDF

Features

Performance Features of NG100AR0 Bearing

NG100AR0 Bearing is built with chrome steel rings and balls, offering strong resistance to angular contact loads.
Its dynamic radial load capacity reaches 9561 lbf, making it suitable for demanding applications.
The brass cage ensures smooth operation by keeping the balls properly aligned.
With a temperature range of -30°C to 110°C, it performs reliably in various conditions.

How Is NG100AR0 Bearing Engineered for Reliability?

NG100AR0 Bearing features a 30° contact angle, optimising load distribution and reducing wear.
The chromium plating enhances durability and provides corrosion resistance.
Its ABEC-1 tolerance class ensures consistent performance in precision applications.
The open design allows for easy lubrication, extending the bearing’s service life.

Built for Durability: NG100AR0 Bearing

NG100AR0 Bearing’s chrome steel construction withstands static thrust loads up to 23060 lbf.
The thin section design saves space without compromising strength or performance.
Its brass cage minimises friction, contributing to smoother operation.
With a weight of 8.0 lbs, it balances robustness and practicality for various installations.

Application

Key Fields for NG100AR0 Bearing
NG100AR0 Bearing is commonly used in industrial automation, especially in robotic arms and precision machinery where its thin section design saves space without sacrificing performance. The angular contact design handles both radial and axial loads efficiently.

In aerospace applications, NG100AR0 Bearing’s chromium plating and brass cage provide durability in control systems and actuators. Its ABEC-1 tolerance ensures reliable operation even under varying temperatures.

For medical imaging devices, NG100AR0 Bearing offers smooth rotation due to its balanced load distribution. The open seal design allows for easy lubrication, extending service life in high-use environments.

Automotive steering systems benefit from NG100AR0 Bearing’s ability to handle moment loads. The inch sizing makes it compatible with many North American vehicle components.
