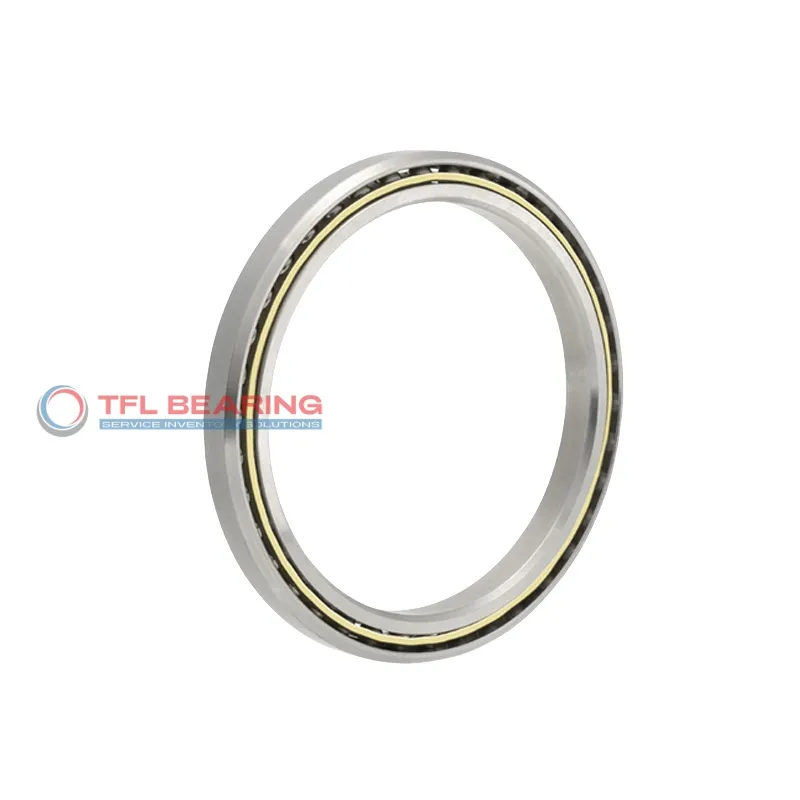

Constant Section (CS) Bearings S16003CS0

Constant Section (CS) Bearings S16003CS0

The S16003CS0 is a slim, single-row ball bearing with a 160mm bore and 166mm outer diameter, crafted entirely from stainless steel for durability. Its ultra-thin 2.5mm width makes it perfect for space-constrained applications.

This bearing handles radial loads up to 257 lbf and operates smoothly in temperatures from -30°C to 110°C. The open design allows for easy lubrication, ensuring long-lasting performance with minimal maintenance.

With ABEC-1 tolerance and minimal radial clearance, it offers reliable precision for light to moderate loads. Ideal for use in precision instruments or small machinery where a compact design is essential.

Weighing just 24g, it’s lightweight yet sturdy, and fully compliant with RoHS standards. Interchangeable with KAYDON bearings, it’s a practical choice for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S16003CS0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.013mm to 0
  • Outer Dia 166 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 2.5 mm
  • Width Tolerance +.000 –.127mm
  • Thin Section Bearings Type UltraSlim Bearings
  • Series 2.5 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 162.2 mm
  • Internal Diameter On Outer Ring (Small Side Face) 163.8 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 257 lbf
  • Static Radial Load 425 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 24.0 g
  • price（$） 486.63
Constant Section (CS) Bearings S16003CS0 dimension drawing
Download DWG Download PDF

Features

Performance Features of S16003CS0 Bearing

S16003CS0 Bearing is crafted with stainless steel rings and balls, offering reliable performance in radial load applications.
Its ultra-slim design at just 2.5 mm wide makes it ideal for space-constrained installations.
The ABEC-1 tolerance ensures consistent precision, while the dynamic radial load capacity of 257 lbf provides dependable operation.
With a temperature range of -30°C to 110°C, it performs well in various environments.

Application

Key Fields for S16003CS0 Bearing
S16003CS0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its slim profile and radial load capacity are beneficial. The stainless steel construction ensures durability in demanding environments.

In medical imaging devices, S16003CS0 Bearing provides smooth rotation and reliability, essential for accurate diagnostics. Its lightweight design also helps reduce overall equipment weight.

For consumer electronics like printers and scanners, S16003CS0 Bearing offers quiet operation and long service life. The open seal design allows for easy maintenance, making it a practical choice for home and office use.

In aerospace applications, S16003CS0 Bearing’s precision and thin section design make it ideal for compact mechanisms. The ABEC-1 tolerance ensures consistent performance under varying conditions.
