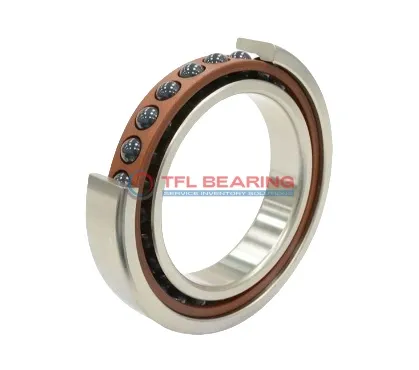

The 71914 FE/HCP4ALQBCA is a super precision angular contact ball bearing with a 70mm bore and 100mm outer diameter, crafted from chrome steel for durability. It handles radial loads up to 12870 lbf and spins smoothly at speeds up to 28000 RPM.
Its 18° contact angle and ceramic balls reduce friction, while the phenolic cage ensures quiet operation. The set includes four matched bearings for balanced performance.
Ideal for high-speed applications like machine tool spindles or precision equipment. It operates in temperatures from -30°C to 110°C and comes pre-lubricated for easy use.
Weighing 1.09kg, it’s a robust choice for demanding environments. Compliant with P4A tolerance standards for exceptional accuracy.
The 71914 FE/HCP4ALQBCA offers extra light preload (Class A) for minimal resistance, making it suitable for sensitive machinery. Its open design allows for straightforward maintenance and inspection.
With 22 ceramic balls and a phenolic cage, it delivers smooth, low-noise performance even at high speeds. The matched set ensures consistent alignment in multi-bearing setups.
Perfect for applications requiring precision, such as aerospace components or medical devices. Its compact size (70mm×100mm×64mm) fits neatly into tight spaces.
Interchangeable with SKF bearings, it’s a versatile option for replacements or upgrades. The bearing’s high tolerance class (P4A) guarantees reliable performance.
This angular contact bearing combines chrome steel rings with ceramic balls for reduced wear and extended lifespan. Its 64mm width provides stability under heavy loads.
The lubricated design ensures smooth operation from the start, while the open seal type simplifies re-greasing. The matched arrangement (QBC) optimises load distribution.
Suited for high-precision tasks like robotics or optical instruments, where accuracy is crucial. It handles both dynamic and static radial loads with ease.
Weighing 1.09kg, it’s lightweight yet sturdy. The bearing’s temperature range (-30°C to 110°C) makes it adaptable to various environments.
The 71914 FE/HCP4ALQBCA’s 9.525mm ceramic balls enhance speed and reduce heat buildup. Its phenolic cage minimises vibration for quieter performance.
With a bore tolerance of -0.004mm to 0, it ensures a precise fit. The extra light preload (Class A) reduces friction without compromising stability.
Ideal for high-speed spindles or precision gearboxes, where smooth rotation is essential. The set of four bearings offers balanced support for axial and radial loads.
Interchangeable with SKF models, it’s a practical choice for maintenance or upgrades. The P4A tolerance class ensures top-tier accuracy for critical applications.
