Snap Ring Groove Ball Bearings 6307NR/C3 JEM

Snap Ring Groove Ball Bearings 6307NR/C3 JEM

The 6307NR/C3 JEM is a snap ring groove ball bearing with a 35mm bore and 80mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 7509 lbf and operates smoothly at speeds up to 8500 RPM.

Its single-row design and open seal make it easy to maintain, while the snap ring ensures secure fitting in housings. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads and secure mounting are key.

With a compact width of 21mm and a snap ring diameter of 86.6mm, it balances space efficiency and stability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6307NR/C3 JEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012 mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013 mm to 0
  • Width 21 mm
  • Width Tolerance -0.12 mm to 0
  • Outside Diameter Of Snap Ring 86.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7509 lbf
  • Static Radial Load 4339 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 8500 rpm
  • Price（$） 12.1

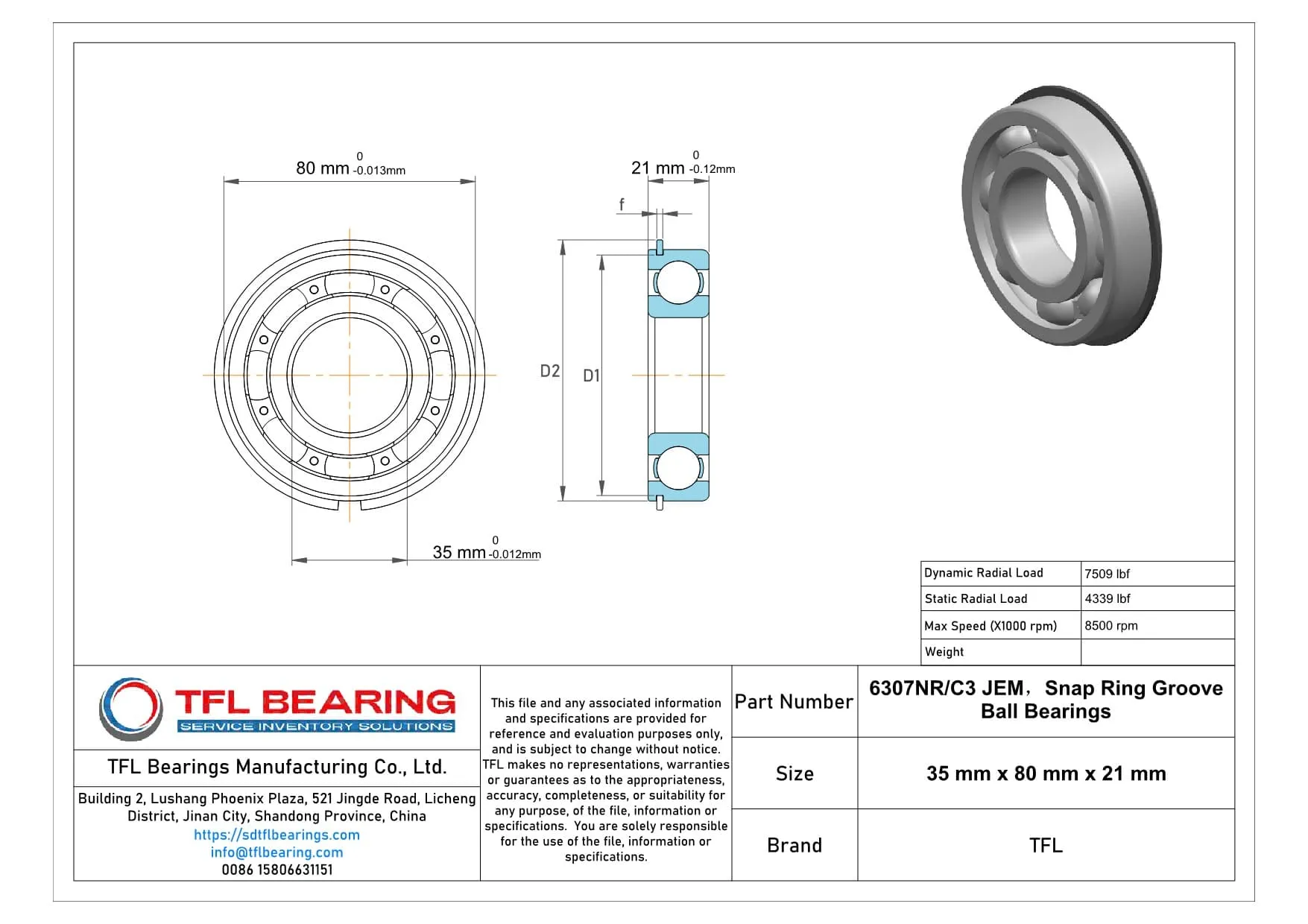

Snap Ring Groove Ball Bearings 6307NR/C3 JEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6307NR/C3 JEM Bearing

6307NR/C3 JEM Bearing features a snap ring groove on the outer ring, ensuring secure mounting in housings.
Its chrome steel construction provides durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 7509 lbf, it handles demanding conditions effectively.
The C3 radial clearance allows for thermal expansion, making it suitable for varied operating temperatures.

Designed for high-speed applications, 6307NR/C3 JEM Bearing supports speeds up to 8,500 rpm.
Its open design simplifies lubrication, ensuring smooth operation over extended periods.

The bearing operates reliably in temperatures ranging from -30°C to 120°C.
Its precision engineering ensures consistent performance in industrial and mechanical applications.

Application

Industrial Uses of 6307NR/C3 JEM Bearing
The 6307NR/C3 JEM Bearing is commonly used in industrial machinery like pumps and gearboxes, where its snap ring groove ensures secure outer ring positioning. Its open design allows for easy lubrication, making it suitable for high-speed applications.

In automotive systems, 6307NR/C3 JEM Bearing fits well in wheel hubs and transmissions, thanks to its radial load capacity and C3 clearance for thermal expansion. The chrome steel construction provides durability in demanding conditions.

For automation equipment, 6307NR/C3 JEM Bearing offers reliable performance in robotic arms and conveyor systems. The snap ring feature simplifies installation, reducing downtime during maintenance.

Where Is 6307NR/C3 JEM Bearing Used?
You’ll often find 6307NR/C3 JEM Bearing in electric motors, where its radial load handling and high-speed capability are key. The C3 clearance helps manage heat buildup during prolonged operation.

It’s also a solid choice for agricultural machinery, like harvesters, where dust and vibration resistance matter. The snap ring design keeps the bearing securely in place even under heavy loads.

Built for Heavy-Duty Use: 6307NR/C3 JEM Bearing
The 6307NR/C3 JEM Bearing handles tough conditions in construction equipment, such as excavators, with its robust chrome steel build. Its open structure allows for easy inspection and relubrication.

In food processing machinery, this bearing’s material and design meet hygiene standards while enduring constant washdowns. The snap ring groove ensures stability even in high-moisture environments.

Automotive vs Industrial: Applications of 6307NR/C3 JEM Bearing
In cars, 6307NR/C3 JEM Bearing works well in alternators and fans, balancing speed and load requirements. Its metric sizing makes it versatile for global vehicle designs.

For factory equipment, this bearing shines in compressors and fans, where its C3 clearance accommodates thermal shifts. The snap ring feature adds reliability in vibration-heavy setups.
