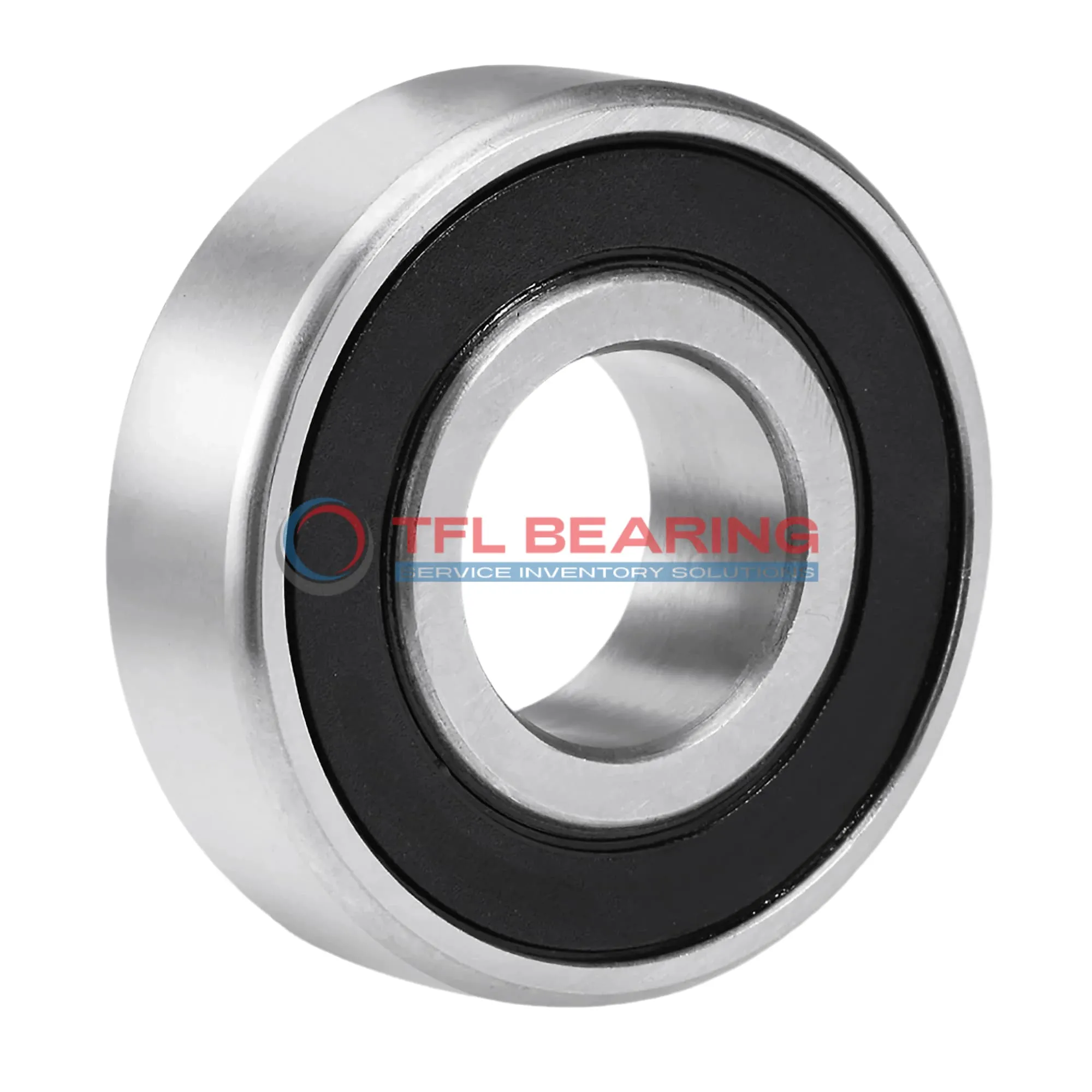

Single Row Deep Groove Ball Bearings 6315-2RS1/C3W64F

Single Row Deep Groove Ball Bearings 6315-2RS1/C3W64F

The 6315-2RS1/C3W64F is a single-row deep groove ball bearing with a 75mm bore and 160mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 25403 lbf and operates smoothly at speeds up to 4300 RPM.

Its sealed design keeps lubrication in and contaminants out, while the solid oil lubrication ensures long-lasting performance. The bearing works reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 3030g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6315-2RS1/C3W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 37 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 25403 lbf
  • Static Radial Load 17355 lbf
  • Max Speed 4300 rpm
  • Weight 3030 g

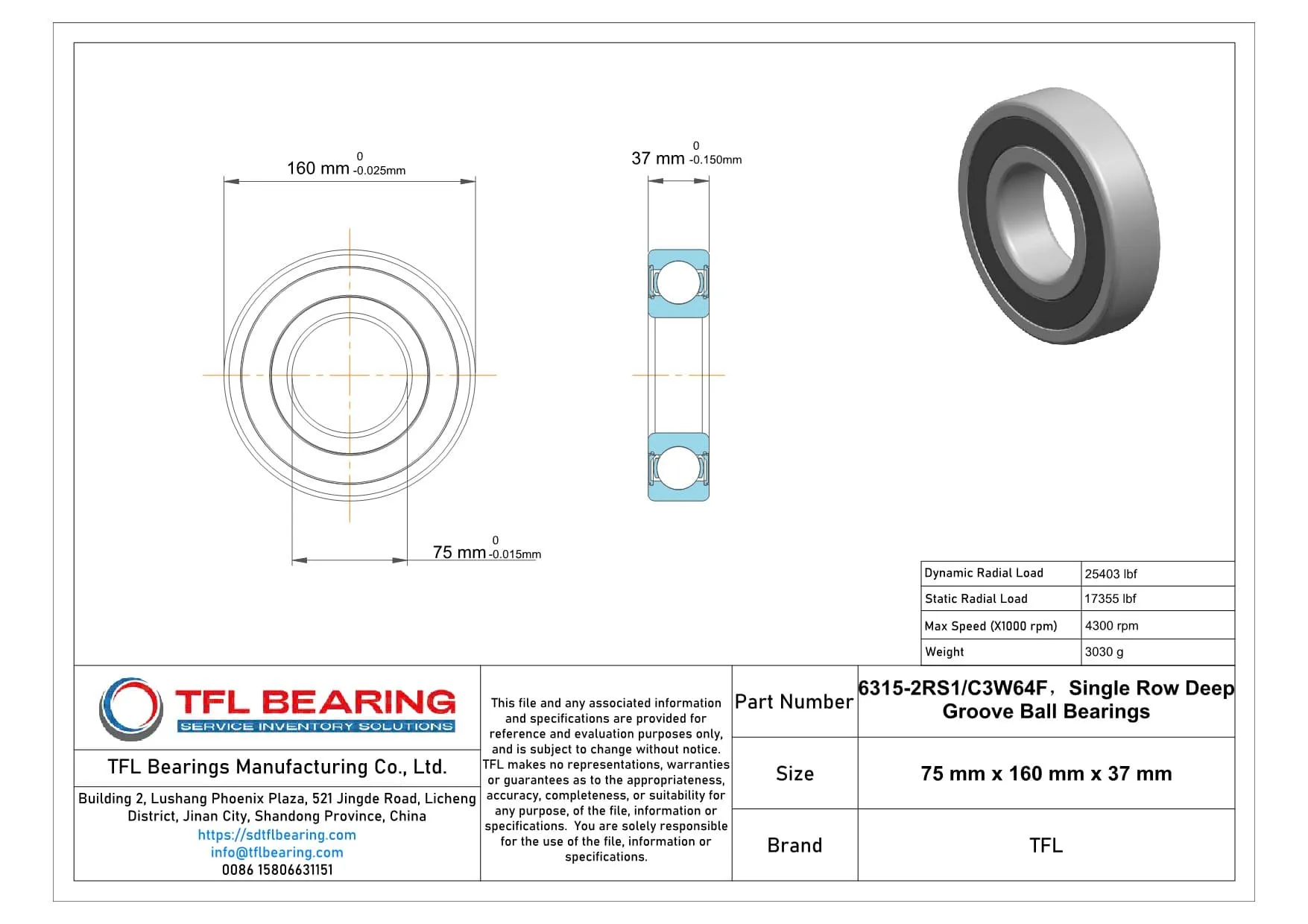

Single Row Deep Groove Ball Bearings 6315-2RS1/C3W64F dimension drawing
Download DWG Download PDF

Features

How Does 6315-2RS1/C3W64F Bearing Reduce Friction?

6315-2RS1/C3W64F Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
The chrome steel construction enhances durability, making it suitable for radial loads up to 25403 lbf.
Its C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
With a maximum speed of 4,300 rpm, it balances efficiency and reliability in demanding applications.

Application

Industrial Uses of 6315-2RS1/C3W64F Bearing
This bearing is commonly used in heavy machinery like pumps and compressors, where its sealed design keeps contaminants out. The solid oil lubrication ensures long service life even in demanding conditions.

In automotive applications, 6315-2RS1/C3W64F Bearing handles radial loads in components like wheel hubs and transmissions. Its C3 clearance allows for thermal expansion, making it suitable for varying temperatures.

For automation systems, this bearing supports smooth rotation in robotic arms and conveyor belts. The chrome steel construction provides reliable performance under continuous operation.

In household appliances, 6315-2RS1/C3W64F Bearing is found in washing machines and fans. Its sealed design reduces maintenance needs, making it ideal for everyday use.
