Constant Section (CS) Bearings S09003XS0

Constant Section (CS) Bearings S09003XS0

The S09003XS0 is an ultra-slim bearing with a 90mm bore and 96mm outer diameter, crafted entirely from stainless steel for durability. Its slim 2.5mm width makes it perfect for space-constrained applications while still handling radial loads up to 246 lbf.

With a four-point contact design, it offers smooth rotation and can manage light thrust loads up to 180 lbf. The open seal allows for easy lubrication, ensuring long service life even in temperatures from -30°C to 110°C.

This bearing is interchangeable with KAYDON models, ideal for precision equipment like robotics or medical devices where thin profiles are essential. Weighing just 13g, it’s lightweight yet robust for its compact size, meeting ABEC-1 tolerance standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S09003XS0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.013mm to 0
  • Outer Dia 96 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 2.5 mm
  • Width Tolerance +.000 –.127mm
  • Thin Section Bearings Type UltraSlim Bearings
  • Series 2.5 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 92.2 mm
  • Internal Diameter On Outer Ring (Small Side Face) 93.8 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 246 lbf
  • Static Radial Load 406 lbf
  • Static Thrust Load 180 lbf
  • Static Moment 3 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 14.9 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 13.0 g
  • price（$） 276.36

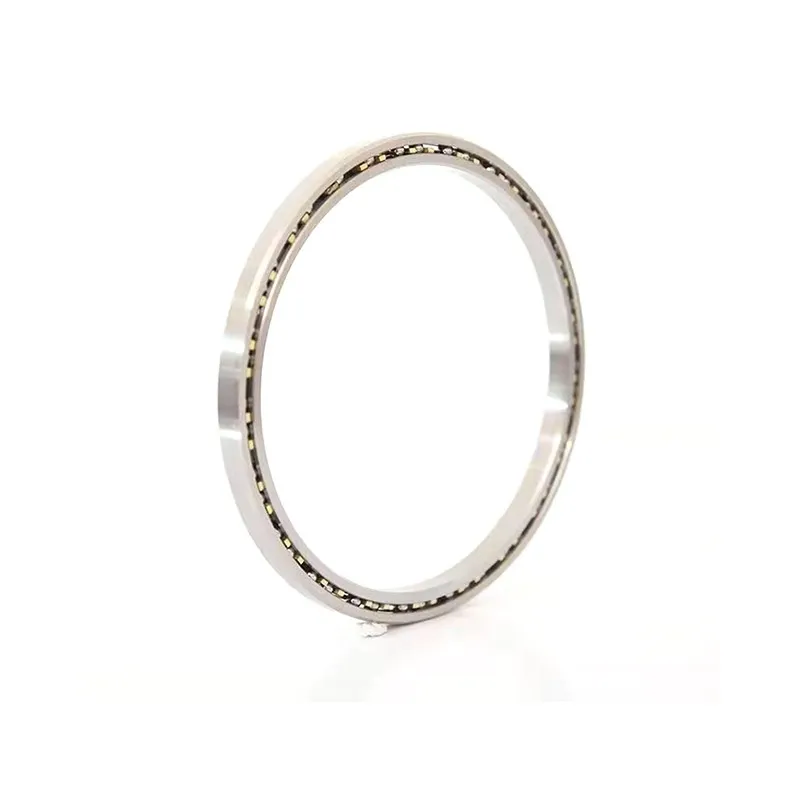

Constant Section (CS) Bearings S09003XS0 dimension drawing
Download DWG Download PDF

Features

How Is S09003XS0 Bearing Engineered for Reliability?

S09003XS0 Bearing features a stainless steel construction, ensuring durability and resistance to corrosion.
Its ultra-slim design at just 2.5 mm wide makes it ideal for applications where space is limited.

The four-point contact design allows it to handle both radial and thrust loads efficiently.
With a dynamic radial load capacity of 246 lbf, it performs reliably in various conditions.

S09003XS0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class ensures consistent performance for precision tasks.

Application

Ideal for Precision: S09003XS0 Bearing
S09003XS0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its ultra-thin design saves space without compromising performance. The stainless steel construction ensures durability in demanding environments.

In automotive applications, S09003XS0 Bearing fits well in compact systems like steering mechanisms, offering reliable support with minimal weight. Its metric sizing makes it a versatile choice for various vehicle designs.

For medical devices, S09003XS0 Bearing’s smooth operation is ideal for delicate equipment such as surgical tools. The open seal design allows for easy cleaning, which is essential in sterile environments.

In consumer electronics, S09003XS0 Bearing can be found in devices like printers, where its low profile and quiet operation enhance user experience. The lightweight design also contributes to energy efficiency.

Q&A
