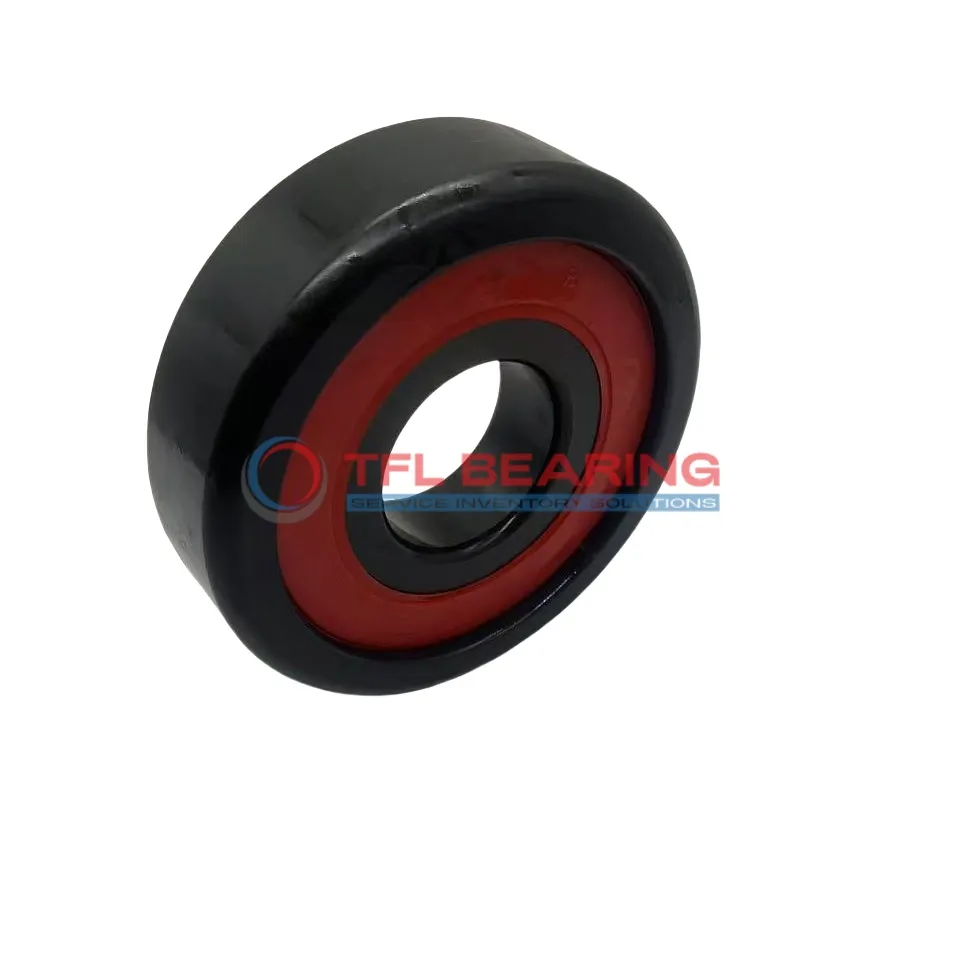

Mast Guide Bearings MG 475‑1

Mast Guide Bearings MG 475‑1

The MG 475-1 mast guide bearing is a sturdy unit measuring 120.6mm in inner diameter and 200.8mm in outer diameter, with a width of 51.5mm. Built for heavy-duty use, it handles dynamic loads up to 195,000 N and static loads up to 412,000 N.

Its robust design includes chamfered edges for easier installation and alignment. The bearing’s durable construction ensures reliable performance in demanding conditions.

Weighing 6.35kg, it’s suited for applications like construction equipment or industrial machinery where high load capacity is essential. Its dimensions and strength make it a practical choice for mast guidance systems.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 475‑1
  • Brand TFL & OEM
  • Inner Diameter (d) 120.649 mm
  • Outer Diameter (D) 200.80 mm
  • Inner Ring Width (b) 47.5 mm
  • Outer Ring Width (B) 51.500 mm
  • Radius (R) chamfer
  • Dynamic Capacity (Cr.) 195,000 N
  • Static Capacity (Cor.) 412,000 N
  • Weight 6.3503 Kg
Mast Guide Bearings MG 475‑1 dimension drawing
Download DWG Download PDF

Features

How Is MG 475-1 Bearing Engineered for Reliability?

MG 475-1 Bearing is built to handle high dynamic loads, with a capacity of 195,000 N, ensuring robust performance in demanding conditions.
Its static capacity of 412,000 N makes it suitable for applications requiring stability under heavy loads.
The precise dimensions (120.649 mm x 200.80 mm x 51.500 mm) ensure a perfect fit for mast guide systems.
With a weight of 6.3503 kg, it balances durability and ease of installation.

Application

Industrial Uses of MG 475-1 Bearing
MG 475-1 Bearing is commonly used in heavy machinery, such as cranes and construction equipment, where its high dynamic capacity handles substantial loads effortlessly. The robust design ensures longevity even in demanding environments.

In automation systems, MG 475-1 Bearing provides smooth guidance for robotic arms and assembly lines, thanks to its precise dimensions and reliable performance. Its chamfered edges also simplify installation in tight spaces.

For wind turbines, MG 475-1 Bearing’s static capacity makes it ideal for supporting mast sections, ensuring stability under varying wind conditions. The weight distribution further enhances its efficiency in large-scale applications.

Where Is MG 475-1 Bearing Used?
You’ll often spot MG 475-1 Bearing in industrial gearboxes, where its durability and load-bearing capacity keep operations running smoothly. The dimensions fit perfectly into standard housing designs.

In material handling systems, MG 475-1 Bearing excels in conveyor rollers, reducing friction and wear over time. Its static capacity ensures it can handle sudden load changes without issues.

Built for Heavy-Duty Use: MG 475-1 Bearing
MG 475-1 Bearing is a go-to choice for mining equipment, where its high static capacity withstands extreme conditions. The weight and size make it suitable for large, rugged machinery.

In marine applications, MG 475-1 Bearing’s corrosion-resistant materials ensure reliable performance in harsh, salty environments. It’s often found in ship cranes and winches.

Automotive vs Aerospace: Applications of MG 475-1 Bearing
In automotive testing rigs, MG 475-1 Bearing handles high loads during durability tests, proving its reliability. The precise dimensions ensure accurate results.

For aerospace ground equipment, MG 475-1 Bearing supports heavy components like landing gear simulators. Its static capacity is crucial for safety-critical applications.
