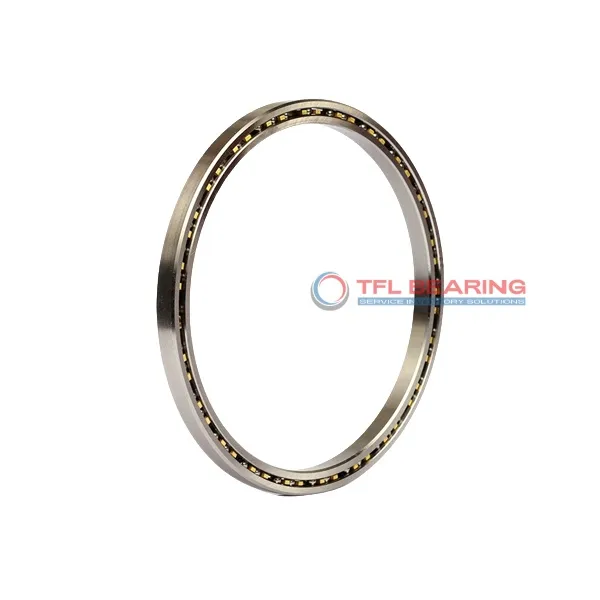

Constant Section (CS) Bearings NG050CP0

Constant Section (CS) Bearings NG050CP0

The NG050CP0 is a constant section ball bearing with a 5″ bore and 7″ outer diameter, featuring a slim 1″ width. Made from chrome steel with brass cage, it’s designed for radial loads up to 6691 lbf.

Its open design and chromium plating ensure smooth operation and resistance to wear. The bearing is lubricated for easy maintenance and performs well in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, making it a versatile choice for replacements. Ideal for applications requiring thin-section bearings, such as robotics or precision machinery.

Weighing 4.3 lbs, it’s lightweight yet durable, and compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NG050CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 7"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.742"
  • Internal Diameter On Outer Ring (Small Side Face) 6.258"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 6691 lbf
  • Static Radial Load 9850 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 10388 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 4.3 lbs
  • price（$） 207.62
Constant Section (CS) Bearings NG050CP0 dimension drawing
Download DWG Download PDF

Features

How Is NG050CP0 Bearing Engineered for Reliability?

NG050CP0 Bearing features chrome steel rings and balls, ensuring durability under radial loads.
Its dynamic radial load capacity of 6691 lbf makes it suitable for demanding applications.

The brass cage maintains ball alignment, reducing friction and wear over time.
With a temperature range of -30°C to 110°C, it performs reliably in various conditions.

NG050CP0 Bearing’s ABEC-1 tolerance class ensures consistent performance and precision.
Its chromium plating adds an extra layer of protection against corrosion.

Application

Common Applications of NG050CP0 Bearing
NG050CP0 Bearing is widely used in industrial machinery, especially in applications where space is limited but high radial load capacity is needed, like robotic arms and conveyor systems. Its thin-section design makes it ideal for compact setups without sacrificing performance.

In the automotive sector, NG050CP0 Bearing can be found in steering systems and electric motors, where its chrome steel construction ensures durability. The inch sizing makes it a good fit for many North American vehicle models.

For automation equipment, NG050CP0 Bearing’s open design allows for easy lubrication, which is handy in high-speed robotic applications. The brass cage adds stability, reducing wear over time.

Medical imaging devices also benefit from NG050CP0 Bearing’s precision, as its ABEC-1 tolerance ensures smooth operation. The chromium plating helps resist corrosion in sterile environments.

Around the home, NG050CP0 Bearing might appear in printers or small appliances, where its reliability keeps things running quietly. The lightweight design is a plus for portable devices.
