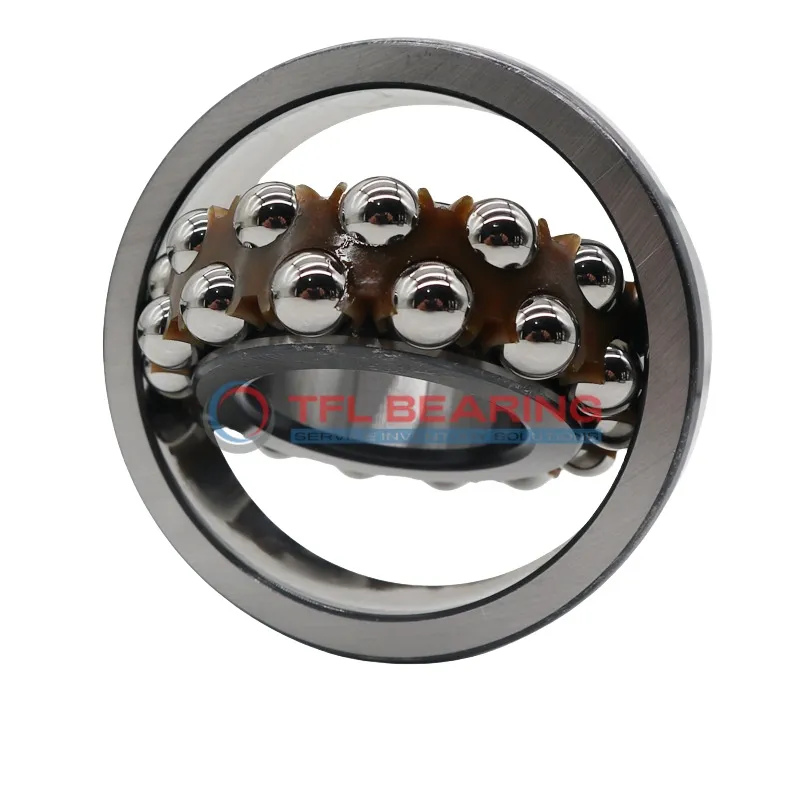

Self Aligning Ball Bearings 2309-K C/3

Brand: TFL Bearing Interchangeable: SKF 2309-K C/3 45 mm × 100 mm × 36 mm Metric Sealed
Part number: 2309-K C/3
Self Aligning Ball Bearings 2309-K C/3
In Stock
US$80.20 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.015mm to 0
Width36 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring60.9 mm
Internal Diameter On Outer Ring90 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load8,775 lbf
Static Radial Load3,015 lbf
Temperature Range-30° to 110 °C
Max Speed4,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight1.3 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2309-K C/3 is a self-aligning ball bearing with a 45mm tapered bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8775 lbf and operates smoothly at speeds reaching 4300 RPM.

Its double-row design and sealed construction offer reliable performance, while the nylon cage reduces friction for quieter operation. The bearing works efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 1.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Features

Performance Features of 2309-K C/3 Bearing

2309-K C/3 Bearing features a double-row design with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 8775 lbf, making it suitable for heavy-duty applications.

The sealed construction and nylon cage ensure smooth operation with minimal maintenance.
With a maximum speed of 4,300 rpm, it balances performance and durability.

2309-K C/3 Bearing operates efficiently in temperatures from -30° to 110°C.
Its tapered bore design simplifies installation and enhances alignment accuracy.

Application

Industrial Uses of 2309-K C/3 Bearing
2309-K C/3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, ensuring longer service life in dusty environments.

Where Is 2309-K C/3 Bearing Used?
In automotive applications, 2309-K C/3 Bearing can be found in gearboxes and drivetrains, handling radial loads with ease. Its tapered bore allows for secure mounting, reducing slippage during operation.

Built for Heavy-Duty Use: 2309-K C/3 Bearing
For heavy machinery like crushers and pulverisers, 2309-K C/3 Bearing offers reliable performance under high radial loads. The nylon cage provides smooth operation while reducing noise levels.

Automotive vs Industrial: Applications of 2309-K C/3 Bearing
In industrial fans, 2309-K C/3 Bearing ensures smooth rotation even at moderate speeds. Meanwhile, in automotive wheel hubs, its durability and load capacity make it a dependable choice.

Perfect Fit for Automation: 2309-K C/3 Bearing
2309-K C/3 Bearing works well in robotic arms, where its self-aligning capability accommodates movement variations. The lubricated design minimises maintenance needs in continuous operation.
