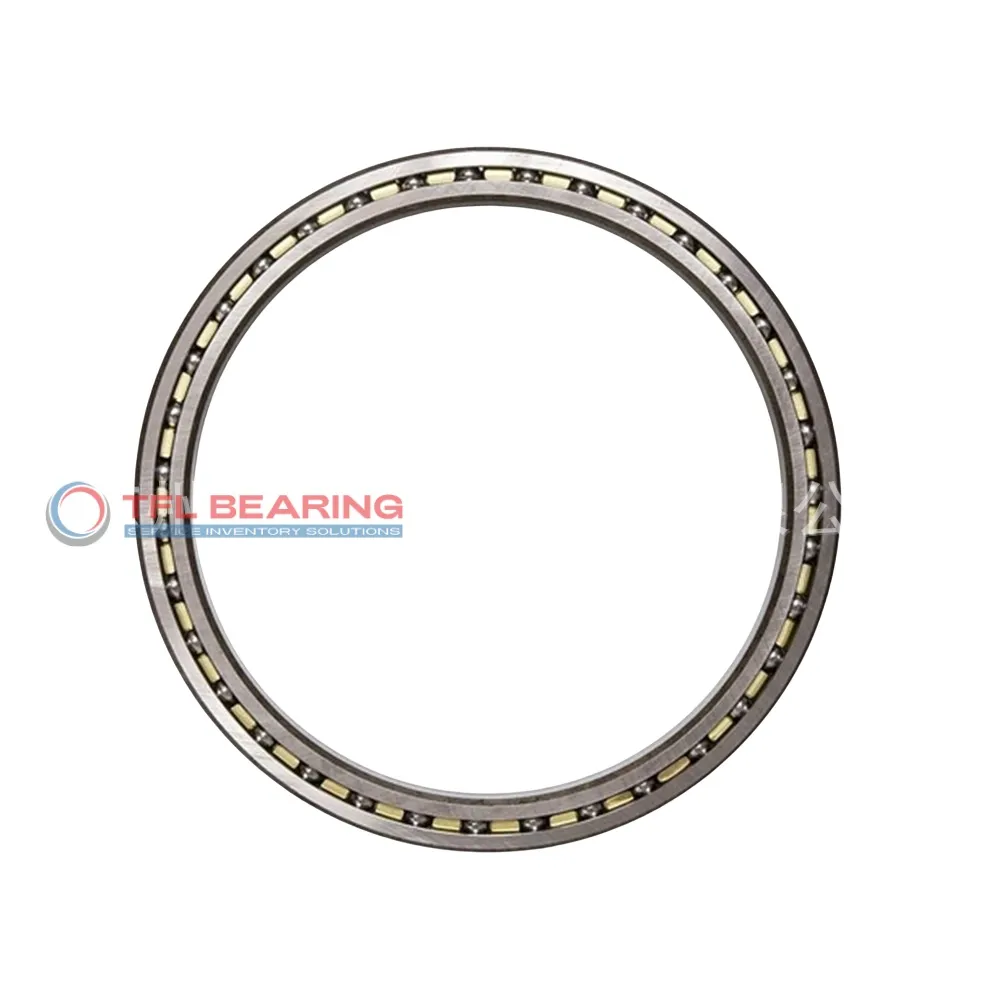

Constant Section (CS) Bearings NF065CP0

Constant Section (CS) Bearings NF065CP0

The NF065CP0 is a constant section ball bearing measuring 6.5″×8″×0.75″, designed for radial loads and made from durable chrome steel. It handles dynamic radial loads up to 4461 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design and brass cage ensure reliable performance, while the chromium plating adds extra corrosion resistance. The bearing is lubricated for easy maintenance and long service life.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications like robotics or precision machinery where space is limited but performance is key.

Weighing 2.9 lbs, it’s lightweight yet sturdy, with ABEC-1 tolerance for consistent operation. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NF065CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 6.5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 8"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 0.75"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NF 3/4" x 3/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 7.055"
  • Internal Diameter On Outer Ring (Small Side Face) 7.445"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 4461 lbf
  • Static Radial Load 8180 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 7516 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 2.9 lbs
  • price（$） 197.6
Constant Section (CS) Bearings NF065CP0 dimension drawing
Download DWG Download PDF

Features

How Does NF065CP0 Bearing Reduce Friction?

NF065CP0 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its brass cage maintains proper ball alignment, reducing wear and enhancing efficiency.
The ABEC-1 tolerance class ensures consistent performance in radial load applications.
With a dynamic radial load capacity of 4461 lbf, it handles demanding tasks reliably.

Built for Reliability: NF065CP0 Bearing

NF065CP0 Bearing is designed with chromium plating for added durability and corrosion resistance.
Its thin-section construction saves space while maintaining high load capacity.
The lubricated design reduces maintenance needs and extends service life.
Operating between -30°C to 110°C, it performs well in various environments.

Performance Features of NF065CP0 Bearing

NF065CP0 Bearing’s chrome steel construction provides excellent strength and wear resistance.
The precise ABEC-1 tolerance ensures smooth rotation under radial loads.
With a static radial load capacity of 8180 lbf, it offers reliable performance.
Its compact 0.75″ width makes it suitable for space-constrained applications.

Application

Industrial Uses of NF065CP0 Bearing
NF065CP0 Bearing is commonly used in industrial machinery, especially where space constraints require thin-section designs, such as robotic arms and packaging equipment. Its chrome steel construction ensures durability even in demanding environments.

Where Is NF065CP0 Bearing Used?
You’ll often find NF065CP0 Bearing in automation systems, where its precise radial load handling supports smooth operation in conveyor belts and assembly lines. The brass cage adds an extra layer of reliability for long-term use.

Built for Heavy-Duty Use: NF065CP0 Bearing
NF065CP0 Bearing excels in applications like printing presses, where consistent performance under radial loads is essential. The chromium plating helps resist wear, making it a solid choice for high-use scenarios.

Automotive vs Aerospace: Applications of NF065CP0 Bearing
In automotive systems, NF065CP0 Bearing fits well in steering mechanisms, thanks to its inch sizing and ABEC-1 tolerance. For aerospace, its lightweight design and reliability make it suitable for instrumentation panels.

Practical Applications of NF065CP0 Bearing
NF065CP0 Bearing works great in medical imaging devices, where its thin profile and smooth operation are key. The lubricated design ensures quiet performance, ideal for sensitive environments.
