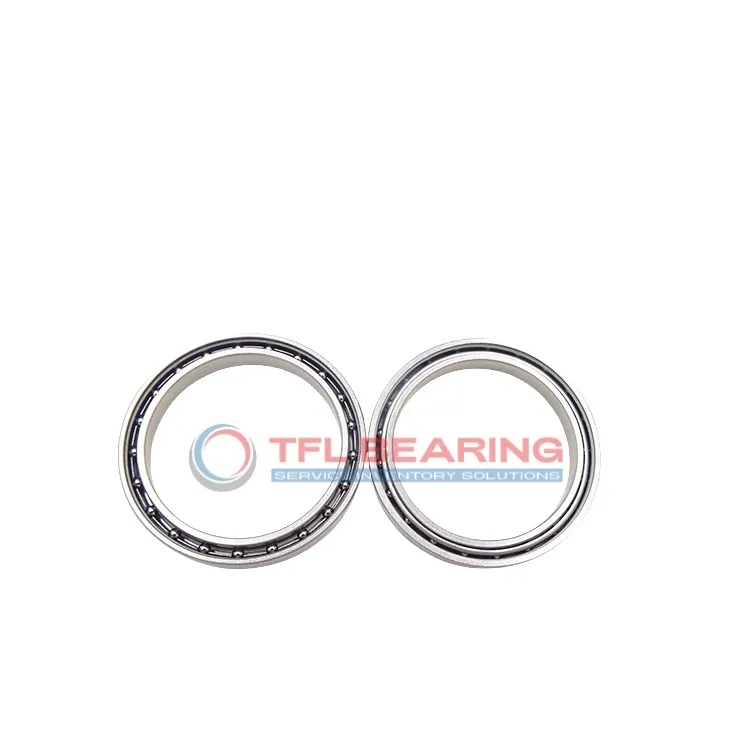

Constant Section (CS) Bearings ND055CP0

Constant Section (CS) Bearings ND055CP0

The ND055CP0 is a constant section bearing measuring 5.5″ by 6.5″ with a slim 0.5″ width, crafted from durable chrome steel. Its open design and brass cage ensure smooth operation under radial loads up to 2063 lbf.

This single-row ball bearing features a chromium-plated surface for added protection and fits standard 1/2″ x 1/2″ series applications. With ABEC-1 precision, it maintains tight clearances between 0.0000″ to 0.0005″.

Ideal for machinery requiring thin-section bearings, it operates in temperatures from -30°C to 110°C. The bearing comes pre-lubricated and is interchangeable with KAYDON models, making maintenance straightforward.

Weighing just 1.06 lbs, it offers a good balance of strength and lightweight design. Compliant with RoHS standards, it’s a reliable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number ND055CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5.5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 6.5"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series ND 1/2" x 1/2"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.870"
  • Internal Diameter On Outer Ring (Small Side Face) 6.130"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2063 lbf
  • Static Radial Load 4100 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 3937 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.06 lbs
  • price（$） 151.47
Constant Section (CS) Bearings ND055CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of ND055CP0 Bearing

ND055CP0 Bearing is crafted with chrome steel rings and balls, offering reliable radial load capacity up to 2063 lbf.
Its brass cage ensures smooth operation, keeping the balls aligned for reduced friction.
The chromium plating enhances durability, making it suitable for various industrial applications.
With a temperature range of -30°C to 110°C, it performs well in diverse environments.

Application

Industrial Uses of ND055CP0 Bearing
ND055CP0 Bearing is commonly used in industrial machinery where space is limited but precision is essential, such as robotics and packaging equipment. Its thin-section design ensures it fits neatly into compact assemblies without compromising performance.

Where Is ND055CP0 Bearing Used?
You’ll often find ND055CP0 Bearing in automation systems, particularly in robotic arms and conveyor mechanisms. Its chromium plating adds durability, making it suitable for environments where corrosion resistance is important.

Built for Heavy-Duty Use: ND055CP0 Bearing
ND055CP0 Bearing handles radial loads efficiently, making it ideal for applications like rotary tables and medical imaging devices. The brass cage provides smooth operation, even under continuous use.

Automotive vs Aerospace: Applications of ND055CP0 Bearing
In automotive systems, ND055CP0 Bearing is used in steering mechanisms due to its precise radial load capacity. For aerospace, its lightweight design and reliability make it a good fit for instrumentation panels.

Perfect Fit for Automation: ND055CP0 Bearing
ND055CP0 Bearing works well in 3D printers and CNC machines, where its thin profile and smooth rotation are key. The ABEC-1 tolerance ensures consistent performance in high-precision tasks.
