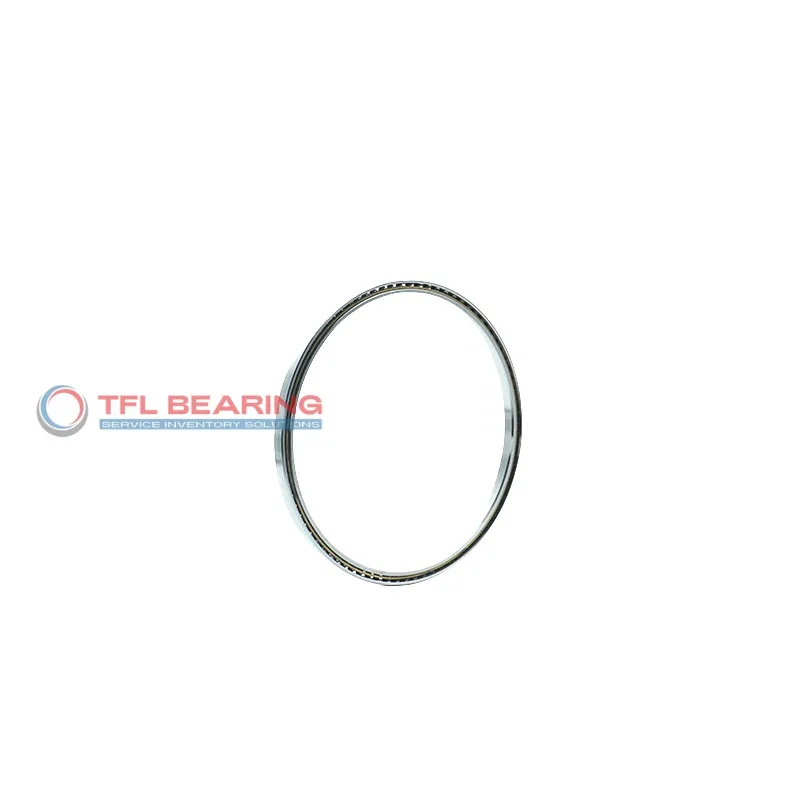

Constant Section (CS) Bearings NC300AR0

Constant Section (CS) Bearings NC300AR0

The NC300AR0 is a constant section bearing with a 30-inch bore and 30.75-inch outer diameter, featuring a slim 0.375-inch width. Made from chrome steel with brass cage, it’s designed for angular contact loads and offers smooth operation.

This bearing handles dynamic radial loads up to 3561 lbf and static radial loads up to 17960 lbf, making it suitable for moderate-speed applications. Its 30° contact angle ensures stable performance under combined loads.

The open design and chromium plating provide durability and easy maintenance. It works in temperatures from -30°C to 110°C and is interchangeable with KAYDON bearings.

Ideal for machinery requiring thin-section bearings, such as robotics or precision equipment. Weighing 3.02 lbs, it’s lightweight yet robust for its size, complying with RoHS standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NC300AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 30"
  • Bore Dia Tolerance -0.0018"– 0"
  • Outer Dia 30.75"
  • Outer Dia Tolerance -0.0018"– 0"
  • Width 0.375"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NC 3/8" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 30.277"
  • Internal Diameter On Outer Ring (Small Side Face) 30.473"
  • Internal Diameter On Outer Ring (Large Side Face) 30.484"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 3561 lbf
  • Static Radial Load 17960 lbf
  • Static Thrust Load 10160 lbf
  • Static Moment 51850 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 5196 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 3.02 lbs
  • price（$） 2985.93
Constant Section (CS) Bearings NC300AR0 dimension drawing
Download DWG Download PDF

Features

How Is NC300AR0 Bearing Engineered for Reliability?

NC300AR0 Bearing features a single-row angular contact design, optimised for handling both radial and thrust loads efficiently.
The 30° contact angle enhances load distribution, ensuring smooth operation under various conditions.

Constructed from chrome steel rings and balls, NC300AR0 Bearing offers strong resistance to wear and fatigue.
Its brass cage maintains proper ball alignment, reducing friction and extending service life.

With a dynamic radial load capacity of 3561 lbf, NC300AR0 Bearing performs reliably in demanding applications.
The ABEC-1 tolerance class ensures consistent precision, making it suitable for angular contact requirements.

NC300AR0 Bearing operates within a temperature range of -30°C to 110°C, adapting to diverse environments.
Its chromium plating provides additional protection against corrosion, enhancing durability.

Application

Key Fields for NC300AR0 Bearing
NC300AR0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin section design saves space without compromising strength. The angular contact design handles combined loads efficiently, making it versatile for various setups.

In aerospace applications, NC300AR0 Bearing’s chromium plating and brass cage provide durability in control systems and actuator mechanisms. Its ABEC-1 tolerance ensures reliable performance even under demanding conditions.

For medical imaging devices, NC300AR0 Bearing’s smooth operation and consistent load capacity make it suitable for rotating components. The chrome steel construction ensures long service life with minimal maintenance.

In packaging machinery, NC300AR0 Bearing’s lightweight design and high static load capacity help maintain precision at high speeds. The open seal type allows for easy lubrication, reducing downtime.
