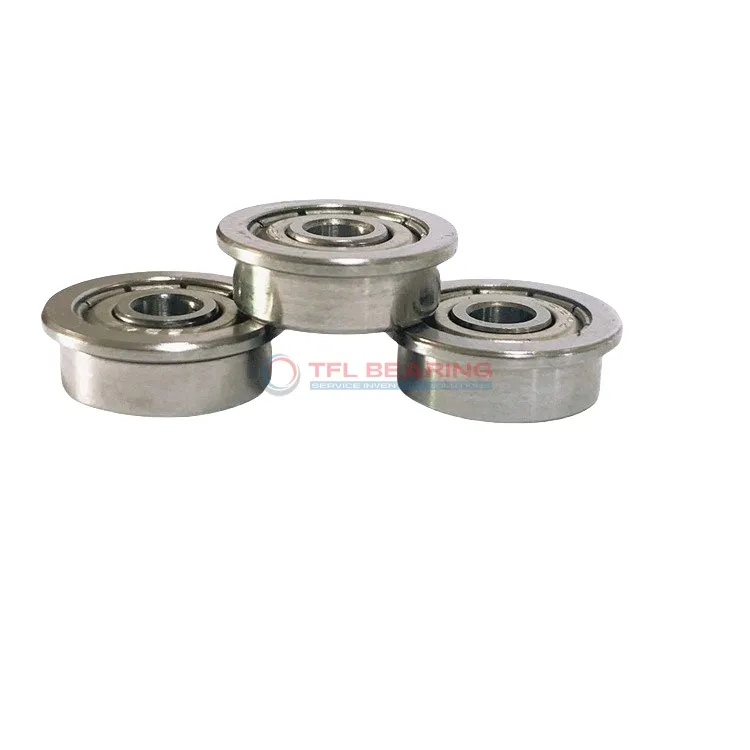

Flanged Deep Groove Ball Bearings W 63800 R-2Z

Flanged Deep Groove Ball Bearings W 63800 R-2Z

The W 63800 R-2Z is a compact flanged deep groove ball bearing, measuring 10mm by 19mm with a 7mm width. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

This shielded bearing handles radial loads up to 333 lbf and can spin at speeds up to 38,000 RPM. Its flange design helps with easy mounting and positioning in tight spaces.

The bearing comes pre-lubricated with grease, making maintenance straightforward. It performs well in temperatures ranging from -30°C to 120°C.

Ideal for small machinery or appliances where space is limited, this model is interchangeable with SKF bearings. Weighing just 7.8 grams, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 63800 R-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 21 mm
  • Flange Thickness 1.5 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 333 lbf
  • Static Radial Load 187 lbf
  • Max Speed 38000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0078 kg
  • Price（$） 2.4
Flanged Deep Groove Ball Bearings W 63800 R-2Z dimension drawing
Download DWG Download PDF

Features

How Does W 63800 R-2Z Bearing Reduce Friction?

W 63800 R-2Z Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design helps retain lubrication, reducing wear and maintenance needs.
The single-row construction and precise tolerances contribute to efficient radial load handling.
With a maximum speed of 38,000 rpm, it offers reliable performance in various applications.

Built for Reliability: W 63800 R-2Z Bearing

W 63800 R-2Z Bearing is crafted with stainless steel components, providing excellent corrosion resistance.
The flanged design ensures secure mounting, preventing misalignment during operation.
Its dynamic radial load capacity of 333 lbf makes it suitable for demanding tasks.
The grease lubrication enhances longevity, even in high-speed conditions.

Why Choose W 63800 R-2Z Bearing for Precision Tasks?

W 63800 R-2Z Bearing’s precise tolerances and shielded seals ensure consistent performance in precision applications.
The stainless steel construction resists wear, maintaining accuracy over time.
Its compact size and flange design make it ideal for space-constrained installations.
With a temperature range of -30° to 120°C, it adapts to various working environments.

Application

Industrial Uses of W 63800 R-2Z Bearing
W 63800 R-2Z Bearing is commonly used in small industrial motors and pumps, where its shielded design helps keep contaminants out. The stainless steel construction ensures it handles moderate radial loads with ease.

What Makes W 63800 R-2Z Bearing a Preferred Choice?
In automation systems, W 63800 R-2Z Bearing fits neatly into compact spaces like robotic arms, thanks to its flanged design. Its grease lubrication allows for smooth, low-maintenance operation over long periods.

Perfect Fit for Automation: W 63800 R-2Z Bearing
For 3D printers, W 63800 R-2Z Bearing provides reliable motion control in the print head assembly. The metric sizing makes it a versatile choice for various European and Asian machine designs.

Medical vs Industrial: Where W 63800 R-2Z Bearing Excels
In medical devices like handheld surgical tools, W 63800 R-2Z Bearing offers quiet, precise movement. Its stainless steel materials also resist corrosion, which is vital in sterile environments.

Where to Use W 63800 R-2Z Bearing
Around the home, W 63800 R-2Z Bearing can be found in small appliances like electric fans, where its low noise and durability are appreciated. The shielded seals help extend its lifespan by keeping dust at bay.
