Snap Ring Groove Ball Bearings 6006 NR

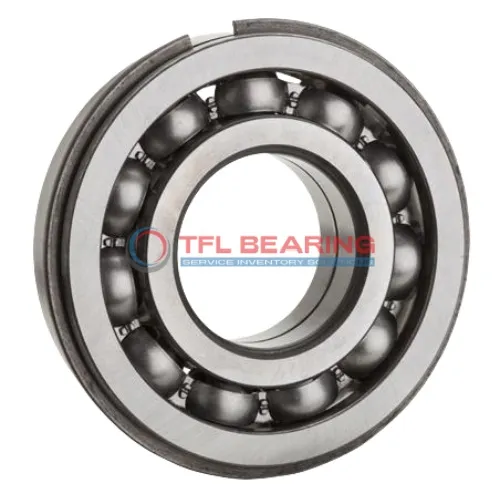

Snap Ring Groove Ball Bearings 6006 NR

The 6006 NR is a snap ring groove ball bearing with a 30mm bore and 55mm outer diameter, measuring 13mm wide. Made from chrome steel, it’s built to handle radial loads up to 3102 lbf and speeds of 17000 RPM.

Its snap ring feature on the outer ring keeps it securely in place, making installation and maintenance straightforward. The stainless steel cage adds durability, ensuring smooth operation over time.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing just 0.12kg, it’s lightweight yet robust. Ideal for applications like electric motors or pumps where secure mounting and radial load handling are needed. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6006 NR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.12mm to 0
  • Outside Diameter Of Snap Ring 60.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3102 lbf
  • Static Radial Load 1866 lbf
  • Temperature Range -30° to 120 °C
  • REACH Compliant
  • Max Speed 17000 rpm
  • Weight 0.12 kg
Snap Ring Groove Ball Bearings 6006 NR dimension drawing
Download DWG Download PDF

Features

Performance Features of 6006 NR Bearing

6006 NR Bearing features a snap ring groove on the outer ring, ensuring secure mounting in various applications.
Its chrome steel construction provides durability and resistance to wear under radial loads.

The dynamic radial load capacity of 3102 lbf makes 6006 NR Bearing suitable for demanding operations.
With a maximum speed of 17,000 rpm, it delivers reliable performance in high-speed scenarios.

6006 NR Bearing operates efficiently in temperatures ranging from -30° to 120°C.
The stainless steel cage maintains ball alignment, reducing friction and extending service life.

Its compact size of 30 mm×60.7 mm×13 mm allows for easy integration into space-constrained designs.
The snap ring feature simplifies installation, saving time and effort during assembly.

Application

Industrial Uses of 6006 NR Bearing
6006 NR Bearing is commonly used in conveyor systems, where its snap ring groove ensures secure mounting during continuous operation. The open design allows for easy lubrication, extending service life in dusty environments.

Where Is 6006 NR Bearing Used?
You’ll often find 6006 NR Bearing in electric motors, where its radial load capacity handles high-speed rotations smoothly. The chrome steel construction also makes it suitable for industrial fans and pumps.

Built for Heavy-Duty Use: 6006 NR Bearing
6006 NR Bearing works well in agricultural machinery, thanks to its sturdy snap ring feature that prevents slippage under vibration. Its metric sizing fits seamlessly into European-designed equipment.

Automotive vs Industrial: Applications of 6006 NR Bearing
In automotive alternators, 6006 NR Bearing provides reliable performance, while its industrial use extends to packaging machines. The stainless steel cage resists wear in both settings.

Perfect Fit for Automation: 6006 NR Bearing
6006 NR Bearing is a go-to choice for robotic arms, where precision and durability matter. The snap ring groove ensures stable positioning during repetitive movements.
