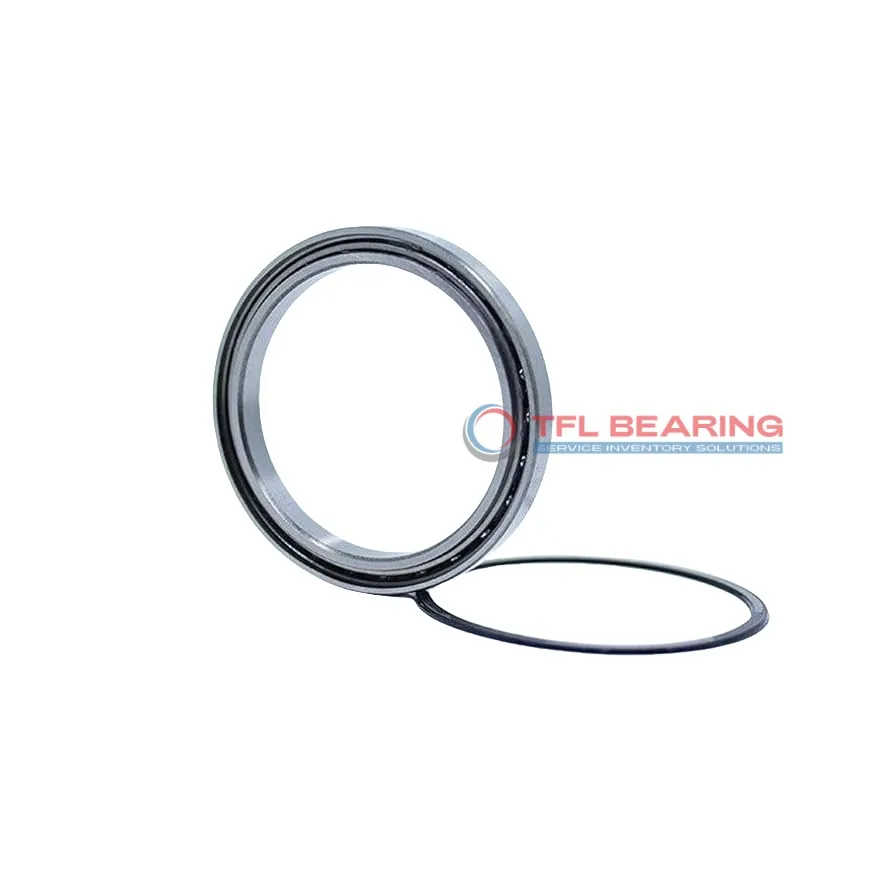

Constant Section (CS) Bearings NB035AR0

Constant Section (CS) Bearings NB035AR0

The NB035AR0 is a constant section bearing with a 3.5″ bore and 4.125″ outer diameter, featuring a slim 0.3125″ width. Made from chrome steel with brass cage, it’s designed for angular contact loads and offers smooth operation.

This bearing handles radial loads up to 801 lbf and static thrust loads of 1930 lbf, with a 30° contact angle for balanced performance. Its open design allows easy lubrication, while the Endura-kote plating adds durability.

Ideal for applications requiring precise movement, such as robotics or medical equipment. The ABEC-1 tolerance ensures reliable performance in temperatures from -30°C to 110°C.

Weighing just 0.27 lbs, it’s lightweight yet robust, and interchangeable with KAYDON bearings for easy replacements. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NB035AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 3.5"
  • Bore Dia Tolerance -0.0008"– 0"
  • Outer Dia 4.125"
  • Outer Dia Tolerance -0.0006"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 3.731"
  • Internal Diameter On Outer Ring (Small Side Face) 3.893"
  • Internal Diameter On Outer Ring (Large Side Face) 3.962"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 801 lbf
  • Static Radial Load 1790 lbf
  • Static Thrust Load 1930 lbf
  • Static Moment 5180 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1840 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.27 lbs
  • price（$） 86.2

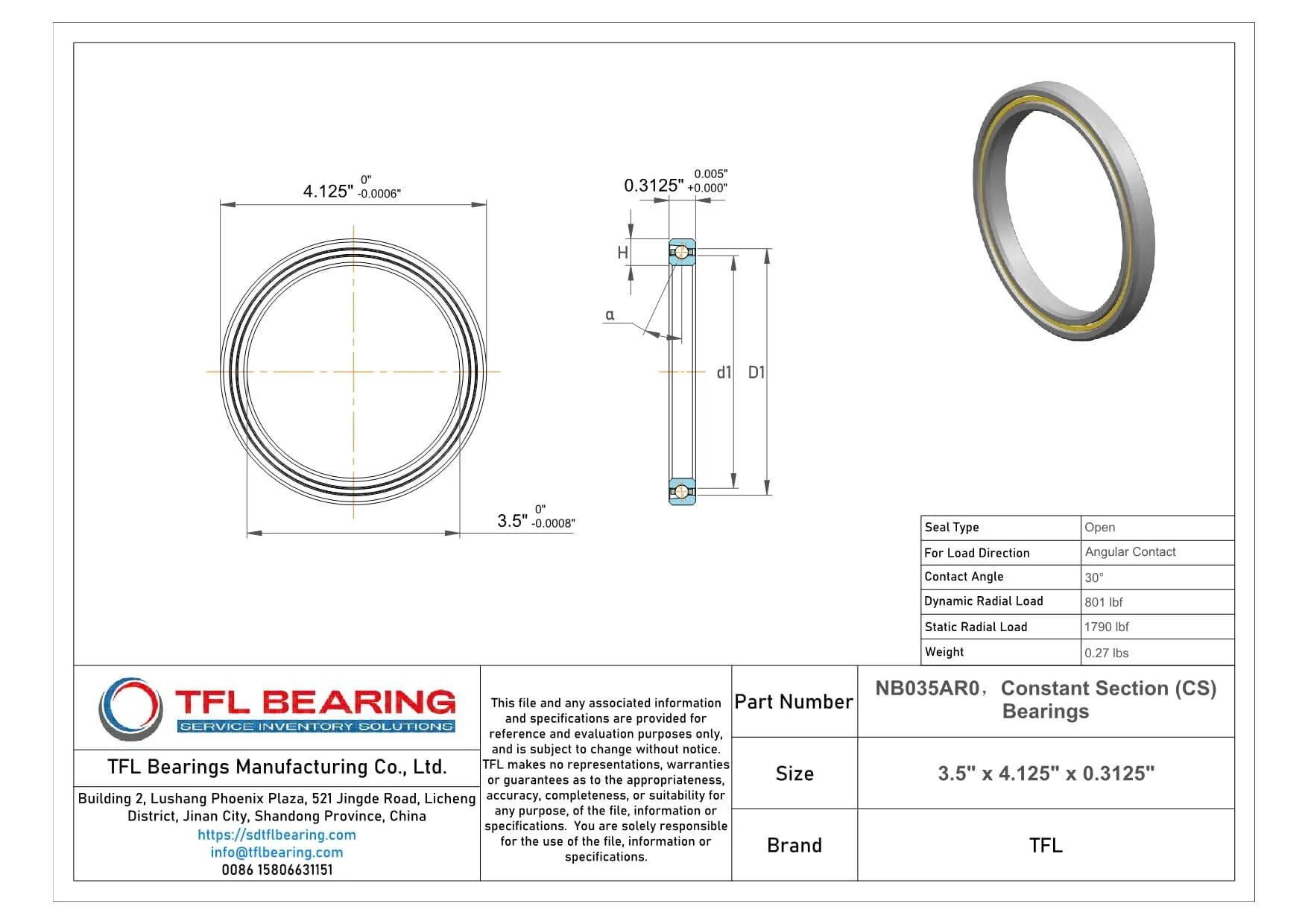

Constant Section (CS) Bearings NB035AR0 dimension drawing
Download DWG Download PDF

Features

How Is NB035AR0 Bearing Engineered for Reliability?

NB035AR0 Bearing features a single-row angular contact design, optimised for precise load distribution.
Its 30° contact angle enhances stability, making it suitable for applications requiring high accuracy.
The chrome steel rings and balls provide durability, while the brass cage ensures smooth operation.
With a dynamic radial load capacity of 801 lbf, it delivers consistent performance in various conditions.

Application

Essential Roles of NB035AR0 Bearing
NB035AR0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery, where its angular contact design ensures smooth movement. The chromium plating adds extra durability, making it suitable for high-use environments.

Where Is NB035AR0 Bearing Used?
In aerospace applications, NB035AR0 Bearing provides reliable performance in control systems and actuators, thanks to its thin-section design. Its brass cage also reduces friction, which is crucial for maintaining efficiency in critical operations.

Built for Heavy-Duty Use: NB035AR0 Bearing
For medical imaging devices, NB035AR0 Bearing offers consistent performance due to its chrome steel construction. The ABEC-1 tolerance ensures precision, which is vital for accurate diagnostics and patient care.

Automotive vs Aerospace: Applications of NB035AR0 Bearing
In automotive steering systems, NB035AR0 Bearing handles angular loads effectively, contributing to smoother handling. Meanwhile, in aerospace, its lightweight design and high load capacity make it ideal for flight control mechanisms.

Practical Applications of NB035AR0 Bearing
NB035AR0 Bearing is a great fit for 3D printers, where its precision and low friction enhance print quality. The lubricated design also ensures long-lasting performance, even with continuous use.
