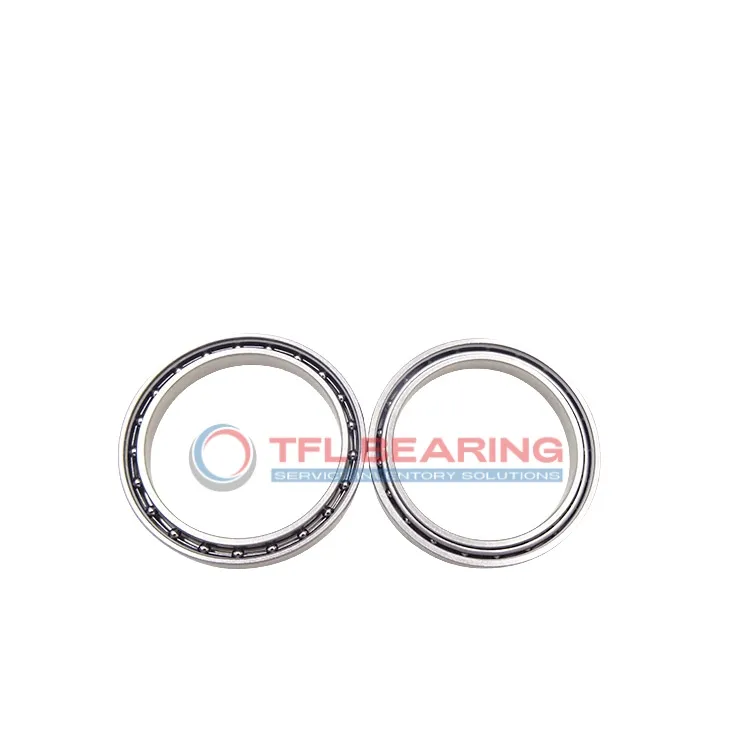

Constant Section (CS) Bearings KC055CP0

Constant Section (CS) Bearings KC055CP0

The KC055CP0 is a slim, open-type ball bearing measuring 5.5″ in bore and 6.25″ in outer diameter, with a compact width of just 0.375″. Made from chrome steel with a brass cage, it offers reliable performance for radial loads.

This bearing handles dynamic radial loads up to 1274 lbf and fits ABEC-1 tolerance standards. Its thin-section design makes it ideal for space-constrained applications where standard bearings won’t fit.

The open construction allows easy access for lubrication and maintenance. It operates smoothly in temperatures ranging from -30°C to 110°C.

Weighing only 0.59 lbs, it’s a lightweight solution for machinery requiring slim bearings. Compliant with RoHS standards, it’s interchangeable with KAYDON models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number KC055CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5.5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 6.25"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 0.375"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Open Bearings
  • Series KC 3/8" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.777"
  • Internal Diameter On Outer Ring (Small Side Face) 5.973"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1274 lbf
  • Static Radial Load 2830 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 2594 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.59 lbs
  • price（$） 114.13
Constant Section (CS) Bearings KC055CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of KC055CP0 Bearing

KC055CP0 Bearing is crafted with chrome steel rings and balls, offering reliable performance under radial loads.
Its dynamic radial load capacity reaches 1274 lbf, making it suitable for various applications.
The brass cage ensures smooth operation by maintaining proper ball alignment.
With a temperature range of -30°C to 110°C, it performs well in diverse environments.

Why Choose KC055CP0 Bearing for Precision Tasks?

KC055CP0 Bearing features a thin section design, ideal for space-constrained applications.
Its ABEC-1 tolerance class ensures consistent precision and smooth operation.
The chrome steel construction provides durability and resistance to wear.
Lubricated for optimal performance, it reduces friction and extends service life.

Engineered for Precision: KC055CP0 Bearing

KC055CP0 Bearing’s single-row construction enhances its radial load capacity.
The open seal type allows for easy maintenance and inspection.
With a static radial load of 2830 lbf, it handles demanding conditions effectively.
Its lightweight design at 0.59 lbs makes it easy to integrate into various systems.

Steel vs Ceramic Bearings: Strengths of KC055CP0 Bearing

KC055CP0 Bearing uses chrome steel for both rings and balls, ensuring strength and durability.
The brass cage adds stability, reducing noise during operation.
Its ISO radial load rating of 2594 lbf highlights its reliability.
Designed for inch-based systems, it offers compatibility with various machinery.

Application

Key Fields for KC055CP0 Bearing
KC055CP0 Bearing is commonly used in industrial equipment like rotary tables and indexing devices, where its thin section design saves space without compromising load capacity. The open seal type allows for easy lubrication, extending service life in dusty environments.

In robotics, KC055CP0 Bearing provides smooth rotation for articulated arms and joints, thanks to its precise ABEC-1 tolerance. The brass cage reduces friction, making it ideal for repetitive motion applications.

For aerospace applications, KC055CP0 Bearing’s chrome steel construction handles radial loads in control systems and instrumentation panels. Its lightweight design (0.59 lbs) helps maintain fuel efficiency while ensuring reliability.

In medical imaging devices, KC055CP0 Bearing offers quiet operation and minimal vibration, crucial for maintaining scan accuracy. The inch sizing makes it compatible with North American equipment standards.

Consumer electronics like high-end turntables benefit from KC055CP0 Bearing’s smooth performance and low maintenance requirements. The lubricated design ensures consistent operation even with frequent use.
