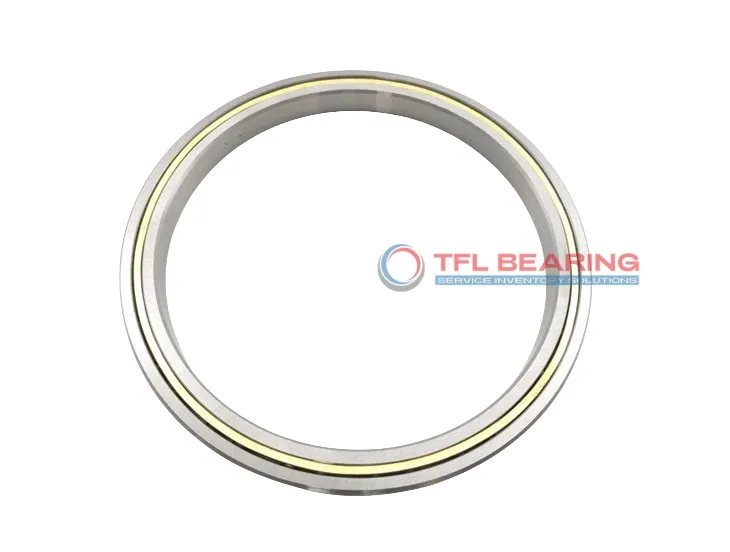

Constant Section (CS) Bearings K25013CP0

Constant Section (CS) Bearings K25013CP0

The K25013CP0 is a constant section ball bearing with a slim 13mm width and dimensions of 250mm by 276mm, made from sturdy chrome steel. It handles radial loads up to 3523 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design and brass cage ensure durability and easy maintenance, while the ABEC-1 tolerance class offers reliable performance. The bearing is pre-lubricated for immediate use.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications requiring slim profiles, such as robotics or precision machinery.

Weighing 0.75kg, it’s lightweight yet robust. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K25013CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 250 mm
  • Bore Dia Tolerance -0.036mm to 0
  • Outer Dia 276 mm
  • Outer Dia Tolerance -0.036mm to 0
  • Width 13 mm
  • Width Tolerance +.000 –.254mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 13 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 259.7 mm
  • Internal Diameter On Outer Ring (Small Side Face) 266.3 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 3523 lbf
  • Static Radial Load 8836 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 4824 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.75 Kg
  • price（$） 167.77
Constant Section (CS) Bearings K25013CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of K25013CP0 Bearing

K25013CP0 Bearing is crafted with chrome steel rings and balls, ensuring durability and resistance to wear.
Its brass cage maintains proper ball alignment, enhancing smooth operation under radial loads.
With a dynamic radial load capacity of 3523 lbf, it performs reliably in various applications.
The bearing operates efficiently within a temperature range of -30°C to 110°C, suitable for diverse environments.

Application

Industrial Uses of K25013CP0 Bearing
K25013CP0 Bearing is commonly used in machine tools, where its thin-section design saves space without compromising load capacity. The open seal allows for easy lubrication, ensuring smooth operation in industrial settings.

Where Is K25013CP0 Bearing Used?
You’ll find K25013CP0 Bearing in robotics, particularly in robotic arms where precise radial movement is needed. Its brass cage reduces friction, making it ideal for high-precision applications.

Built for Heavy-Duty Use: K25013CP0 Bearing
K25013CP0 Bearing handles radial loads effortlessly in conveyor systems, thanks to its chrome steel construction. The ABEC-1 tolerance ensures reliable performance in demanding environments.

Automotive vs Aerospace: Applications of K25013CP0 Bearing
In automotive systems, K25013CP0 Bearing supports components like steering columns, while in aerospace, it’s used in control mechanisms. Its lightweight design is a plus in both industries.

Perfect Fit for Automation: K25013CP0 Bearing
K25013CP0 Bearing works well in automated assembly lines, where its thin profile fits into compact spaces. The metric sizing makes it compatible with a variety of machinery.
