Standard Flanged Ball Bearings F6703

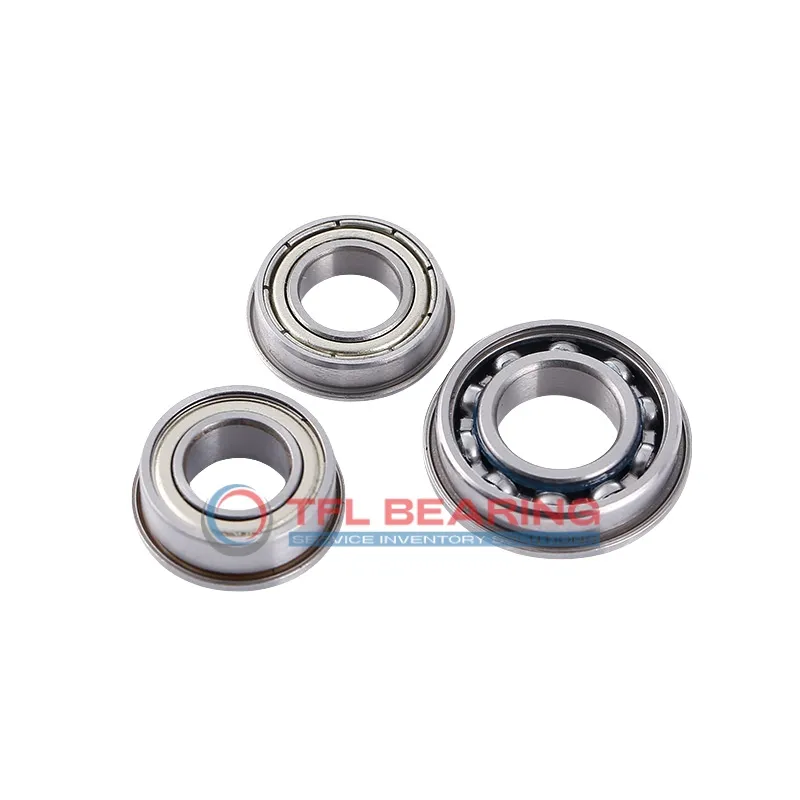

Standard Flanged Ball Bearings F6703

The F6703 is a compact flanged ball bearing with a 17mm bore and 23mm outer diameter, featuring a slim 4mm width. Made from chrome steel, it’s built to handle radial loads up to 225 lbf and speeds reaching 9500 RPM.

Its stainless steel cage and open design make maintenance straightforward, while the flange ensures secure mounting. The bearing operates smoothly in temperatures from -30°C to 110°C.

With ABEC-1 precision and C0 radial clearance, it offers reliable performance for small machinery. Ideal for applications like electric motors or small gearboxes where space is limited.

Compliant with RoHS and REACH standards, this bearing is a practical choice for everyday industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F6703
  • Brand TFL
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008 mm to 0
  • Outer Dia 23 mm
  • Outer Dia Tolerance -0.009 mm to 0
  • Width 4 mm
  • Width Tolerance -0.12 mm to 0
  • Flange Outer Dia 24 mm
  • Flange Thickness 0.8 mm
  • Ball Qty 16
  • Ball Dia 1.588 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 225 lbf
  • Static Radial Load 148 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9500 rpm
  • Price（$） 2.9
Standard Flanged Ball Bearings F6703 dimension drawing
Download DWG Download PDF

Features

Performance Features of F6703 Bearing

F6703 Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity of 225 lbf ensures steady performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 9,500 rpm, it delivers efficient operation for compact designs.

F6703 Bearing operates in temperatures from -30° to 110°C, suitable for diverse environments.
Its open design simplifies lubrication, ensuring smooth functionality over time.

The flanged outer diameter of 24 mm provides secure mounting, enhancing stability.
This makes F6703 Bearing a practical choice for precision radial load applications.

Application

Common Applications of F6703 Bearing
F6703 Bearing is widely used in small electric motors, such as those found in household appliances and cooling fans. Its compact size and open design make it easy to install and maintain in tight spaces.

In automation systems, F6703 Bearing supports lightweight robotic arms and 3D printers, where its radial load capacity ensures smooth movement. The chrome steel construction provides durability for continuous operation.

For consumer electronics like printers and scanners, F6703 Bearing offers reliable performance with minimal noise. The stainless steel cage helps reduce wear, extending the lifespan of these devices.

Medical devices such as dental tools and lab equipment also benefit from F6703 Bearing’s precision. Its ABEC-1 tolerance ensures consistent performance in sensitive applications.
