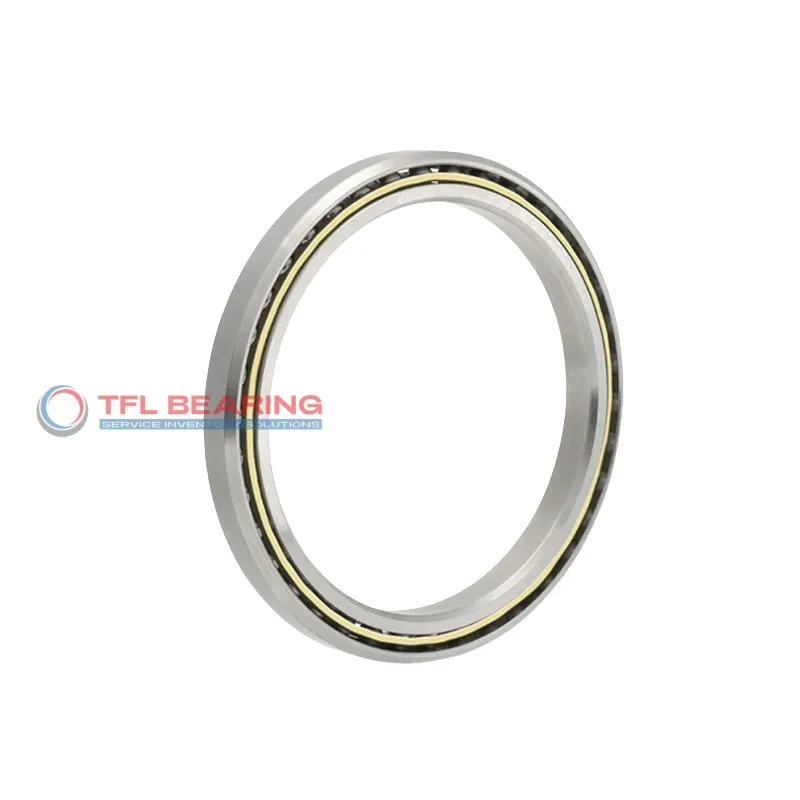

Constant Section (CS) Bearings K16008XP0

Constant Section (CS) Bearings K16008XP0

The K16008XP0 is a slim metric bearing with dimensions of 160mm bore and 176mm outer diameter, featuring a compact 8mm width. Made from chrome steel with a brass cage, it offers reliable performance in four-point contact applications.

This bearing handles dynamic radial loads up to 1936 lbf and static thrust loads up to 9184 lbf, making it suitable for moderate load scenarios. Its open design allows for easy lubrication and maintenance.

With a temperature range of -30°C to 110°C, it works well in various environments. The ABEC-1 tolerance ensures decent precision for general industrial use.

Ideal for applications requiring thin-section bearings, such as robotics or precision machinery. Weighing just 0.2kg, it’s lightweight yet durable. Compliant with RoHS standards for safe operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K16008XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 176 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 8 mm
  • Width Tolerance +.000 –.254mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 8 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 165.9 mm
  • Internal Diameter On Outer Ring (Small Side Face) 170.1 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1936 lbf
  • Static Radial Load 3673 lbf
  • Static Thrust Load 9184 lbf
  • Static Moment 309 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 543 lbf
  • Dynamic Thrust Load 3055 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.2 Kg
  • price（$） 128.21
Constant Section (CS) Bearings K16008XP0 dimension drawing
Download DWG Download PDF

Features

How Does K16008XP0 Bearing Handle Heavy Loads?

K16008XP0 Bearing is built with chrome steel rings and balls, offering strong resistance to heavy loads.
Its dynamic radial load capacity reaches 1936 lbf, ensuring reliable performance in demanding applications.

The brass cage maintains ball alignment, reducing wear and extending service life.
With a static thrust load of 9184 lbf, it provides stability under high-pressure conditions.

K16008XP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its thin-section design makes it suitable for applications where space is limited.

Application

Key Fields for K16008XP0 Bearing
K16008XP0 Bearing is commonly used in robotics, particularly in robotic arms where its slim design helps save space without compromising load capacity. The four-point contact design ensures smooth rotation even under combined loads.

In automation systems, K16008XP0 Bearing fits well in rotary tables and indexing devices, offering precise movement for manufacturing processes. Its brass cage provides durability in high-speed applications.

For medical imaging equipment, K16008XP0 Bearing’s chrome steel construction delivers reliable performance in devices requiring quiet operation. The ABEC-1 tolerance makes it suitable for applications needing consistent accuracy.

In packaging machinery, K16008XP0 Bearing handles radial and thrust loads efficiently, ensuring smooth conveyor operation. The metric sizing allows easy integration with European-designed systems.
