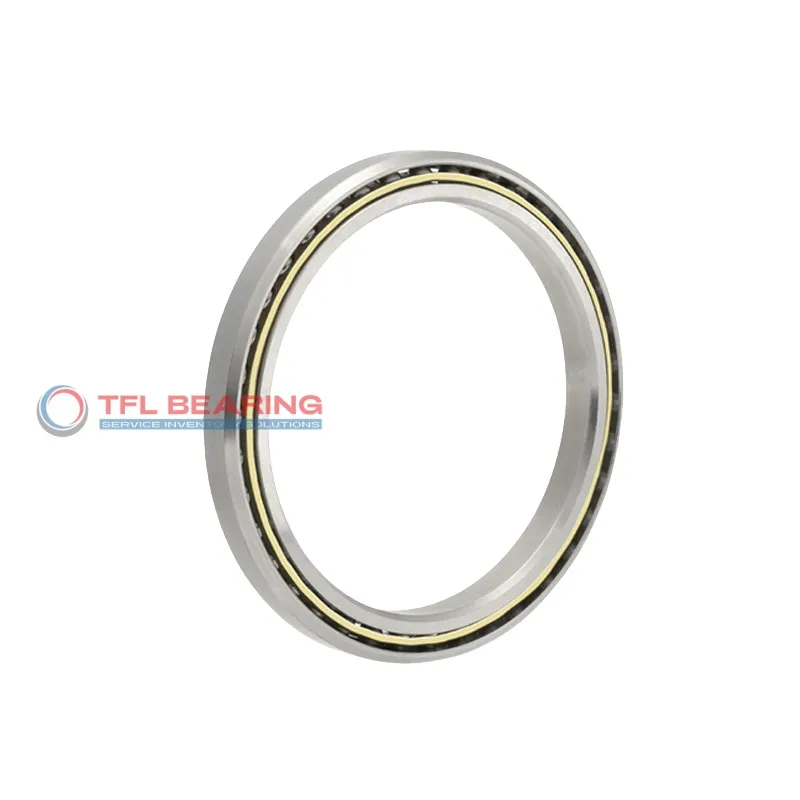

Constant Section (CS) Bearings K15008AR0

Constant Section (CS) Bearings K15008AR0

The K15008AR0 is a slim, angular contact ball bearing measuring 150mm in bore and 166mm in outer diameter, with a compact 8mm width. Made from chrome steel, it handles both radial and thrust loads effectively.

Its single-row design with a 30° contact angle ensures smooth operation under angular loads. The brass cage adds durability, while the open seal allows for easy lubrication.

This bearing is suitable for applications requiring precise movement, such as robotics or medical equipment. It operates well in temperatures from -30°C to 110°C.

Weighing just 0.2kg, it’s lightweight yet robust. Compliant with RoHS standards, it’s a reliable choice for various industrial uses. Interchangeable with KAYDON bearings, it offers flexibility in replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K15008AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 166 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 8 mm
  • Width Tolerance +.000 –.254mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 8 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 155.9 mm
  • Internal Diameter On Outer Ring (Small Side Face) 160.1 mm
  • Internal Diameter On Outer Ring (Large Side Face) 162.2 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1470 lbf
  • Static Radial Load 4001 lbf
  • Static Thrust Load 3560 lbf
  • Static Moment 11550 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 2204 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.2 Kg
  • price（$） 137.93
Constant Section (CS) Bearings K15008AR0 dimension drawing
Download DWG Download PDF

Features

Performance Features of K15008AR0 Bearing

K15008AR0 Bearing is designed for angular contact applications, featuring a 30° contact angle for efficient load distribution.
Its chrome steel construction ensures durability, while the brass cage maintains ball alignment for smooth operation.

With a dynamic radial load capacity of 1470 lbf, K15008AR0 Bearing handles demanding conditions reliably.
The thin-section design at 8 mm width makes it ideal for compact spaces without sacrificing performance.

K15008AR0 Bearing operates smoothly within a temperature range of -30°C to 110°C, suitable for various environments.
Its ABEC-1 tolerance class ensures consistent precision in applications requiring reliable angular contact performance.

Application

Key Fields for K15008AR0 Bearing
K15008AR0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its slim design saves space without compromising performance. The angular contact design handles both radial and axial loads efficiently.

In automotive applications, K15008AR0 Bearing fits well in steering systems and electric motors, thanks to its 30° contact angle for smooth operation. The brass cage adds durability, making it reliable for long-term use.

For medical imaging devices, K15008AR0 Bearing’s chrome steel construction ensures stability and precision. Its ABEC-1 tolerance class makes it suitable for equipment requiring consistent, low-friction movement.

In consumer electronics like high-end printers, K15008AR0 Bearing’s thin section design helps maintain compact layouts. The open seal type allows for easy lubrication, extending its service life in frequent-use scenarios.
