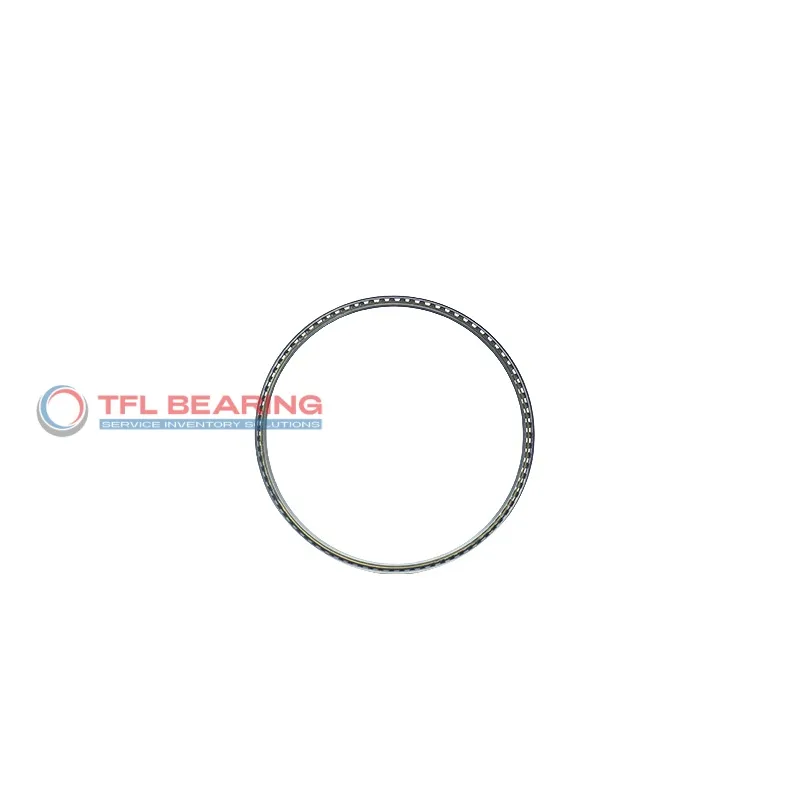

Constant Section (CS) Bearings K07013CP0

Constant Section (CS) Bearings K07013CP0

The K07013CP0 is a slim, single-row ball bearing with a 70mm bore and 96mm outer diameter, crafted from durable chrome steel. Its compact 13mm width makes it ideal for space-sensitive applications.

Designed for radial loads up to 1806 lbf, it handles moderate speeds smoothly. The brass cage ensures quiet operation and long service life, even in temperatures from -30°C to 110°C.

Its open design allows easy lubrication, while the ABEC-1 tolerance offers reliable precision. This model is interchangeable with KAYDON bearings for convenient replacements.

Weighing just 0.24kg, it’s perfect for robotics or medical equipment where slim profiles are needed. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K07013CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 96 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 13 mm
  • Width Tolerance +.000 –.127mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 13 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 79.7 mm
  • Internal Diameter On Outer Ring (Small Side Face) 86.3 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1806 lbf
  • Static Radial Load 2707 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 3029 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.24 Kg
  • price（$） 51.59
Constant Section (CS) Bearings K07013CP0 dimension drawing
Download DWG Download PDF

Features

How Does K07013CP0 Bearing Reduce Friction?

K07013CP0 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its brass cage design helps maintain proper ball alignment, further reducing wear and enhancing efficiency.
With a dynamic radial load capacity of 1806 lbf, it handles moderate loads reliably.
The ABEC-1 tolerance class ensures consistent performance in precision applications.

Application

Key Fields for K07013CP0 Bearing
K07013CP0 Bearing is commonly used in industrial automation, especially in robotic arms and precision machinery where its thin section design saves space without compromising performance. The open seal type allows for easy lubrication, extending its service life.

In medical imaging devices, K07013CP0 Bearing provides smooth rotation due to its chrome steel construction and brass cage, ensuring quiet operation. Its ABEC-1 tolerance makes it suitable for applications requiring moderate precision.

For consumer electronics like printers, K07013CP0 Bearing’s compact size and radial load capacity help maintain consistent performance. The metric sizing ensures compatibility with a variety of European and Asian-made devices.

Automotive applications such as small electric motors benefit from K07013CP0 Bearing’s durability and lightweight design. The brass cage reduces friction, making it ideal for high-efficiency systems.

In 3D printers, K07013CP0 Bearing’s precise radial load handling ensures accurate movement of print heads. The chrome steel rings provide long-lasting wear resistance, even with frequent use.
