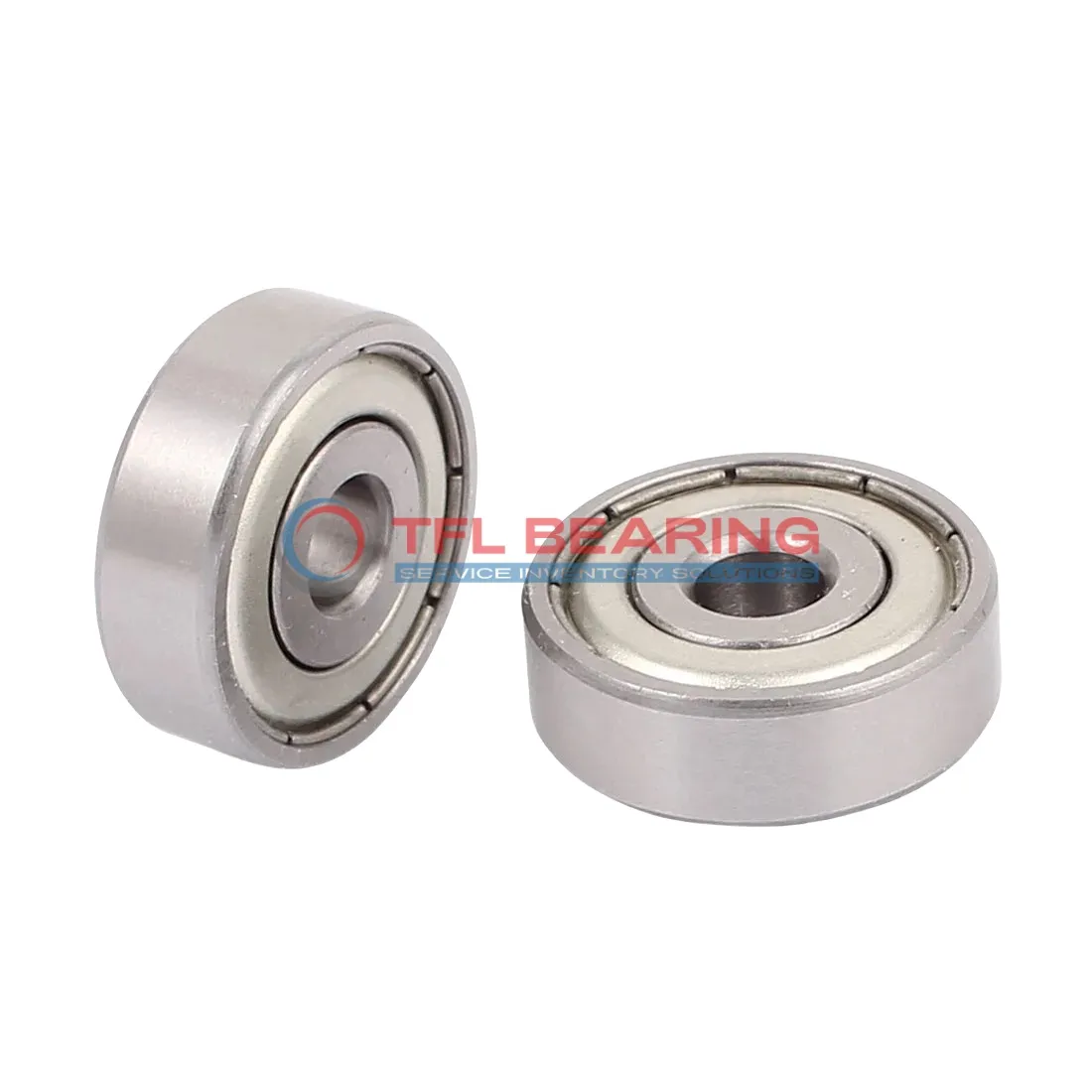

Single Row Deep Groove Ball Bearings 6222-ZJEM

The 6222-ZJEM is a single-row deep groove ball bearing with a 110mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 33946 lbf and operates smoothly at speeds up to 4300 RPM.

Its shielded design keeps dirt out while maintaining easy access for lubrication. The chrome steel cage adds durability, making it reliable for long-term use. This bearing works well in temperatures ranging from -30°C to 120°C.

Interchangeable with SKF bearings, it’s a practical choice for replacements or new installations. Suitable for heavy-duty applications like industrial motors or conveyor systems where radial loads are common.

Weighing 4450g, it’s built to handle tough conditions while complying with RoHS and REACH standards. A solid option for engineers and maintenance teams needing dependable performance.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6222-ZJEM
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Shielded
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 110 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 200 mm
Outer Dia Tolerance -0.020mm to 0
Width 38 mm
Width Tolerance -0.2mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 33946 lbf
Static Radial Load 26527 lbf
Max Speed 4300 rpm
Weight 4450 g
price（$） 64.692

Single Row Deep Groove Ball Bearings 6222-ZJEM dimension drawing

Download DWG Download PDF

Features

Performance Features of 6222-ZJEM Bearing

6222-ZJEM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 33946 lbf, ensuring steady performance in various applications.

The shielded design of 6222-ZJEM Bearing protects against contaminants, enhancing its durability.
With a maximum speed of 4,300 rpm, it balances efficiency and reliability.

6222-ZJEM Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its chrome steel cage ensures proper ball alignment, reducing wear over time.

Application

Industrial Uses of 6222-ZJEM Bearing
The 6222-ZJEM Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 6222-ZJEM Bearing fits well in wheel hubs and transmission systems, providing reliable radial load support. The ABEC 1 tolerance makes it suitable for standard precision requirements.

For automation equipment, 6222-ZJEM Bearing offers smooth operation in robotic arms and conveyor belts. Its metric sizing ensures compatibility with a variety of European and Asian machinery designs.

In household appliances like washing machines, 6222-ZJEM Bearing’s balanced performance reduces noise and vibration. The wide temperature range allows it to handle both hot and cold conditions effectively.
