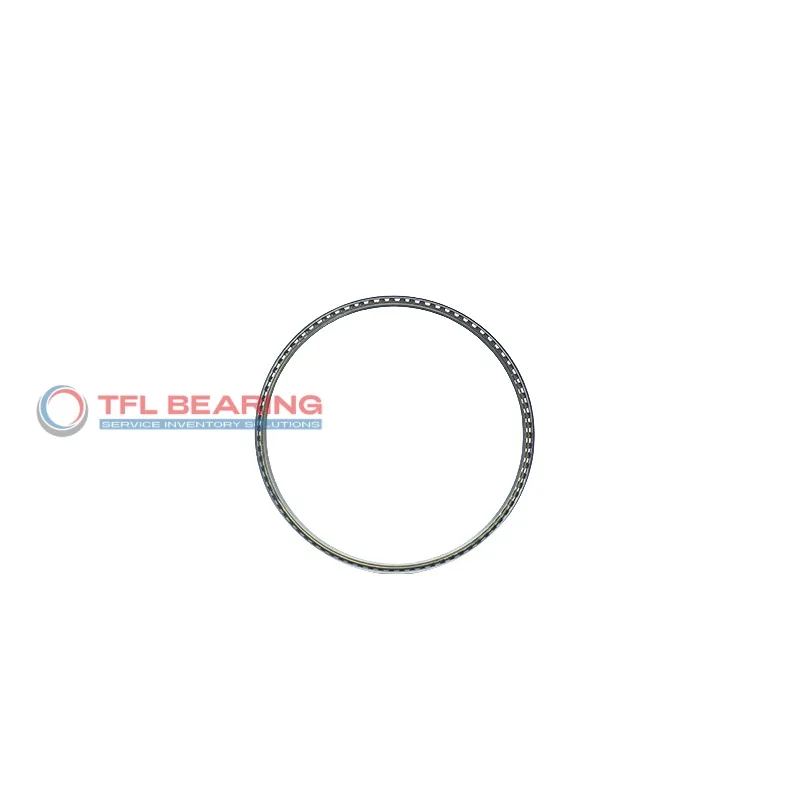

Constant Section (CS) Bearings K06008AR0

Constant Section (CS) Bearings K06008AR0

The K06008AR0 is a slim metric ball bearing with a 60mm bore and 76mm outer diameter, measuring just 8mm in width. Made from chrome steel, it’s designed for angular contact loads and fits into tight spaces without sacrificing strength.

It handles radial loads up to 899 lbf and static thrust loads of 2039 lbf, making it suitable for precise applications. The brass cage ensures smooth operation, even at varying temperatures from -30°C to 110°C.

With a 30° contact angle and ABEC-1 tolerance, this bearing offers reliable performance in compact setups. Its open design allows for easy lubrication and maintenance.

Ideal for robotics or small machinery where space is limited but precision is key. Weighing only 0.09kg, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K06008AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 76 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 8 mm
  • Width Tolerance +.000 –.127mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 8 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 65.9 mm
  • Internal Diameter On Outer Ring (Small Side Face) 70.1 mm
  • Internal Diameter On Outer Ring (Large Side Face) 72.2 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 899 lbf
  • Static Radial Load 1735 lbf
  • Static Thrust Load 2039 lbf
  • Static Moment 5011 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1613 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.09 Kg
  • price（$） 62.41
Constant Section (CS) Bearings K06008AR0 dimension drawing
Download DWG Download PDF

Features

How Does K06008AR0 Bearing Reduce Friction?

K06008AR0 Bearing features a 30° contact angle, optimising load distribution and minimising friction during operation.
Its chrome steel construction ensures smooth movement, even under dynamic radial loads up to 899 lbf.
The brass cage maintains ball alignment, reducing wear and enhancing efficiency.
With ABEC-1 tolerance, it delivers consistent performance in precision applications.

Application

Key Fields for K06008AR0 Bearing
K06008AR0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its slim design saves space without compromising performance. The angular contact design handles combined loads efficiently, making it versatile for various setups.

In automotive applications, K06008AR0 Bearing fits well in steering systems and electric motors, offering smooth rotation under moderate loads. Its brass cage ensures durability even in high-vibration environments.

For medical imaging devices, K06008AR0 Bearing’s chrome steel construction provides reliable performance in sensitive equipment. The ABEC-1 tolerance ensures consistent operation, which is crucial for diagnostic accuracy.

In consumer electronics like printers, K06008AR0 Bearing’s compact size and low friction contribute to quieter operation. The open seal design allows for easy lubrication, extending its service life in everyday use.

K06008AR0 Bearing also suits light-duty aerospace applications, such as satellite mechanisms, where precision and weight savings are key. Its temperature range handles both cold and moderate heat conditions effectively.
