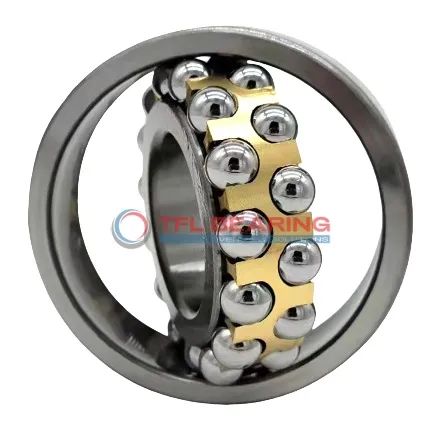

Self Aligning Ball Bearings 2217-M-C3

Brand: TFL Bearing Interchangeable: SKF 2217-M-C3 85 mm × 150 mm × 36 mm Metric Open
Part number: 2217-M-C3
Self Aligning Ball Bearings 2217-M-C3
In Stock
US$135.24 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia85 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia150 mm
Outer Dia Tolerance-0.018mm to 0
Width36 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring106 mm
Internal Diameter On Outer Ring130.7 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load13,162 lbf
Static Radial Load5,310 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight2.5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2217-M-C3 is a self-aligning ball bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13162 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design and brass cage ensure durability and reduce friction, while the open seal allows for easy lubrication. The bearing works reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 2.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Why Choose 2217-M-C3 Bearing for Precision Tasks?

2217-M-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 13162 lbf makes it suitable for heavy-duty applications.

The brass cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a maximum speed of 5,600 rpm, it delivers reliable performance in various conditions.

2217-M-C3 Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its C3 radial clearance allows for thermal expansion, ensuring consistent performance.

The open seal design simplifies maintenance while the cylindrical bore ensures easy installation.
This bearing is ideal for applications requiring precision and durability.

Application

Industrial Uses of 2217-M-C3 Bearing
The 2217-M-C3 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. Its double-row design provides excellent radial load capacity, making it suitable for demanding environments.

In automotive applications, 2217-M-C3 Bearing can be found in wheel hubs and transmissions, where its durability and high load capacity are essential. The brass cage ensures smooth operation even under high-speed conditions.

For automation equipment, 2217-M-C3 Bearing supports robotic arms and assembly lines, offering reliable performance with minimal maintenance. The C3 radial clearance allows for thermal expansion, making it ideal for variable temperature conditions.

Where Is 2217-M-C3 Bearing Used?
You’ll often see 2217-M-C3 Bearing in agricultural machinery, like tractors and harvesters, where its ability to handle misalignment and heavy loads is crucial. The chrome steel construction ensures long-lasting performance in tough conditions.

In construction equipment, 2217-M-C3 Bearing is used in cranes and excavators, providing stability under heavy radial loads. The lubricated design reduces friction, extending the bearing’s lifespan even in dusty environments.

Built for Heavy-Duty Use: 2217-M-C3 Bearing
The 2217-M-C3 Bearing is a reliable choice for mining equipment, where its robust design handles extreme loads and harsh conditions. The brass cage adds durability, reducing wear over time.

In food processing machinery, 2217-M-C3 Bearing’s open design allows for easy cleaning, meeting hygiene standards. Its self-aligning capability ensures smooth operation even with slight shaft misalignments.
