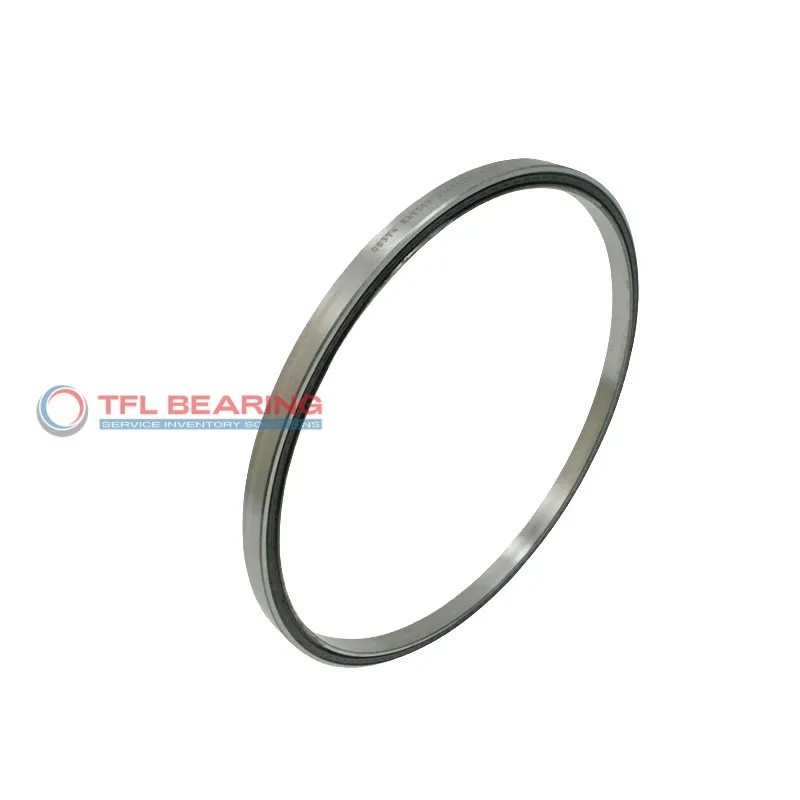

Constant Section (CS) Bearings JG220XP0

Constant Section (CS) Bearings JG220XP0

The JG220XP0 is a sealed, thin-section ball bearing with a 22″ bore and 24″ outer diameter, designed for four-point contact. Made from chrome steel with a brass cage, it handles radial loads up to 18152 lbf and thrust loads up to 31130 lbf.

Its compact 1″ width makes it ideal for space-constrained applications, while the sealed design keeps lubrication in and contaminants out. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, offering a reliable replacement option. Suitable for machinery requiring high load capacity in a slim profile, such as robotics or precision equipment.

Weighing 16.8 lbs, it meets ABEC-1 tolerance standards and is RoHS compliant for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JG220XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 22"
  • Outer Dia 24"
  • Width 1"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 22.554"
  • Internal Diameter On Outer Ring (Small Side Face) 23.602"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 18152 lbf
  • Static Radial Load 37750 lbf
  • Static Thrust Load 94390 lbf
  • Static Moment 434200 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 156 lbf
  • Dynamic Thrust Load 31130 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 16.8 lbs
  • price（$） 2283.2

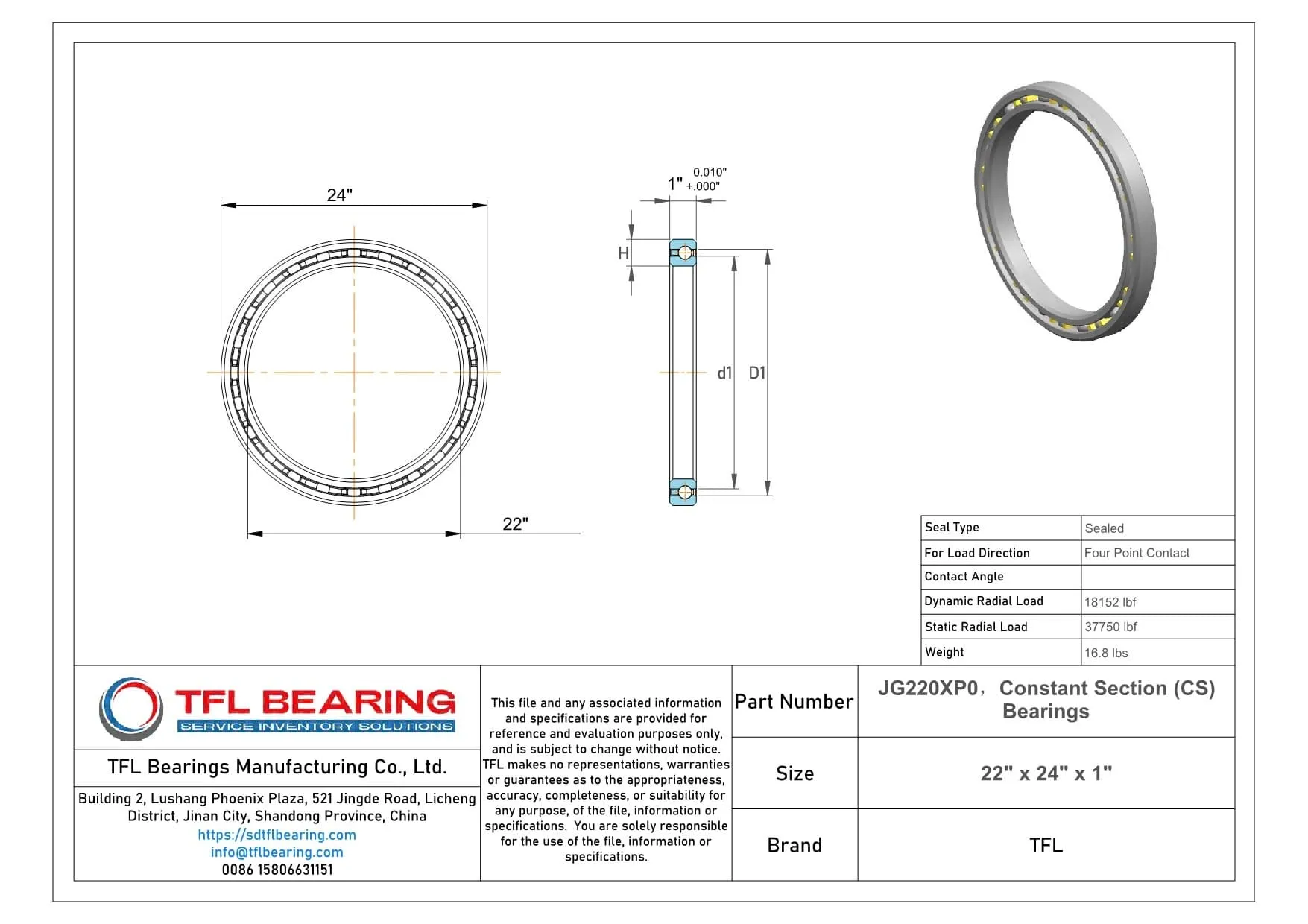

Constant Section (CS) Bearings JG220XP0 dimension drawing
Download DWG Download PDF

Features

Why Choose JG220XP0 Bearing for Precision Tasks?

JG220XP0 Bearing features a four-point contact design, ensuring smooth operation under radial and thrust loads.
Its chrome steel rings and balls provide durability, while the brass cage maintains alignment for consistent performance.

With a dynamic radial load capacity of 18152 lbf, JG220XP0 Bearing handles demanding applications with ease.
The sealed construction protects against contaminants, extending its service life in harsh environments.

JG220XP0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class ensures reliable precision for various industrial uses.

Application

Where Is JG220XP0 Bearing Used?
JG220XP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin-section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long service life.

In aerospace applications, JG220XP0 Bearing handles moment loads in control systems and actuators, thanks to its four-point contact design. The chrome steel construction provides durability under demanding conditions.

For medical imaging devices, JG220XP0 Bearing offers smooth rotation and low friction, essential for accurate positioning. Its brass cage enhances stability, making it suitable for high-precision equipment.

In packaging machinery, JG220XP0 Bearing supports high-speed operations with reliable performance. The inch sizing ensures compatibility with North American industrial standards.
