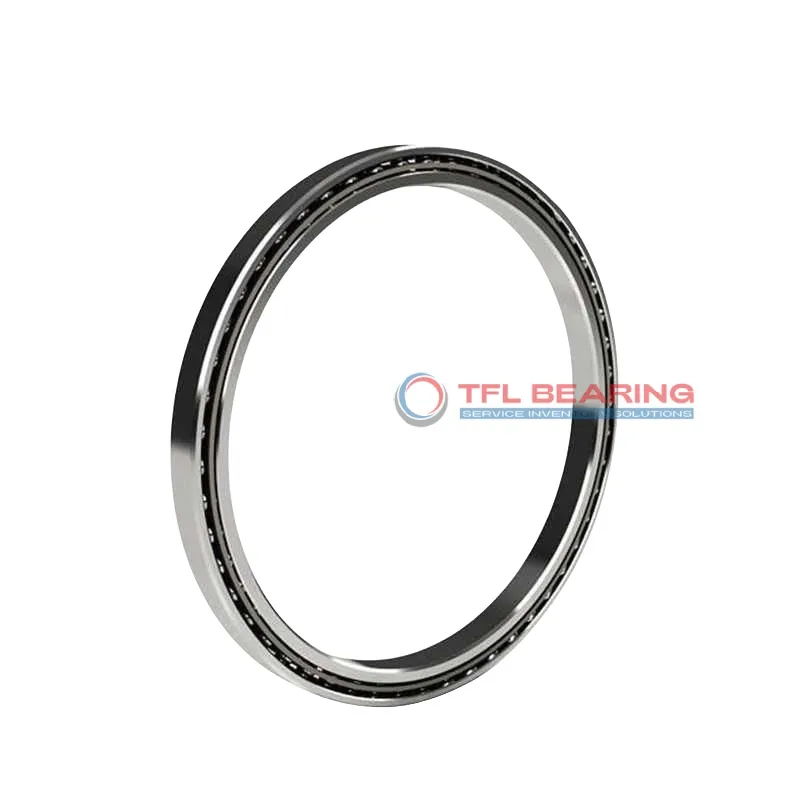

Constant Section (CS) Bearings JG200CP0

Constant Section (CS) Bearings JG200CP0

The JG200CP0 is a sealed, thin-section ball bearing measuring 20″ by 22″ with a 1″ width, designed for radial loads up to 13044 lbf. Made from chrome steel with a brass cage, it offers durability and smooth operation.

Its sealed construction keeps contaminants out, making it low-maintenance and ideal for dusty environments. The bearing is lubricated for long-lasting performance and works in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, providing a reliable replacement option. It suits applications like robotics or medical equipment where space is limited but precision is key.

Weighing 15.8 lbs, it’s sturdy yet compact for its size. Compliant with RoHS standards, it’s a safe choice for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JG200CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 20"
  • Outer Dia 22"
  • Width 1"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 20.554"
  • Internal Diameter On Outer Ring (Small Side Face) 21.602"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 13044 lbf
  • Static Radial Load 34470 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 16907 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 15.8 lbs
  • price（$） 1574.93
Constant Section (CS) Bearings JG200CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of JG200CP0 Bearing

JG200CP0 Bearing is crafted with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 13044 lbf, making it suitable for demanding applications.

The brass cage ensures smooth operation by keeping the balls aligned and reducing friction.
With a sealed design, JG200CP0 Bearing stays protected from dust and contaminants.

JG200CP0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class ensures reliable performance for precision tasks.

Application

Industrial Uses of JG200CP0 Bearing
JG200CP0 Bearing is commonly used in industrial machinery where space is limited but radial load support is essential, such as robotic arms and conveyor systems. Its thin-section design makes it ideal for applications requiring compact yet robust solutions.

Where Is JG200CP0 Bearing Used?
In automation systems, JG200CP0 Bearing provides smooth rotation for components like rotary tables and indexing devices. The sealed design helps keep contaminants out, ensuring longer service life in dusty environments.

Built for Heavy-Duty Use: JG200CP0 Bearing
JG200CP0 Bearing excels in applications like packaging machines, where consistent performance under radial loads is crucial. The brass cage adds durability, making it suitable for high-speed operations.

Automotive vs Aerospace: Applications of JG200CP0 Bearing
In automotive systems, JG200CP0 Bearing is often found in steering mechanisms, offering reliable performance. For aerospace, its lightweight construction and precision make it a good fit for control systems.

Perfect Fit for Automation: JG200CP0 Bearing
JG200CP0 Bearing is a popular choice in 3D printers and CNC machines, where its thin profile and sealed design ensure smooth operation. The chrome steel construction provides excellent wear resistance for long-term use.
