Constant Section (CS) Bearings JB050XP0

Constant Section (CS) Bearings JB050XP0

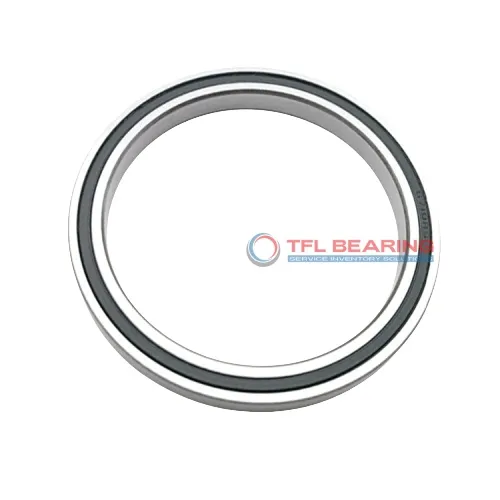

The JB050XP0 is a slim, sealed ball bearing with a 5″ bore and 5.625″ outer diameter, designed for four-point contact loads. Made from chrome steel with a brass cage, it offers a compact width of just 0.3125″.

It handles radial loads up to 1236 lbf and thrust loads up to 1980 lbf, making it suitable for moderate stress applications. The sealed design keeps lubrication in and contaminants out, ensuring smooth operation.

This bearing is interchangeable with KAYDON models, providing a reliable alternative. Ideal for use in robotics or precision machinery where space is limited.

With a temperature range of -30°C to 110°C and RoHS compliance, it’s a versatile choice for various industrial settings. Weighing only 0.37 lbs, it’s lightweight yet durable.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JB050XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 5.625"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.199"
  • Internal Diameter On Outer Ring (Small Side Face) 5.425"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1236 lbf
  • Static Radial Load 2150 lbf
  • Static Thrust Load 5380 lbf
  • Static Moment 5720 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 2 lbf
  • Dynamic Thrust Load 1980 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.37 lbs
  • price（$） 160
Constant Section (CS) Bearings JB050XP0 dimension drawing
Download DWG Download PDF

Features

How Does JB050XP0 Bearing Handle Heavy Loads?

JB050XP0 Bearing features chrome steel rings and balls, providing strong resistance to heavy loads.
Its static thrust load capacity reaches 5380 lbf, ensuring reliable performance in demanding applications.
The brass cage maintains ball alignment, reducing wear and extending service life.
With a width of just 0.3125″, it offers a compact yet robust solution for space-constrained applications.

Application

Industrial Uses of JB050XP0 Bearing
JB050XP0 Bearing works well in robotics, especially for joints needing slim design and smooth rotation. Its sealed construction keeps out dust, making it ideal for automated assembly lines.

Where Is JB050XP0 Bearing Used?
You’ll often spot JB050XP0 Bearing in medical imaging devices, where precision and reliability matter. The brass cage helps reduce friction, ensuring quiet operation during scans.

Built for Heavy-Duty Use: JB050XP0 Bearing
JB050XP0 Bearing handles moment loads in industrial turntables, thanks to its four-point contact design. The chrome steel rings provide durability even in demanding environments.

Automotive vs Aerospace: Applications of JB050XP0 Bearing
In automotive steering systems, JB050XP0 Bearing offers compact support for smooth turns. For aerospace, its lightweight build suits control mechanisms without adding bulk.

Practical Applications of JB050XP0 Bearing
JB050XP0 Bearing fits nicely into packaging machines, where thin sections save space. The ABEC-1 tolerance ensures consistent performance for high-speed conveyor belts.
