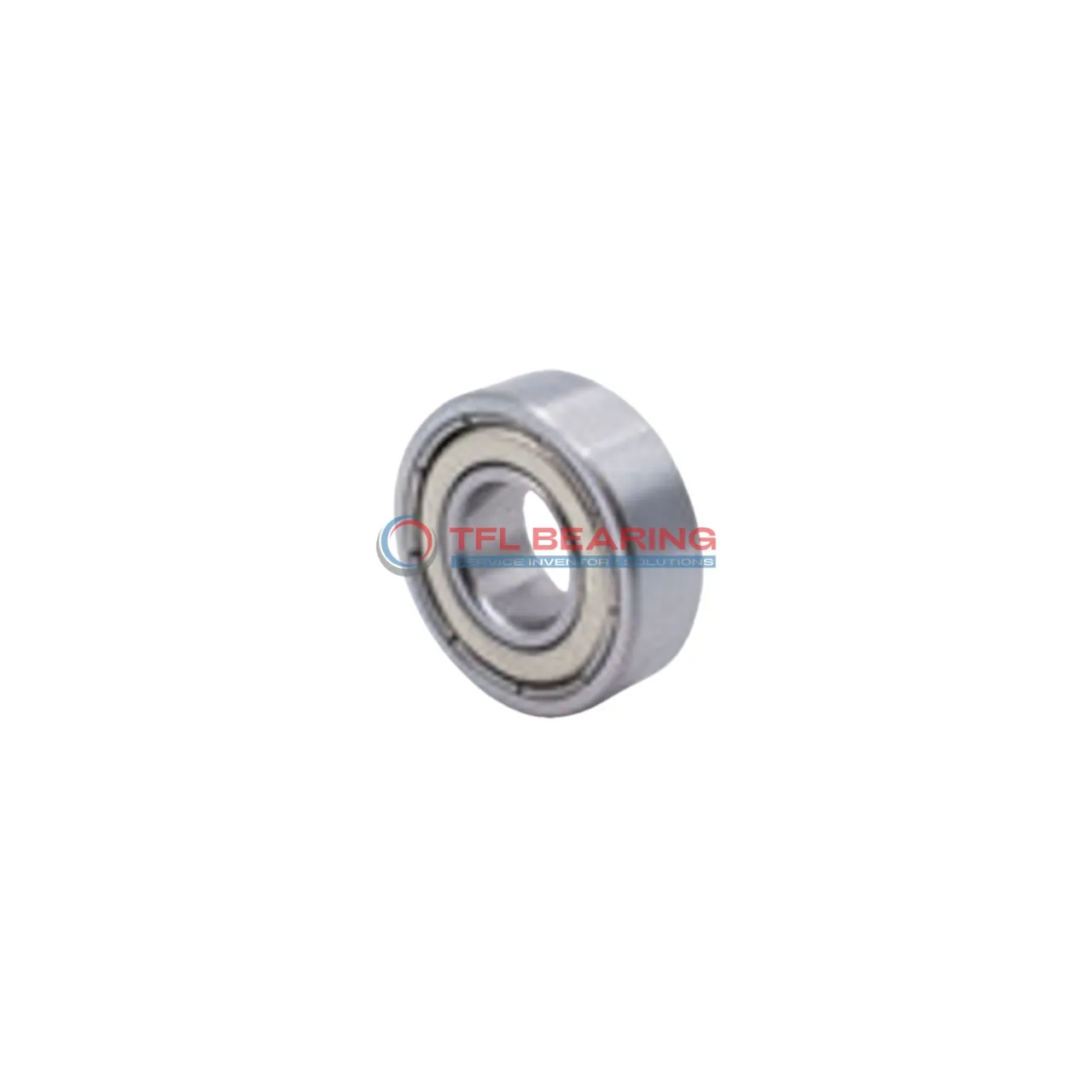

Metric Size Standard Miniature Ball Bearings 601xzz

Metric Size Standard Miniature Ball Bearings 601xzz

The 601xzz is a miniature ball bearing with a compact size of 1.5mm by 6mm by 3mm, crafted from durable chrome steel. It handles radial loads up to 63 lbf and spins smoothly at speeds up to 75,000 RPM.

Its shielded design keeps dirt out while maintaining easy lubrication access, and the stainless steel cage ensures reliable performance. The bearing operates well in temperatures from -30°C to 110°C.

With a lightweight design at just 0.4g, it’s ideal for small, precision applications like miniature motors or medical devices. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

The ABEC1 tolerance and MC3 radial clearance make it a practical option for general-purpose use where precision and durability are needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 601xzz
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 1.5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 6 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 6
  • Ball Dia 1.2000 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Shielded
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 63 lbf
  • Static Radial Load 18 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 75000 rpm
  • Weight 0.4 g
  • Price（$） 11.25
Metric Size Standard Miniature Ball Bearings 601xzz dimension drawing
Download DWG Download PDF

Features

How Does 601xzz Bearing Reduce Friction?

601xzz Bearing features a shielded design with chrome steel rings and balls, ensuring smooth radial movement.
Its precision construction with six balls minimises friction, enhancing operational efficiency.

The stainless steel cage maintains ball alignment, reducing wear and extending the bearing’s lifespan.
With a maximum speed of 75,000 rpm, it offers reliable performance in compact applications.

601xzz Bearing operates efficiently within a temperature range of -30° to 110°C, suitable for various environments.
Its dynamic radial load capacity of 63 lbf makes it ideal for lightweight, high-speed uses.

Application

Where Is 601xzz Bearing Used?
You’ll often spot 601xzz Bearing in small electronics like cooling fans or miniature motors, where its compact 1.5mm bore handles radial loads effortlessly. The shielded design keeps dust out while maintaining smooth rotation.

In medical devices, 601xzz Bearing proves handy for precision instruments like dental tools or lab equipment. Its chrome steel construction ensures reliable performance even with frequent sterilisation cycles.

For hobbyist projects like model trains or RC cars, 601xzz Bearing’s lightweight design (just 0.4g) won’t add unnecessary bulk. The ABEC1 tolerance provides decent precision without breaking the bank.

Automation engineers appreciate 601xzz Bearing in miniature conveyor systems or sensor mechanisms. The stainless steel cage withstands continuous operation without compromising the 75,000 rpm speed rating.

Around the house, 601xzz Bearing might appear in hair trimmers or small appliances. Its 6mm outer diameter fits neatly into tight spaces while the MC3 clearance accommodates thermal expansion.
