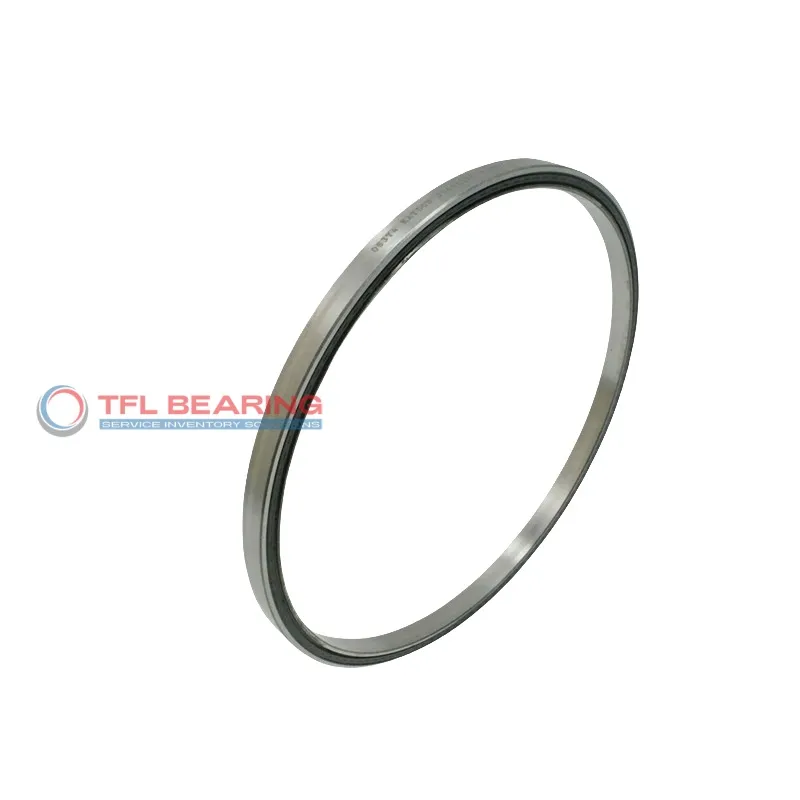

Constant Section (CS) Bearings JA065CP0

Constant Section (CS) Bearings JA065CP0

The JA065CP0 is a slim, sealed ball bearing with a 6.5″ bore and 7″ outer diameter, made from sturdy chrome steel. It handles radial loads up to 754 lbf and is pre-lubricated for smooth operation.

Its compact 0.25″ width and brass cage make it ideal for tight spaces where thin-section bearings are needed. The sealed design keeps out contaminants, extending its lifespan.

This bearing is interchangeable with KAYDON models, offering a reliable alternative. Suitable for applications like robotics or medical equipment where precision and space-saving are key.

With a temperature range of -30°C to 110°C and RoHS compliance, it’s both durable and safe for various environments. Weighing just 0.3 lbs, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JA065CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 6.5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 7"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 6.648"
  • Internal Diameter On Outer Ring (Small Side Face) 6.856"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 754 lbf
  • Static Radial Load 2050 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1530 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.3 lbs
  • price（$） 186.56
Constant Section (CS) Bearings JA065CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of JA065CP0 Bearing

JA065CP0 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 754 lbf, ensuring steady performance in various applications.
The brass cage maintains ball alignment, reducing friction and enhancing durability.
With a temperature range of -30°C to 110°C, it performs reliably in diverse environments.

Application

Industrial Uses of JA065CP0 Bearing
JA065CP0 Bearing is commonly used in industrial machinery where space is limited, such as robotic arms and packaging equipment. Its thin-section design ensures it fits neatly into compact assemblies without compromising performance.

Where Is JA065CP0 Bearing Used?
You’ll often find JA065CP0 Bearing in automation systems, particularly in conveyor belts and precision positioning devices. Its sealed design helps keep out dust and debris, making it reliable in demanding environments.

Built for Heavy-Duty Use: JA065CP0 Bearing
JA065CP0 Bearing handles radial loads effortlessly, making it ideal for applications like rotary tables and medical imaging devices. The brass cage adds durability, ensuring smooth operation over time.

Automotive vs Aerospace: Applications of JA065CP0 Bearing
In automotive systems, JA065CP0 Bearing is used in steering columns and small gearboxes due to its compact size. For aerospace, it’s valued in control mechanisms where precision and reliability are key.

Perfect Fit for Automation: JA065CP0 Bearing
JA065CP0 Bearing works well in 3D printers and CNC machines, where its thin profile and sealed construction reduce maintenance needs. The chrome steel rings provide long-lasting performance in high-use scenarios.
