Constant Section (CS) Bearings J15008XP0

Constant Section (CS) Bearings J15008XP0

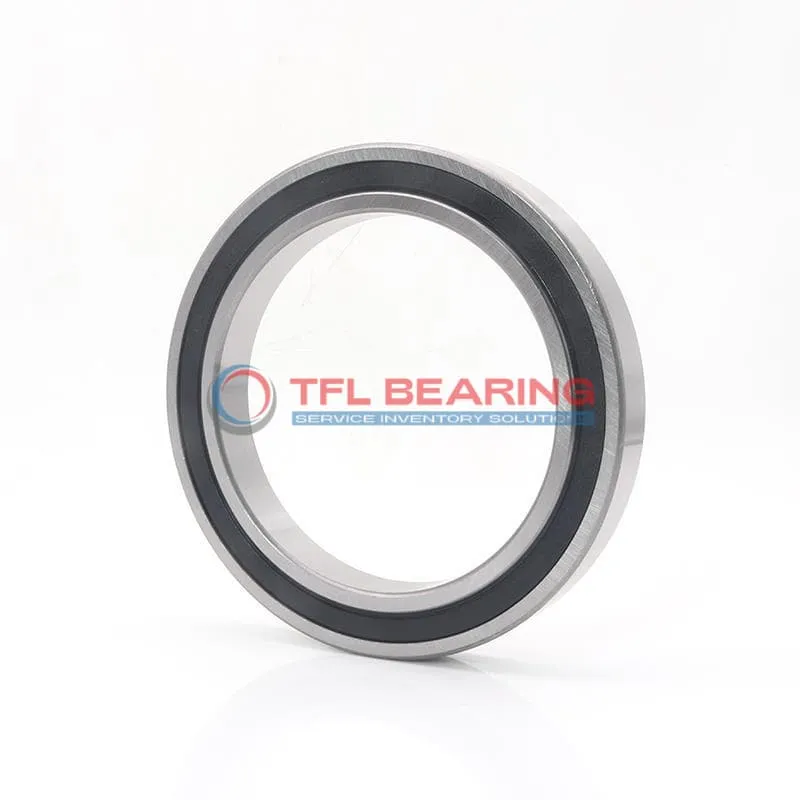

The J15008XP0 is a slim, sealed ball bearing with a 150mm bore and 166mm outer diameter, crafted from durable chrome steel. Its compact 8mm width makes it ideal for space-constrained applications while handling radial loads up to 1865 lbf.

Designed for four-point contact, this bearing manages thrust loads up to 2930 lbf and moment loads of 492 ft-lbf. The brass cage ensures smooth operation, and it works in temperatures from -30°C to 110°C.

Its sealed construction keeps lubrication intact, reducing maintenance needs. The bearing is interchangeable with KAYDON models, offering flexibility for replacements.

Weighing just 0.2kg, it suits robotics or precision machinery where slim profiles and reliable performance are key. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number J15008XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 166 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 8 mm
  • Width Tolerance +.000 –.254mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 8 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 156.55 mm
  • Internal Diameter On Outer Ring (Small Side Face) 159.42 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1865 lbf
  • Static Radial Load 3450 lbf
  • Static Thrust Load 8628 lbf
  • Static Moment 273 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 492 lbf
  • Dynamic Thrust Load 2930 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.2 Kg
  • price（$） 138.79
Constant Section (CS) Bearings J15008XP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of J15008XP0 Bearing

J15008XP0 Bearing is crafted with chrome steel rings and balls, offering robust performance in four-point contact applications.
Its brass cage ensures smooth operation, while the sealed design protects against contaminants.

With a dynamic radial load capacity of 1865 lbf, J15008XP0 Bearing handles demanding tasks efficiently.
The static thrust load reaches 8628 lbf, making it suitable for high-load scenarios.

J15008XP0 Bearing operates within a temperature range of -30°C to 110°C, ensuring reliability in varied conditions.
Its compact 8 mm width and precise tolerances make it ideal for space-constrained applications.

The lubricated design of J15008XP0 Bearing reduces maintenance needs, saving time and effort.
Its ABEC-1 tolerance class ensures consistent performance for precision tasks.

Application

Essential Roles of J15008XP0 Bearing
J15008XP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin section design saves space without compromising performance. The sealed construction helps keep contaminants out, ensuring longer service life.

How Does J15008XP0 Bearing Improve Performance?
In medical imaging devices, J15008XP0 Bearing provides smooth rotation thanks to its brass cage and chrome steel construction. Its ABEC-1 tolerance ensures reliable operation in sensitive applications where precision matters.

Built for Heavy-Duty Use: J15008XP0 Bearing
J15008XP0 Bearing handles high static thrust loads, making it suitable for wind turbine yaw systems and other heavy machinery. The four-point contact design distributes loads evenly, reducing wear over time.

Automotive vs Aerospace: Applications of J15008XP0 Bearing
In automotive steering systems, J15008XP0 Bearing offers compact support with its 8mm width. For aerospace applications, its lightweight design and temperature resistance make it a practical choice for control mechanisms.

Perfect Fit for Automation: J15008XP0 Bearing
J15008XP0 Bearing works well in 3D printers and CNC machines, where its reali-slim profile fits into tight spaces. The lubricated design ensures quiet operation, ideal for environments where noise reduction is important.
