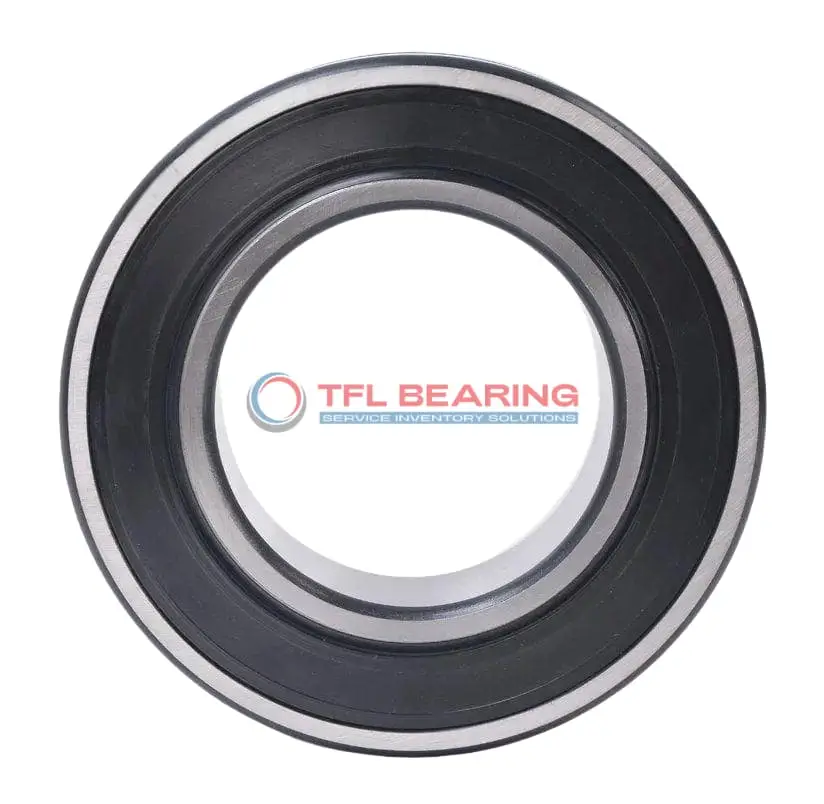

BS2-2316-2RS/VT143 Double Row Spherical Roller Bearing

BS2-2316-2RS/VT143 Double Row Spherical Roller Bearing

The BS2-2316-2RS/VT143 is a double-row spherical roller bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 116001 lbf and operates smoothly at speeds up to 2000 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing requires lubrication and performs well in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 7.2kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards for safety. The lubrication groove and holes make maintenance straightforward.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2316-2RS/VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 170 x 67 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 67 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 94.2 mm
  • Shoulder/Recess Dia Of Outer Ring 150 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 116001 lbf
  • Static Radial Load 119149 lbf
  • Max Speed 2000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 7.2 kg
  • Price （US$） 103.57

Features

Performance Features of BS2-2316-2RS/VT143 Bearing

BS2-2316-2RS/VT143 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 116001 lbf, ensuring reliable performance in heavy-duty applications.

The double-seal design of BS2-2316-2RS/VT143 Bearing protects against contaminants, extending its service life.
It operates smoothly in temperatures ranging from -30° to 200 °C, making it suitable for varied environments.

BS2-2316-2RS/VT143 Bearing’s steel cage maintains roller alignment, reducing wear and improving efficiency.
With a maximum speed of 2000 rpm, it balances durability and performance in demanding conditions.

Application

Industrial Uses of BS2-2316-2RS/VT143 Bearing
BS2-2316-2RS/VT143 Bearing is commonly used in heavy machinery like conveyor systems and crushers, where its double-row design handles combined loads efficiently. The double seals help keep contaminants out, extending the bearing’s life in harsh environments.

In automotive applications, BS2-2316-2RS/VT143 Bearing fits well in gearboxes and drivetrains, offering reliable performance under high radial and axial loads. Its chrome steel construction ensures durability even in demanding conditions.

For automation systems, BS2-2316-2RS/VT143 Bearing supports robotic arms and assembly lines, where precision and smooth operation are key. The spherical roller design accommodates slight misalignments, reducing wear over time.

In wind turbines, BS2-2316-2RS/VT143 Bearing’s high dynamic load capacity makes it ideal for rotor shafts, handling variable forces with ease. The wide temperature range also suits outdoor installations in diverse climates.
