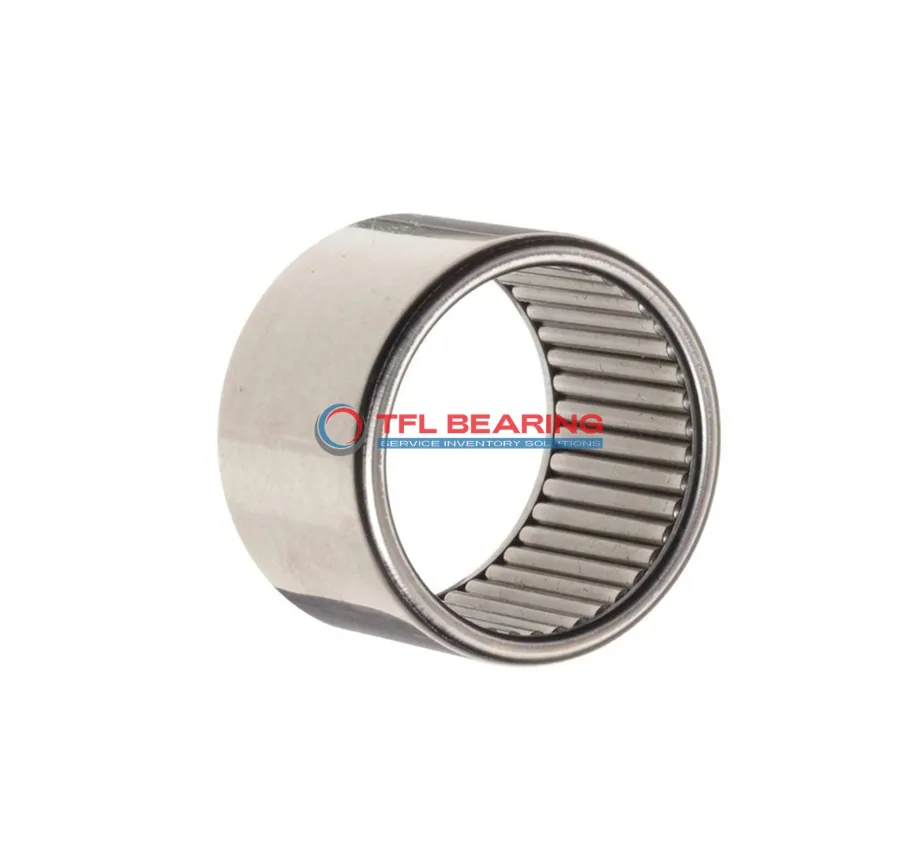

Drawn Cup Needle Roller Bearings SCE2212

Drawn Cup Needle Roller Bearings SCE2212

The SCE2212 is a drawn cup needle roller bearing with a 1.375″ bore and 1.625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 4833 lbf and operates smoothly at speeds up to 7500 RPM.
Its open-end design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing requires regular lubrication for optimal performance.
This model is interchangeable with INA bearings, offering a practical replacement option. Suitable for applications like automotive components or industrial machinery where radial loads are common.
It performs well in temperatures ranging from -20°C to 110°C and complies with RoHS standards. A dependable choice for high-load, high-speed environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE2212
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.375"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.625"
  • Outer Dia Tolerance Not Rated
  • Width 0.75"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4833 lbf
  • Static Radial Load 9554 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 7500 rpm
  • Weight 39 g
Drawn Cup Needle Roller Bearings SCE2212 dimension drawing
Download DWG Download PDF

Features

How Does SCE2212 Bearing Handle Radial Loads?
SCE2212 Bearing is built with steel rings and needles, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4833 lbf, making it suitable for demanding applications.
The press-fit shaft mount ensures secure installation, reducing the risk of slippage.
With a maximum speed of 7500 rpm, it delivers reliable performance in various conditions.
SCE2212 Bearing operates within a temperature range of -20 to 110°C, adapting to different environments.
Regular lubrication helps maintain smooth operation and extends its service life.

Application

Common Applications of SCE2212 Bearing
SCE2212 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its press-fit design ensures a secure mounting, reducing the risk of slippage during operation.
In automotive systems, SCE2212 Bearing fits well in gearboxes and steering mechanisms, offering reliable performance under heavy loads. The steel construction provides durability, making it suitable for long-term use in vehicles.
For automation equipment, SCE2212 Bearing works efficiently in robotic arms and assembly lines, where precision and smooth movement are key. The open-end design allows for easy lubrication, maintaining performance over time.
In household appliances, SCE2212 Bearing can be found in items like washing machines and power tools, where its compact size and strength are advantageous. The inch measurements make it compatible with many standard designs.
