TS (Single Row Tapered Roller Bearings) (Imperial) 5564-5520

TS (Single Row Tapered Roller Bearings) (Imperial) 5564-5520

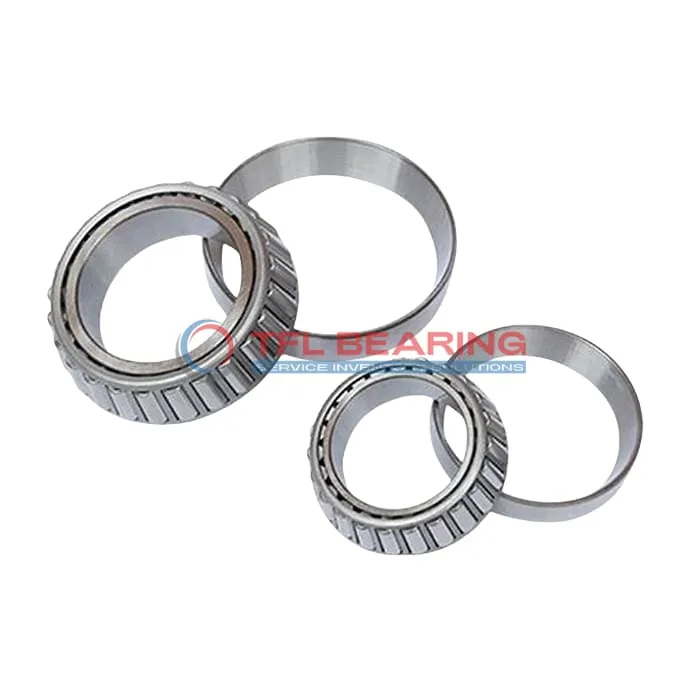

The 5564-5520 is a single-row tapered roller bearing with a 2.5″ bore and 4.7343″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 53200 lbf radially and 8460 lbf thrust, making it versatile for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where robust performance is needed.

Weighing 4.8 lb, it’s built to last with standard radial clearance options. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5564-5520
  • Brand TFL
  • Interchangeable Timken
  • Size 2.5" x 4.7343" x 1.7499"
  • Bore Dia 2.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.7343"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.723"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7499"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.2"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.57"
  • Cone Backface Backing Diameter 3.31"
  • Cup Frontface Backing Diameter 4.56"
  • Cup Backface Backing Diameter 4.13"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5564
  • Cup Part Number 5520
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 53200 lbf
  • Static Radial Load 73500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 13800 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8460 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.8 lb

Features

Performance Features of 5564-5520 Bearing

5564-5520 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 53,200 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Does 5564-5520 Bearing Resist Wear?

5564-5520 Bearing’s chrome steel construction provides excellent wear resistance, even under high stress.
The tapered roller design distributes loads evenly, minimising surface fatigue.
Its standard radial clearance options allow for flexibility in different operating conditions.
Regular lubrication further extends its service life, reducing maintenance needs.

Engineered for Precision: 5564-5520 Bearing

5564-5520 Bearing features precise dimensional tolerances, ensuring accurate performance in machinery.
The single row tapered roller design handles both radial and thrust loads efficiently.
With an ABEC-1 rating, it delivers consistent performance for industrial applications.
The open seal type allows for easy lubrication access when required.

Application

Industrial Uses of 5564-5520 Bearing
The 5564-5520 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

In automotive applications, 5564-5520 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The imperial sizing makes it a convenient choice for North American vehicle models.

For industrial fans and pumps, 5564-5520 Bearing’s open design allows easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear over time.

What Makes 5564-5520 Bearing a Preferred Choice?
5564-5520 Bearing stands out in conveyor systems due to its ability to manage both radial and thrust loads smoothly. The standard radial clearance offers flexibility for different installation needs.

In mining equipment, 5564-5520 Bearing’s robust design withstands high shock loads and harsh environments. Its ABEC-1 rating ensures consistent performance without over-engineering for most industrial uses.

Built for Heavy-Duty Use: 5564-5520 Bearing
5564-5520 Bearing excels in gearboxes and drivetrains, where its tapered rollers distribute stress evenly. The chrome steel rollers and rings provide long-lasting wear resistance.

For forestry machinery, 5564-5520 Bearing’s temperature tolerance (-30° to 110°C) ensures reliability in extreme weather. Its steel cage maintains alignment even under heavy vibration.

Automotive vs Aerospace: Applications of 5564-5520 Bearing
In automotive settings, 5564-5520 Bearing is ideal for axles and transmissions, balancing load capacity and compact design. The Timken interchangeability simplifies maintenance.

For aerospace ground support equipment, 5564-5520 Bearing’s precision handling of combined loads makes it suitable for tow tractors and loading systems. Its weight (4.8 lb) is manageable for frequent servicing.
