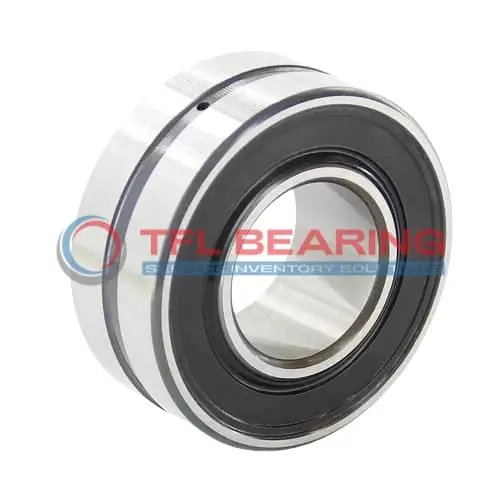

BS2-2222-2CS5W/C4GEM9 Double Row Spherical Roller Bearing

BS2-2222-2CS5W/C4GEM9 Double Row Spherical Roller Bearing

The BS2-2222-2CS5W/C4GEM9 is a double-row spherical roller bearing with a 110mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 128591 lbf and operates smoothly at speeds up to 1500 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing requires lubrication and works in temperatures from -30°C to 200°C, making it versatile for various conditions.

With a C4 radial clearance, it offers flexibility in high-load applications. This model is interchangeable with SKF bearings, ideal for heavy machinery or industrial equipment where reliability is key.

Weighing 7.6kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2222-2CS5W/C4GEM9
  • Brand TFL
  • Interchangeable SKF
  • Size 110 x 200 x 63 mm
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 63 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 126 mm
  • Shoulder/Recess Dia Of Outer Ring 183 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 128591 lbf
  • Static Radial Load 143878 lbf
  • Max Speed 1500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 7.6 kg

Features

How Is BS2-2222-2CS5W/C4GEM9 Bearing Engineered for Reliability?

BS2-2222-2CS5W/C4GEM9 Bearing features a double-row spherical roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability, even under high dynamic radial loads up to 128591 lbf.

The double-seal design protects against contaminants, making it suitable for harsh environments.
With a temperature range of -30° to 200°C, BS2-2222-2CS5W/C4GEM9 Bearing performs reliably in varied conditions.

Its C4 radial clearance allows for thermal expansion, ensuring smooth operation at high speeds up to 1500 rpm.
The steel cage maintains roller alignment, reducing wear and extending service life.

Application

Industrial Uses of BS2-2222-2CS5W/C4GEM9 Bearing
BS2-2222-2CS5W/C4GEM9 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads with ease.
The spherical roller construction allows for slight misalignment, making it ideal for rugged industrial environments.

In automotive applications, BS2-2222-2CS5W/C4GEM9 Bearing supports heavy-duty axles and gearboxes, providing reliable performance under high radial loads.
Its double seal design helps keep contaminants out, extending service life in demanding conditions.

For automation systems, BS2-2222-2CS5W/C4GEM9 Bearing ensures smooth operation in robotic arms and conveyor belts.
The C4 radial clearance offers flexibility in high-temperature environments, maintaining consistent performance.

BS2-2222-2CS5W/C4GEM9 Bearing is also found in wind turbines, where its durability and load capacity are crucial.
The chrome steel construction resists wear, even in harsh outdoor conditions.

In mining equipment, BS2-2222-2CS5W/C4GEM9 Bearing handles extreme loads and vibrations.
The lubrication groove design simplifies maintenance, reducing downtime in critical operations.
