Inner Rings IR10X14X12-IS1-XL

Inner Rings IR10X14X12-IS1-XL

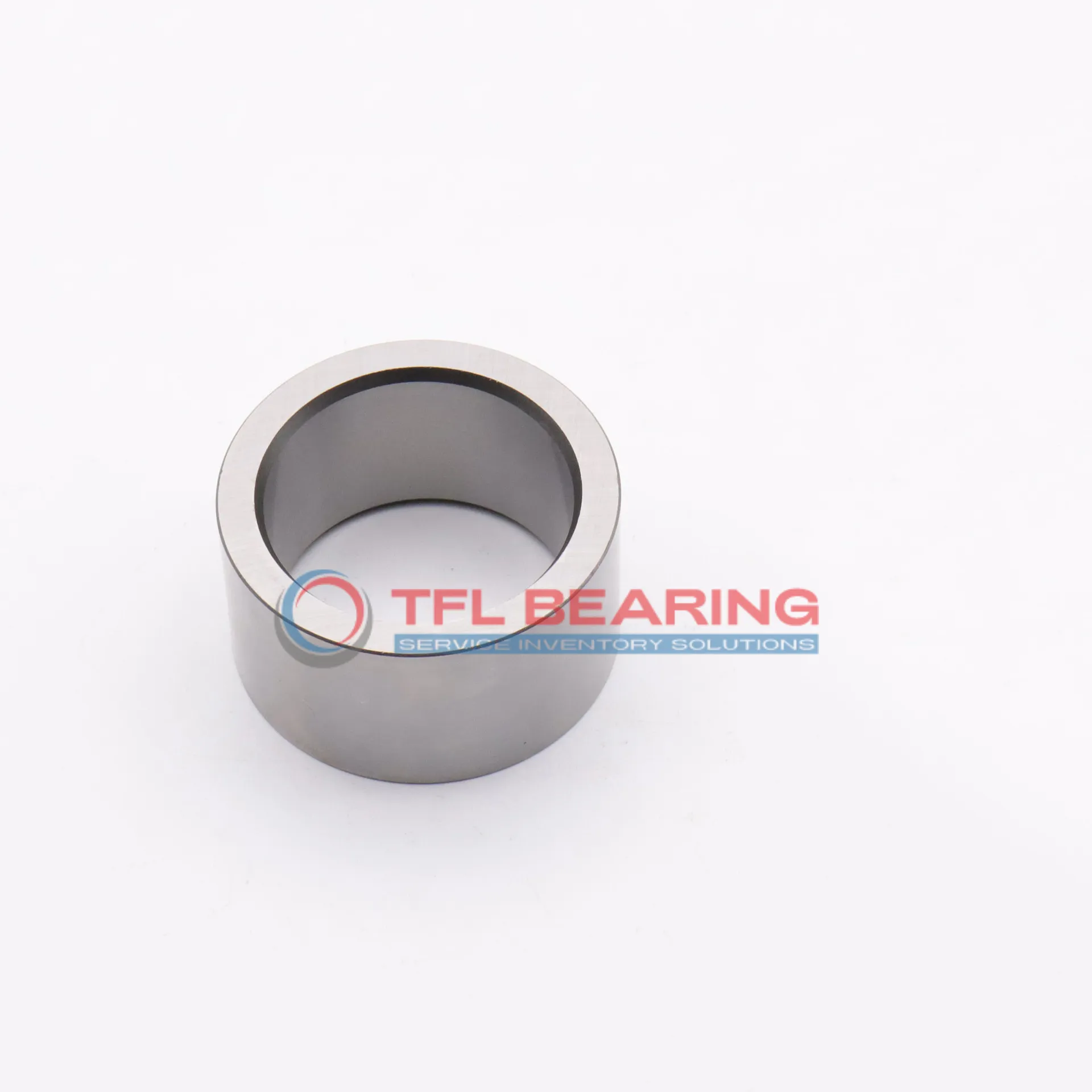

The IR10X14X12-IS1-XL is a needle roller bearing inner ring with a 10mm bore and 14mm outer diameter, crafted from sturdy chrome steel. Its compact width of 12mm makes it suitable for tight spaces.
Pre-lubricated for smooth operation, it features a single lubrication hole for easy maintenance. The design includes a small chamfer of 0.3mm to aid installation.
This model is compatible with INA bearings, offering a reliable replacement option. Ideal for applications like small gearboxes or compact machinery where space is limited.
Weighing just 7.3g, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR10X14X12-IS1-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR-IS1
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 14 mm
  • Outer Dia Tolerance -0.018mm to -0.004mm
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 7.3 g
  • Rmin 0.3 mm
Inner Rings IR10X14X12-IS1-XL dimension drawing
Download DWG Download PDF

Features

How Is IR10X14X12-IS1-XL Bearing Engineered for Reliability?
IR10X14X12-IS1-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precise bore and outer diameter tolerances ensure a snug fit, enhancing performance in needle roller applications.
The lubrication hole maintains smooth operation, reducing friction and extending service life.
With a compact design and low weight, it is ideal for space-constrained applications.

Application

Key Fields for IR10X14X12-IS1-XL Bearing
IR10X14X12-IS1-XL Bearing is commonly used in compact industrial gearboxes, where its needle roller design saves space while handling high radial loads. The chrome steel construction ensures durability in demanding environments.
In automotive applications, IR10X14X12-IS1-XL Bearing fits well in transmission systems and small electric motors, thanks to its precise metric dimensions. The lubricated design reduces friction, extending service life.
For automation equipment, IR10X14X12-IS1-XL Bearing works smoothly in robotic joints and linear guides, where low-profile components are essential. Its single lubrication hole simplifies maintenance in tight spaces.
In household appliances like power tools, IR10X14X12-IS1-XL Bearing provides reliable performance with minimal noise. The lightweight design (7.3g) helps keep devices portable and efficient.
