TS (Single Row Tapered Roller Bearings) (Imperial) 598W-592XS

TS (Single Row Tapered Roller Bearings) (Imperial) 598W-592XS

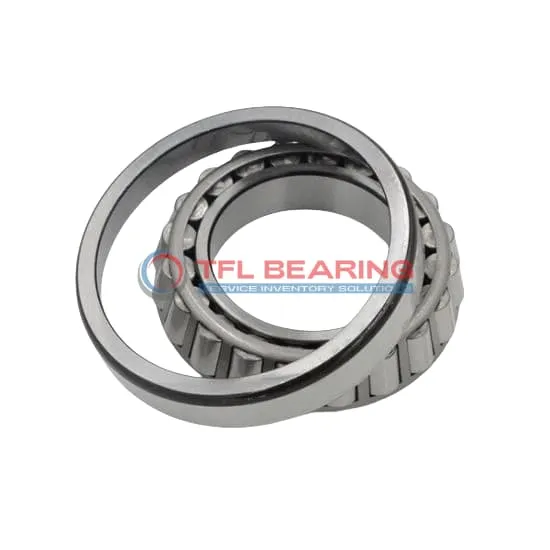

The 598W-592XS is a single-row tapered roller bearing with a 3.625″ bore and 5.8125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 48600 lbf radially and 9530 lbf thrust, making it versatile for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where combined loads are common.

Weighing 4.8 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

The standard radial clearance and ABEC-1 rating ensure consistent performance. Its tapered roller design provides stable support for both radial and thrust loads.

Perfect for equipment requiring long-lasting, high-capacity bearings. The chrome steel construction resists wear, extending service life.

Easy to maintain with standard lubrication, it’s a practical choice for demanding environments. Suitable for use in gearboxes, axles, or heavy machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 598W-592XS
  • Brand TFL
  • Interchangeable Timken
  • Size 3.625" x 5.8125" x 1.4063"
  • Bore Dia 3.625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.8125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.43"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0312"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4063"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.64"
  • Cone Backface Backing Diameter 4.21"
  • Cup Frontface Backing Diameter 5.63"
  • Cup Backface Backing Diameter 5.24"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 598W
  • Cup Part Number 592XS
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 71600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.8 lb

Features

How Does 598W-592XS Bearing Handle Combined Loads?

598W-592XS Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 48,600 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Why Choose 598W-592XS Bearing for Precision Tasks?

598W-592XS Bearing features precise tolerances, with bore and outer diameter tolerances within +0.001″ to 0.
Its tapered roller design ensures smooth operation under combined loads, ideal for precision applications.
The chrome steel construction provides durability, while the steel cage enhances stability.
With ABEC-1 rating, it balances accuracy and cost-effectiveness.

Engineered for Reliability: 598W-592XS Bearing

598W-592XS Bearing’s single-row construction simplifies installation and maintenance.
The chrome steel rollers and rings resist wear, ensuring long-term performance.
Its dynamic thrust rating of 9,530 lbf makes it suitable for heavy-duty applications.
The standard radial clearance options provide flexibility for different operational needs.

Application

Industrial Uses of 598W-592XS Bearing
The 598W-592XS Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 598W-592XS Bearing supports axles and wheel hubs, providing reliable performance under both radial and thrust loads. The inch sizing makes it compatible with many American vehicle models.

For industrial conveyor systems, 598W-592XS Bearing’s open design allows for easy lubrication, extending its service life in high-load scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

Where Is 598W-592XS Bearing Used?
You’ll often find 598W-592XS Bearing in agricultural machinery, like tractors and harvesters, where its robust design handles rough terrain. The tapered rollers distribute loads evenly, reducing wear.

In manufacturing plants, 598W-592XS Bearing is ideal for gearboxes and pulleys, thanks to its high dynamic load capacity. The standard radial clearance ensures smooth operation even under varying conditions.

Built for Heavy-Duty Use: 598W-592XS Bearing
The 598W-592XS Bearing excels in forestry equipment, such as log splitters, where its combined load capability is essential. Its chrome steel rollers resist deformation under heavy stress.

For railway applications, 598W-592XS Bearing provides reliable performance in bogies and couplings. The ABEC-1 rating ensures consistent precision, even in high-vibration environments.

Automotive vs Aerospace: Applications of 598W-592XS Bearing
In automotive settings, 598W-592XS Bearing is a go-to for drivetrains, offering durability and ease of maintenance. Its inch measurements align with many US-made components.

For aerospace ground support equipment, 598W-592XS Bearing handles heavy loads with precision. The steel cage and chrome steel rollers ensure long-term reliability in critical operations.
